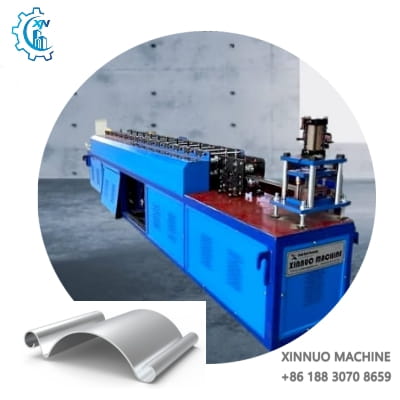

shutter rolling machine

Shutter Slat Drawing Machine | High-Efficiency and Automated Production Solution

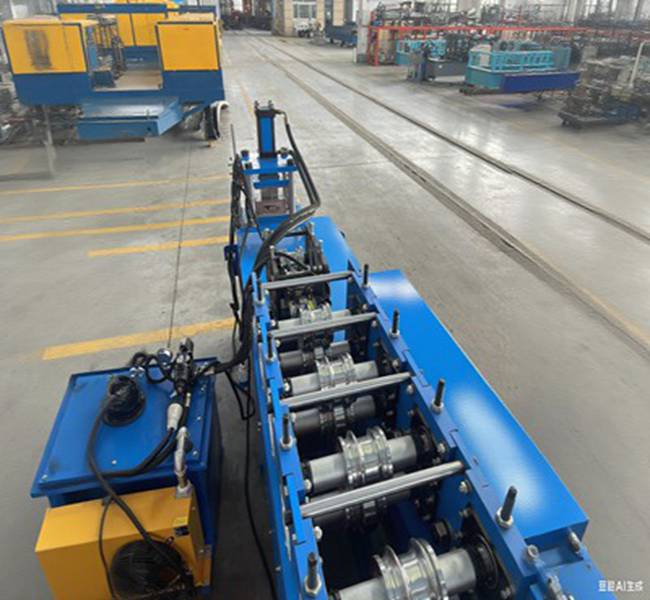

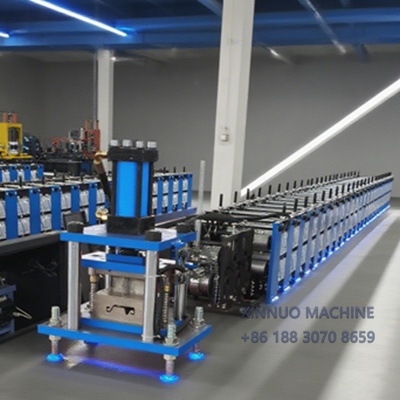

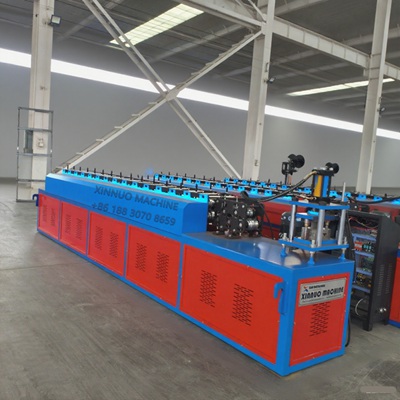

A shutter slat drawing machine is a specialized roll forming machine used to produce slat profiles for automatic shutter systems. This machine enables the rapid production of high-precision, aesthetically pleasing shutter slats from materials such as galvanized sheet metal, aluminum, or painted steel.

Project: Door Frame Roll Forming Machine

Material: Galvanized coil, galvanized steel

Material thickness: 1.0-1.5 mm

Forming speed: 10-15 m/min

Main Power: 11 kW

Machine length: Approx. 10 m

Production Line GW 6.5T

Number of Stations: 18

Shaft Diameter: 65 mm

Main Shaft Material: 45# Grade Steel, Heated and Quenched

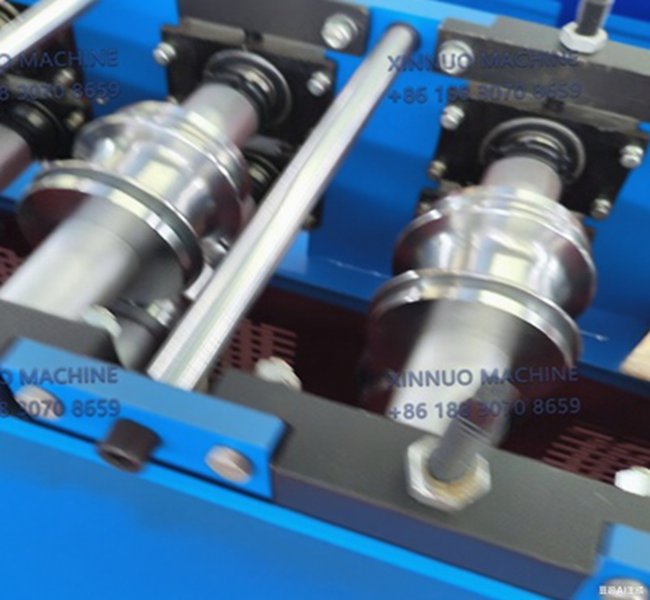

Pulley Material: 45# Grade Steel, Hard Chrome Plated, Heated and Quenched

Drive Type: 2.5 cm Chain

Frame Bracket: Pilar Station

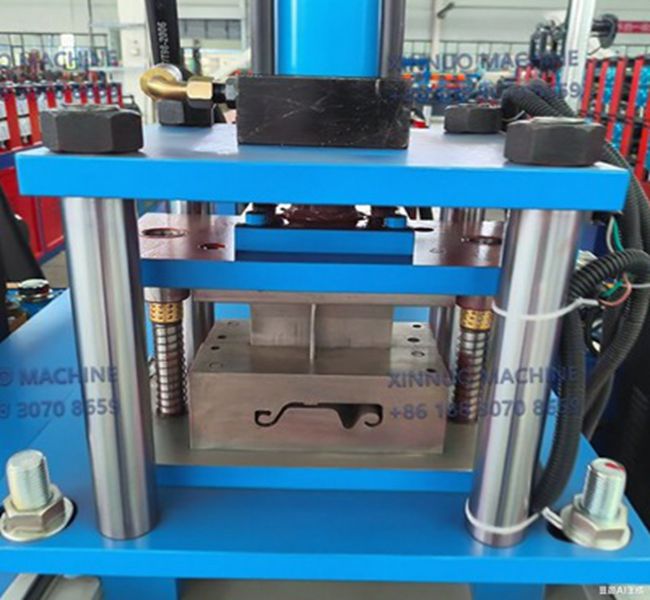

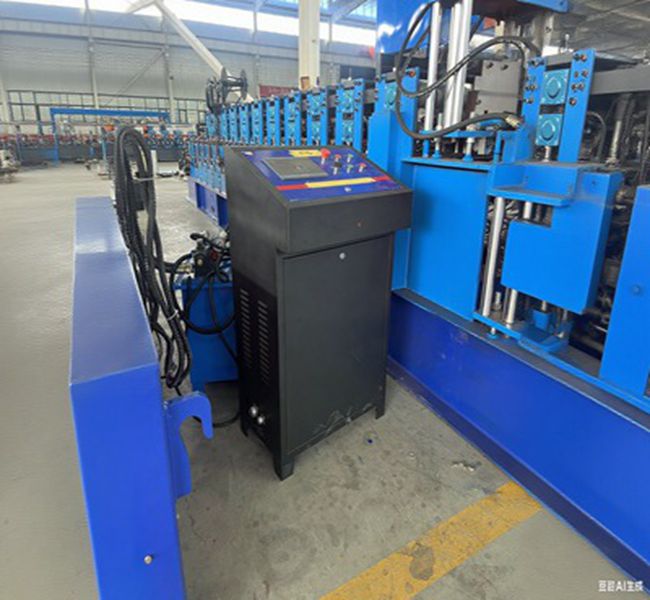

The shutter slat drawing machine, equipped with a PLC control system, integrates automatic feeding, shaping, and cutting processes. This saves time and standardizes product quality during production. It can be customized to meet various slat widths, thicknesses, and designs.

Shutter systems are widely used in store windows, warehouse entrances, garage doors, and industrial facilities. Therefore, the slatted production line is critical for producing durable products that meet safety and aesthetic expectations.

Our company has extensive experience in shutter slat drawing machines, offering customers customized solutions and competitive pricing. If you're looking for high quality, low maintenance, and long-lasting performance, contact us.

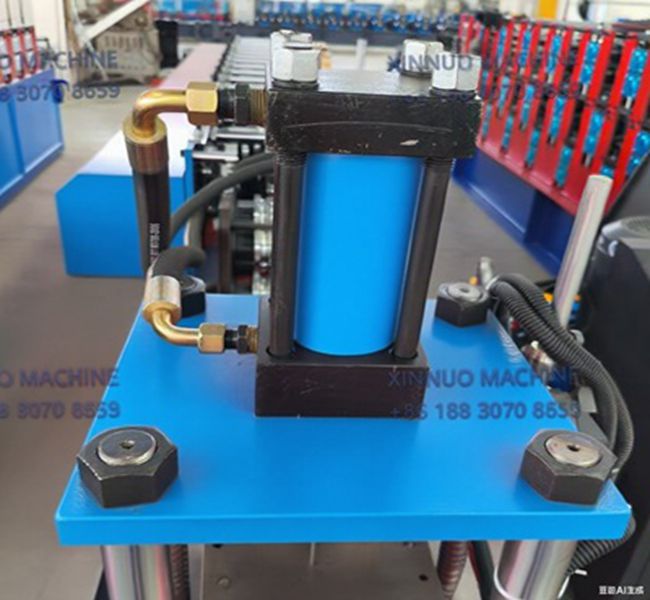

Xinnuo's equipment is CE and ISO certified and features robust construction and internationally renowned hydraulic and electronic control systems. The entire line is stable and easy to maintain, making it suitable for long-term, high-density production.

Our roller door forming machines have been exported to many countries in Asia, the Middle East, Africa, and Europe, earning a high reputation for their quality and competitive prices.

If you are planning to build a new roller door forming machine facility or expand an existing production line, please contact us for a customized solution and competitive pricing.
