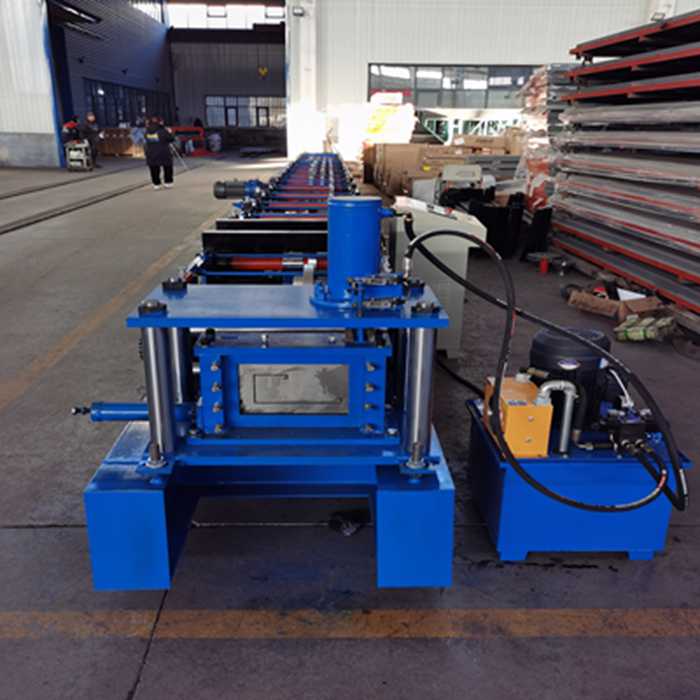

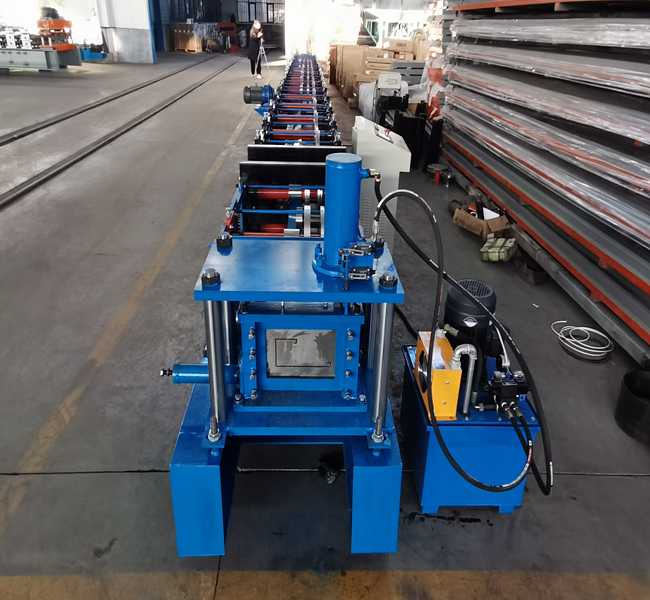

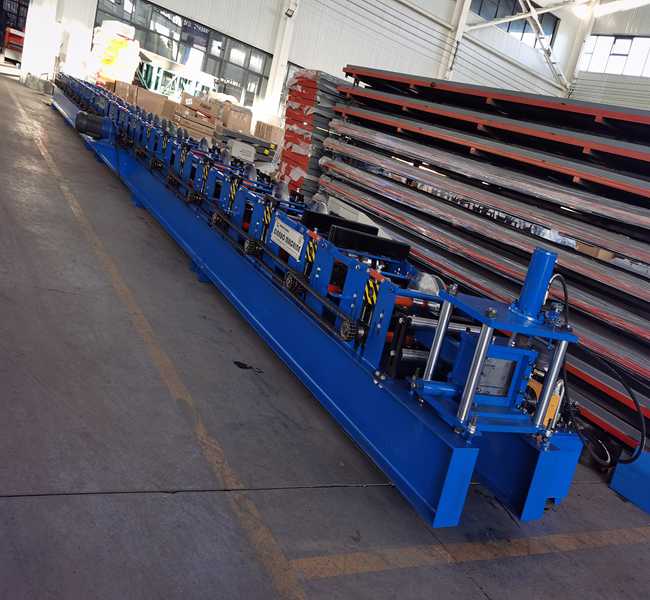

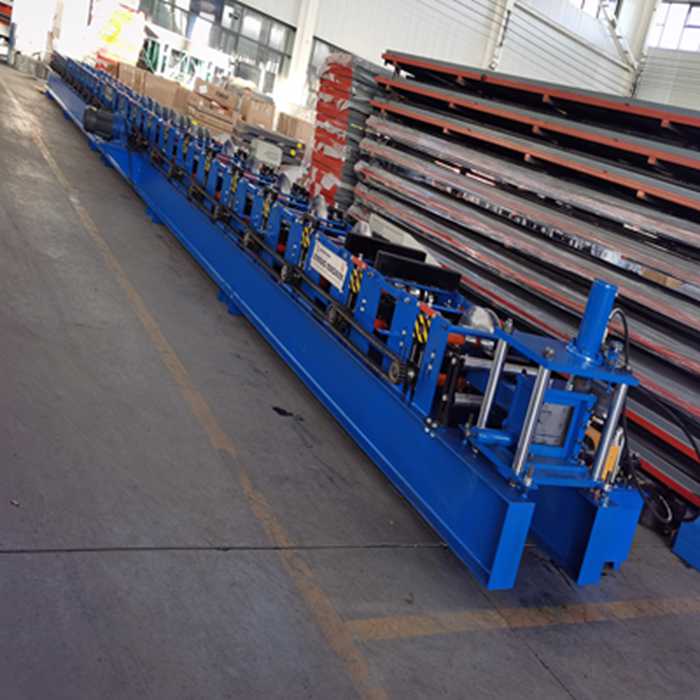

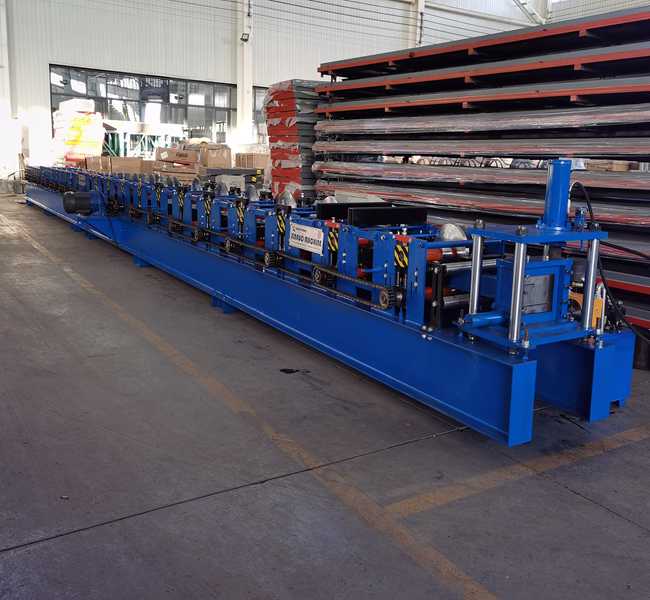

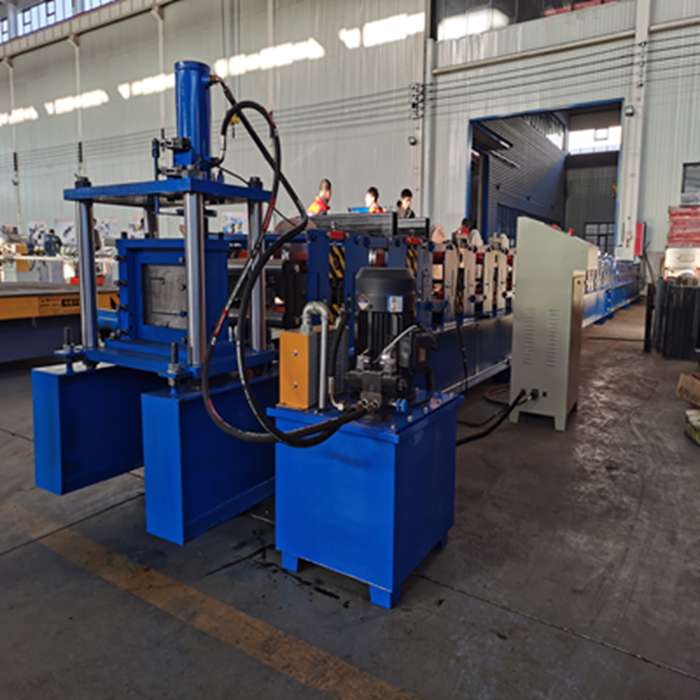

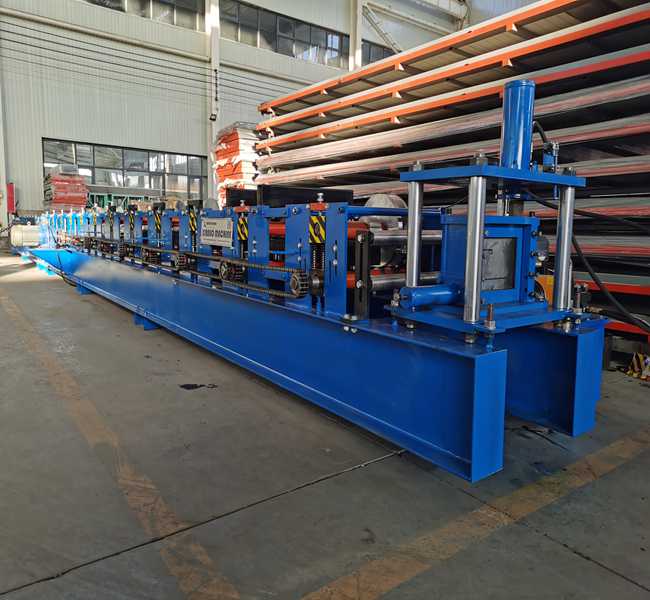

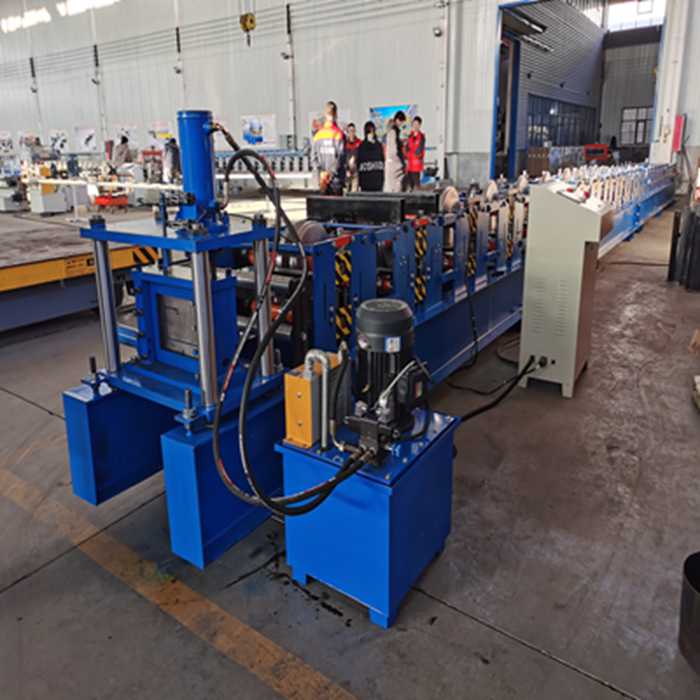

Steel keel roll forming machine

The Light steel keel  forming machine is an automated cold bending equipment specifically designed for prefabricated buildings. It uses galvanized steel strips as raw material, featuring integrated continuous rolling, punching, and precision cutting processes. Equipped with an intelligent PLC control system, it ensures stable operation and high-forming accuracy, producing flat and burr-free finished products. With simple operation and lower energy consumption, the machine can adapt to various specifications of C-shaped and U-shaped light steel dragon bones. Widely applied in ceiling, partition wall, and steel structure construction fields, it efficiently supports large-scale processing and production of building materials.

Raw material thickness: 0.8-1.2mm (customizable)

Main motor power: 7.5kW

Hydraulic pump station motor power: 5.5kW

Operating speed: 1-30m/min

Voltage: 220V/380V/415V/60Hz/Phase (Customizable)

C-type keel is a U-shaped metal material with protrusions that facilitates the fixation of various lamps and other decorative materials. It is a bracket structure for ceiling or interior wall decoration, so the application scenarios of C-type keel are relatively wide. High speed C-type keel machine memorial archway has beautiful structure, adopts programmable PLC control system, frequency converter speed regulation, simple operation, humanized servo shearing, working speed of 70 meters per minute, high speed and stable cutting without deformation.

This device has the characteristics of accurately controlling the size of the board, the accuracy of the pressure plate, and the rolling speed. It is equipped with a fully automatic packaging and stacking line for automatic production, including reverse locking, bundling, and stacking, which saves time, effort, and labor.

Through multi-purpose and automated production, the keel machine can reduce the equipment investment cost and production site occupation of enterprises, while improving material utilization and reducing production costs.

PLC control cabinet

① PLC: Adopting Shilin high-precision PLC electronic device.

② Inverter: Delta heavy-duty inverter, operates efficiently and stably.

③ Control components: Schneider Electronics, with long service life and low failure rate.

④ Touch screen control: using Kaite to input production data and automatically complete production requirements.
