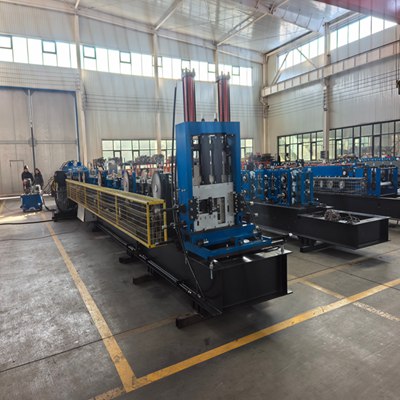

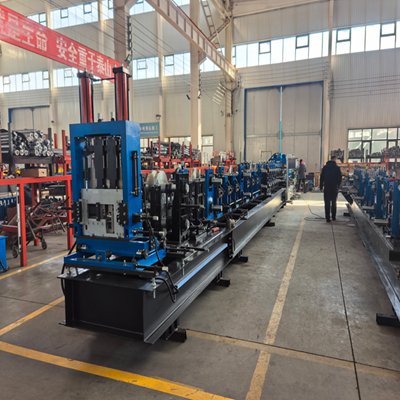

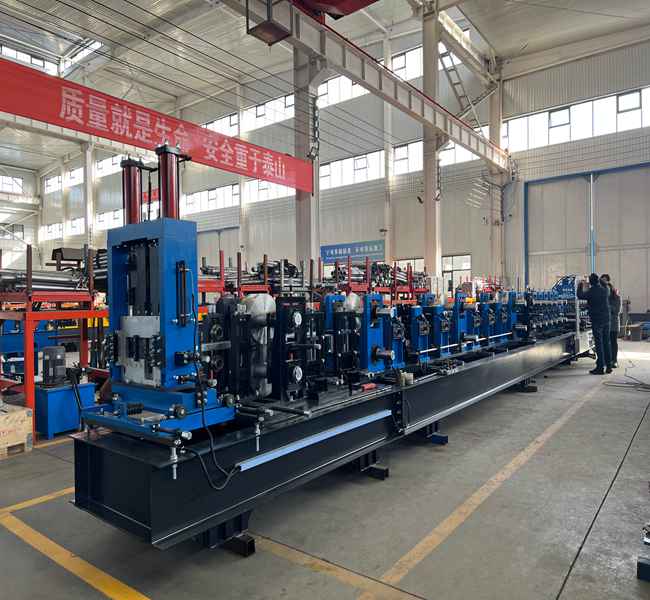

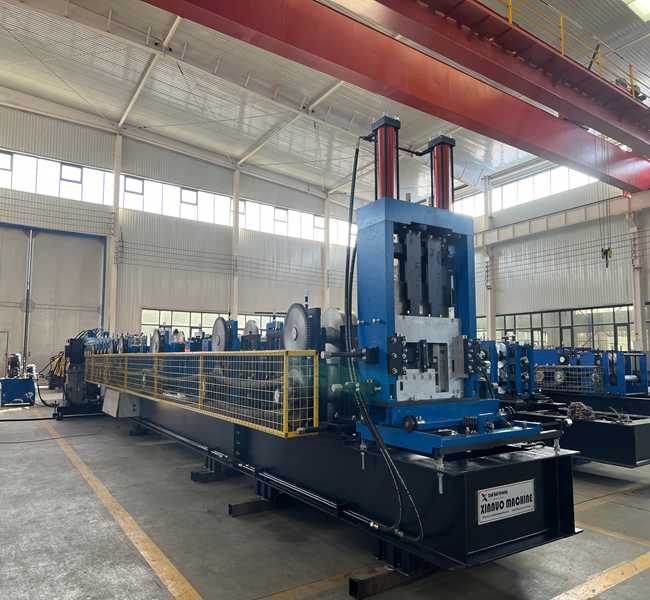

C shape to Z shape purlin machine

Suitable for processing: Galvanized steel strip/cold rolled steel strip

Cylinder: 16 rows (before and after straightening, excluding feeding wire)

Dimensions: 11 x 1.3 x 1.5 m

Engine power: 11 kW x 2

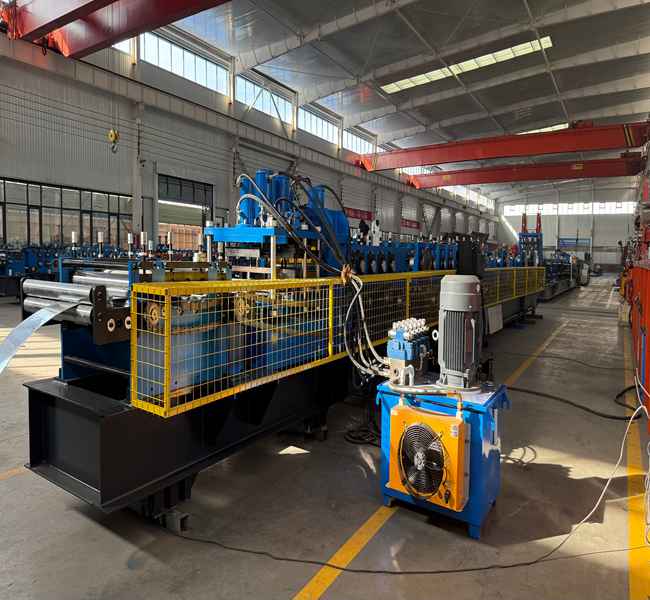

Pumping station motor: 7.5 kW

Sheet thickness: 1.0mm to 3.0mm

Efficiency: 10-15 m/min

Cutting knife material: Cr12 MoV hardened at 58°C-60°C

Cylinder diameter: 85 mm

Weight: About 8,500 kg

Machine Structure: 450 H Input

Processing Accuracy: within 1.0mm

Side Panel: 20 mm

Side Panel: 2 inch

Voltage: 380V 50Hz 3 phase or as per customer request

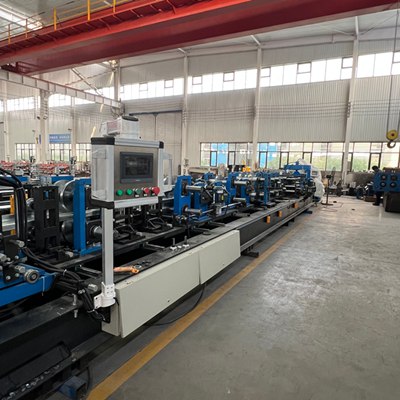

Control System: PLC(Delta) or as per customer request

Frequency System: Delta or as per customer request

Driving Mode: Motor Driver

Touch Screen: Delta or as per customer request

Hadde Material: GCr15 (including steel), heat treated, hard chrome plating

Length Tolerance: ±2mm

Cutting Type: Pipe cut to desired length

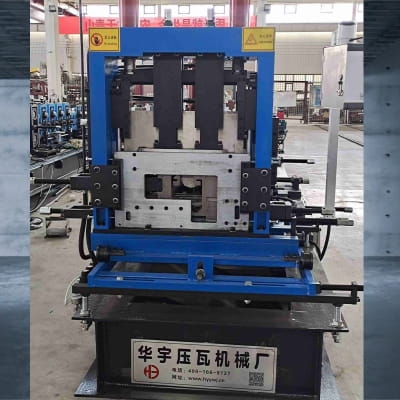

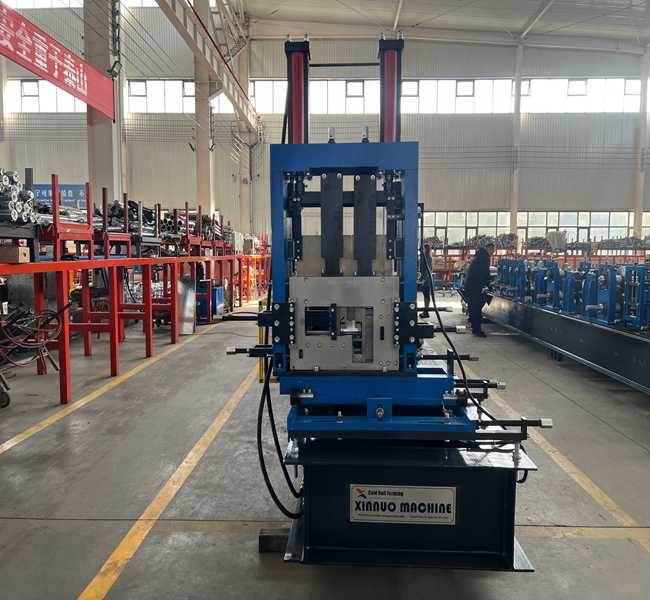

Hydraulic Cutting Machine: One cylinder on both sides

CZ beam roll forming machine is a cold bending equipment that can automatically convert C and Z type beams. It is widely used in construction areas such as steel structure workshops, warehouses and pavilions. This machine has features such as automatic width adjustment, fast model change, easy operation and high forming accuracy. Thanks to the PLC control system, fully automatic production is realized and operating efficiency is greatly increased.

CZ beam roll forming machine is equipped with PLC control system; This ensures that the production process is automatic, precise and stable. The hydraulic cutting system guarantees clear and smooth cutting of each profile. It provides cost advantage to the user with high production speed and low energy consumption. Robust body structure provides long-lasting use. Our factory produces customizable CZ beam machines in various sizes and designs.

CZ beam roll forming machine Packing and Freight

1. Bare, waterproof fabric and stacked wood. Imported computer control system, packed with waterproof fabric and carton.

2. This production line is maintained free of charge for 24 months. When the machine is used in China, we do the installation and debugging for free; If used abroad, we will send a professional technician to troubleshoot. Buyers must pay all the fees of technicians traveling abroad.

3. All parts in the roll forming machine are maintained free of charge throughout the service life. Replacement costs such as new part and express fee of the damaged part within 24 months are covered by our company. We also provide free maintenance of broken parts after more than 24 months. However, the express fee for the shipment of new parts must be paid by the recipient.
