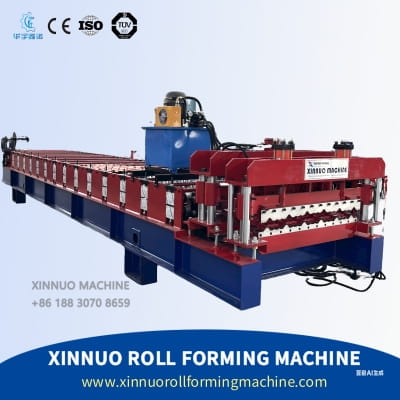

Roofing metal forming machine

The glazed tile pressing machine can be classified according to the degree of automation and structural form.

According to the degree of automation, there are mainly semi-automatic glazed tile pressing machines and fully automatic glazed tile pressing machines. Semi automatic models are usually equipped with ordinary feeding racks, which require manual assistance for coil replacement and some auxiliary operations. The equipment cost is relatively low and suitable for small and medium-sized processing plants. The fully automatic model is equipped with a hydraulic automatic feeding rack, automatic feeding system, and advanced PLC control system, which can achieve fully automated production from coil feeding to finished product cutting, with high efficiency and accuracy, suitable for large-scale industrial production

828 type glazed tile machine

Forming rows: 9 rows

Feed thickness: 0.2-0.8mm

Feed width: 1000-1250mm

Forming speed: 3-6m/min

Shear accuracy:+1-2mm

Main motor power: 3-4KW

Hydraulic station power: 3KW

Roll material: 45 # steel plated with hard chrome

Cutting blade material: Cr12

The color steel glazed tiles produced by the glazed tile pressing machine have a wide range of application scenarios. In terms of building roofs, it is commonly used for roof covering in villas, resorts, hotels, antique gardens and other buildings, with good waterproof, thermal insulation and decorative effects. In terms of building walls, it can be used for exterior wall decoration of various buildings, replacing traditional tiles or stone, which is both beautiful and lightweight. In addition, due to its high strength, fast installation, and low cost, color steel glazed tiles are widely used in the roof and wall panels of large-span buildings such as steel structure factories, sports halls, exhibition halls, cinemas, etc
