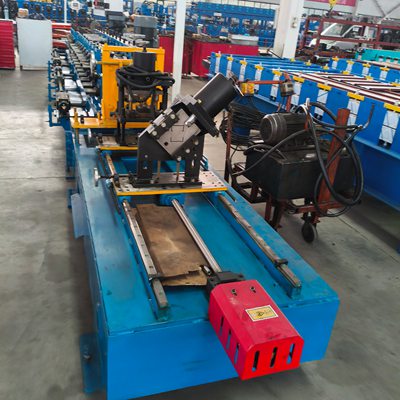

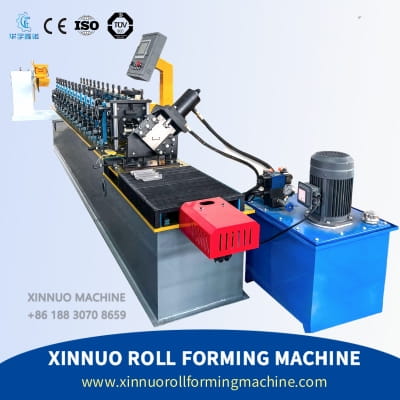

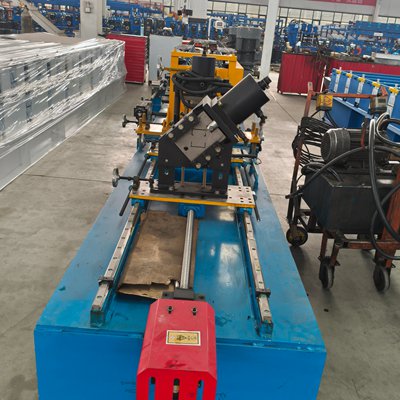

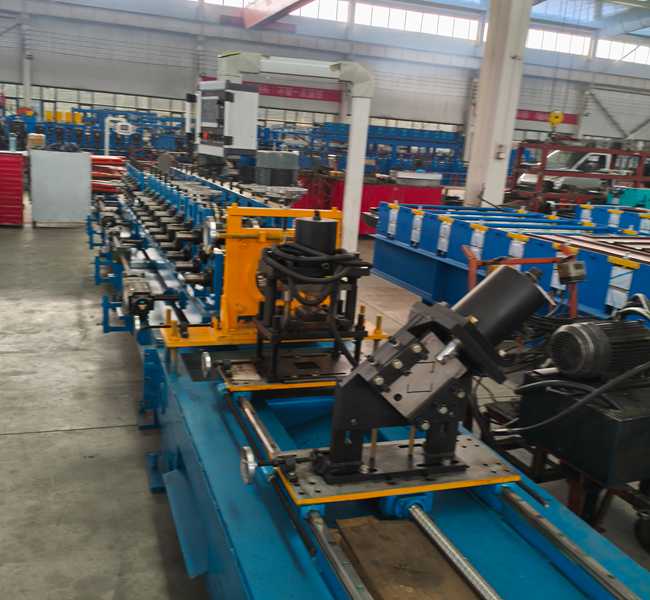

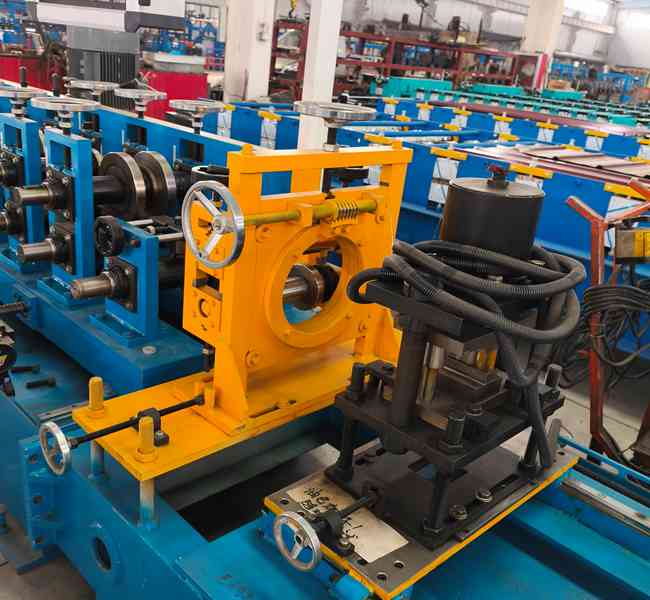

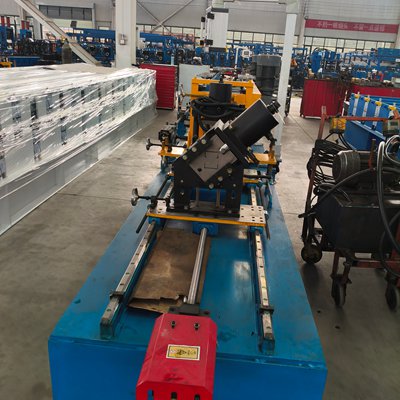

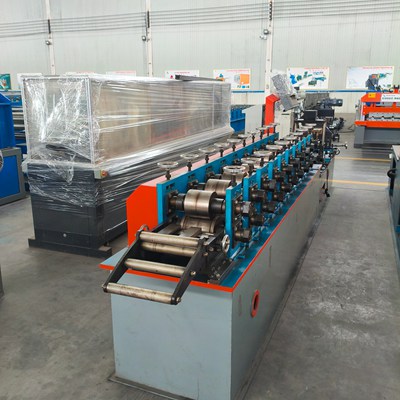

High speed light steel keel forming machine

1 set steel keel machine=5 workers' efficiency! 30-60 meters/minute, the mass production of ceiling keel relies on it!

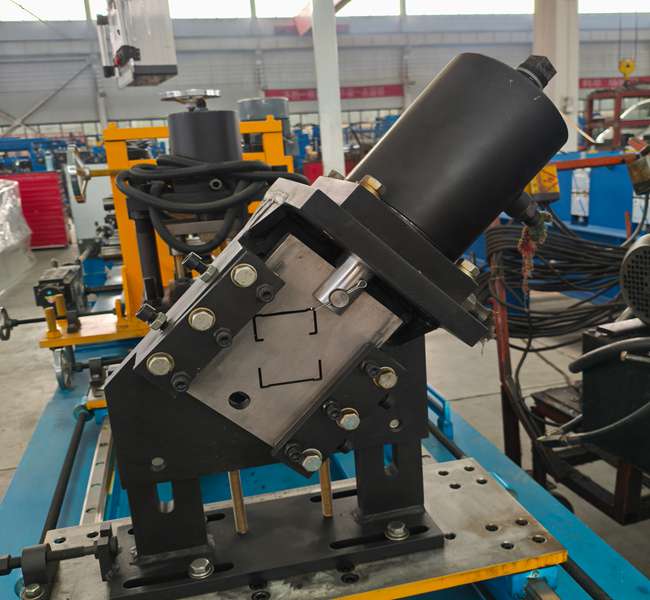

Driven by servo motors, it can produce 30-60 meters of keel per minute, which is 5-8 times more efficient than traditional manual molding. Through continuous rolling technology, processes such as cutting, punching, folding, and reinforcing can be completed in one go, reducing secondary processing. It is also equipped with PLC controlled fixed length cutting and automatic palletizing to further improve production efficiency.

Equipped with a precision guidance system, the positioning accuracy of the keel slot and connection hole can reach ± 0.2mm, ensuring a tight fit between the main and auxiliary keels during later installation. Can ensure high precision of products in complex flexible production such as multi specification automatic changeover and cutting.

The servo system is 30% -40% more energy-efficient than traditional hydraulic systems, equipped with sensors for real-time monitoring of roll pressure and temperature, and has fault self diagnosis function. It automatically stops and alarms when abnormal, ensuring stable operation of the equipment.

Through multi-purpose and automated production, the keel machine can reduce the equipment investment cost and production site occupation of enterprises, while improving material utilization and reducing production costs.

Automatic high-speed keel forming machine is widely used in building construction, factory building partition keel and other construction fields.

Material thickness: 0.8mm

Molding process: 20 molding processes

Forming speed: 50-60m/min

Material: Galvanized sheet, cold-rolled sheet

Material strength: 275-400Mpa

Drive mode: Chain wheel drive

Motor power: 11KW

Cutting blade material: Made of Cr12Mov heat-treated material

Machine base specification: according to the factory standard configuration

PLC control cabinet

① PLC: Adopting Shilin high-precision PLC electronic device.

② Inverter: Delta heavy-duty inverter, operates efficiently and stably.

③ Control components: Schneider Electronics, with long service life and low failure rate.

④ Touch screen control: using Kaite to input production data and automatically complete production requirements.
