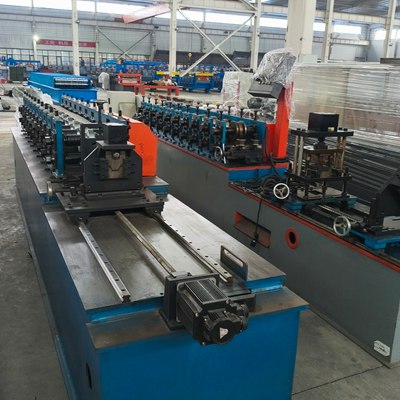

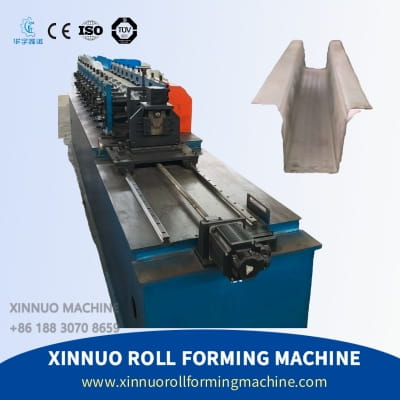

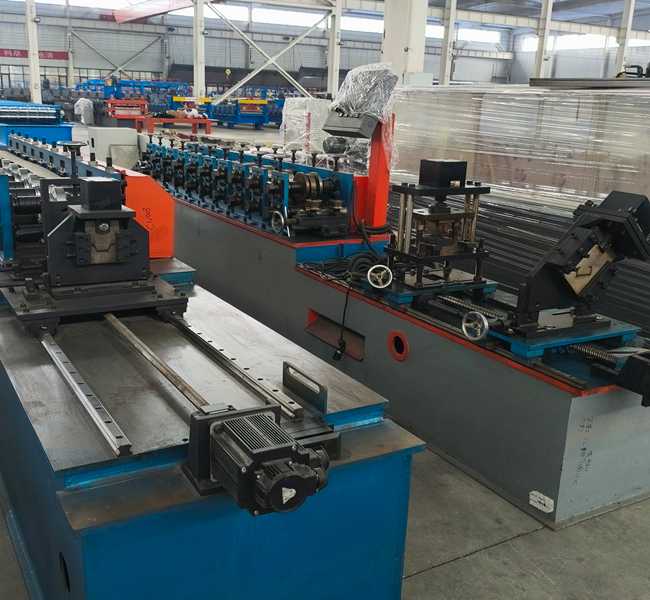

hat profile stel forming machine

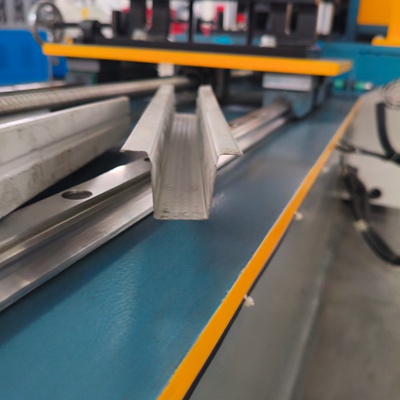

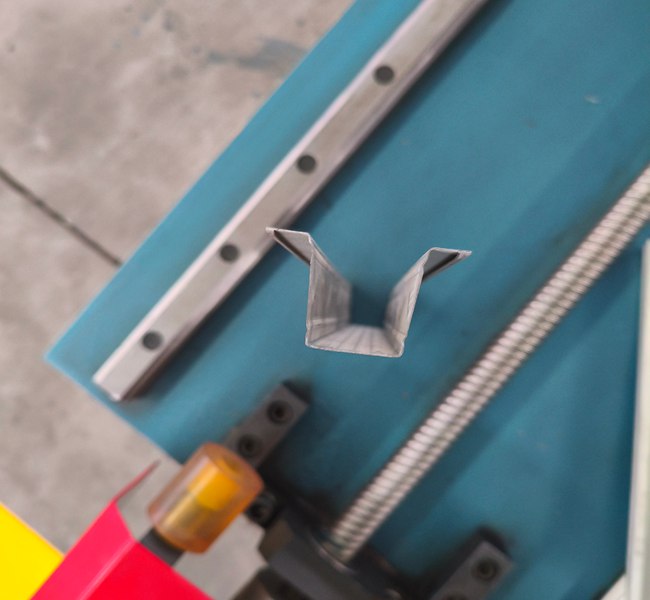

A keel forming machine is used to produce keel series wall support keels, and the finished product is a partition wall keel. It is widely used for partition walls in various types of indoor buildings such as factories, office buildings, offices, warehouses, shopping malls, and supermarkets.

Material thickness: 0.35-0.6mm

Forming stages: 12 forming passes

Production speed: 0-120 meters/minute

Drive method: Motor driven, gear and chain transmission

Motor power: 11kw, variable frequency speed control

Cutter material: Cr12Mov, heat treated

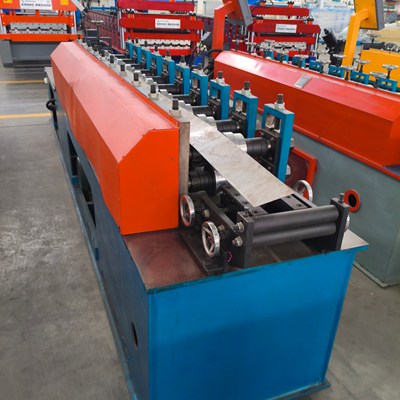

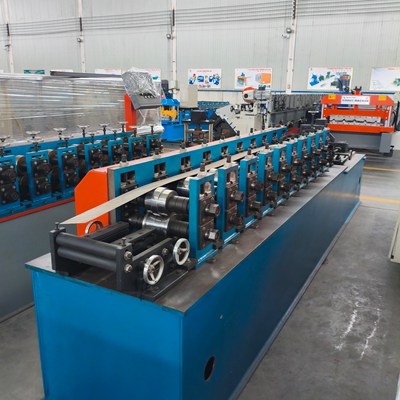

Roller Assembly

① Main shaft diameter: φ40mm, 40# round steel.

② Roller material: Heat treated, precision machined, hard chrome plated, and mirror polished.

③ Roll forming: The process of forming the material coil through successive rolling stages.

"Cutting after forming"

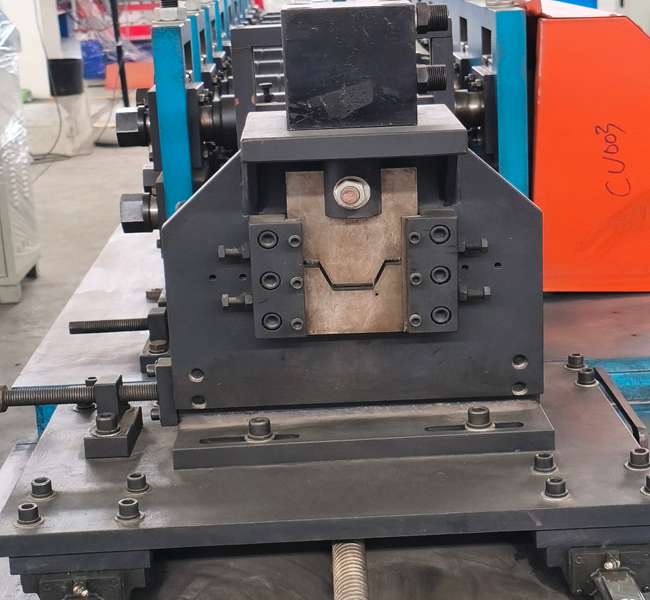

① Hydraulic cylinder: Hydraulic oblique shearing device, longer service life.

② Cast iron blade holder: Significant shock absorption effect and strong impact resistance.

③ Blade material: Cr12Mov, shearing life exceeding 1 million times.
