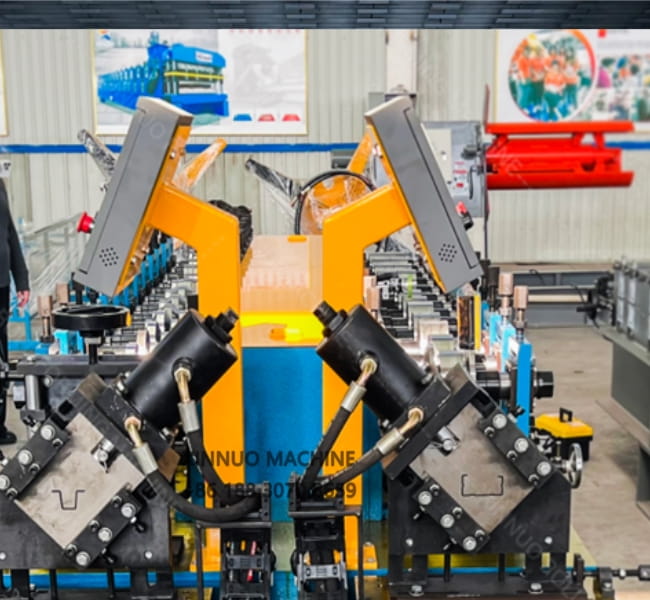

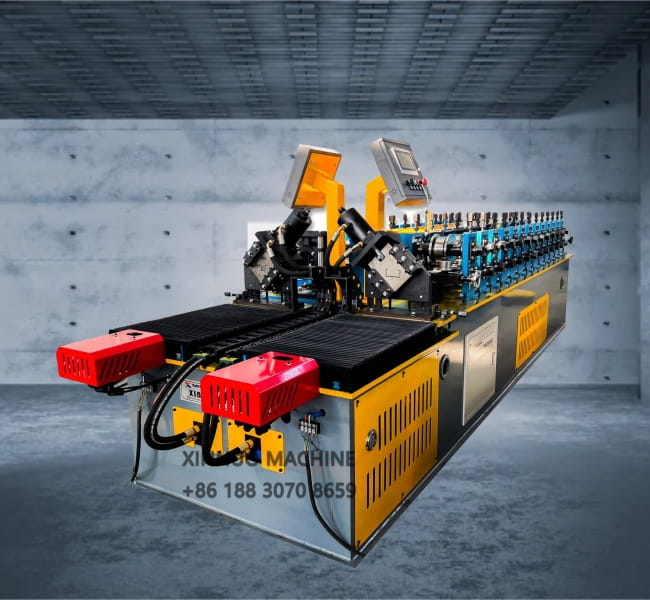

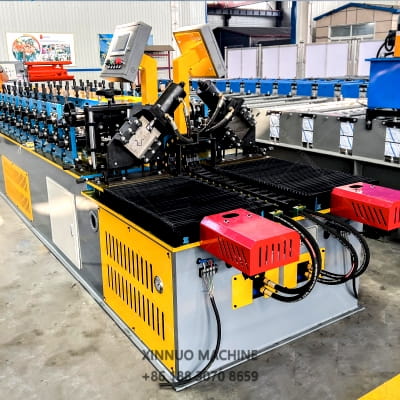

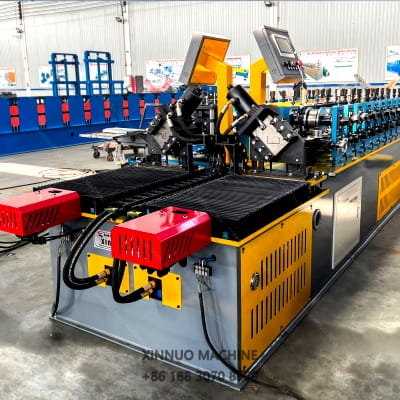

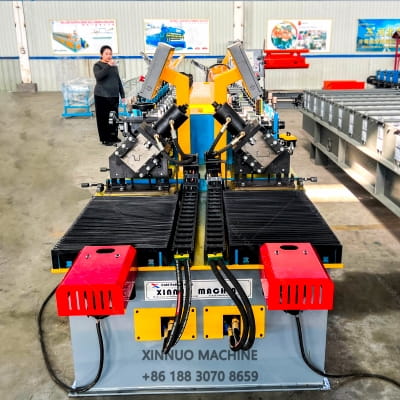

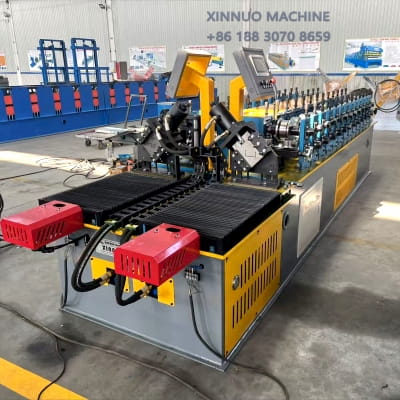

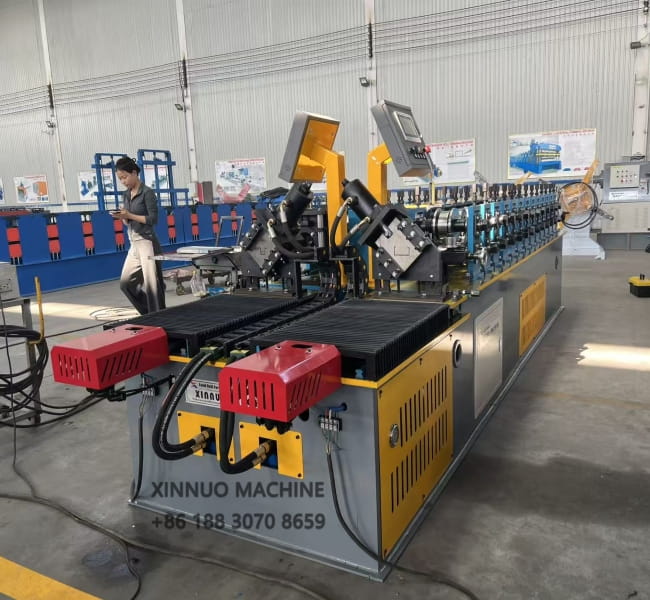

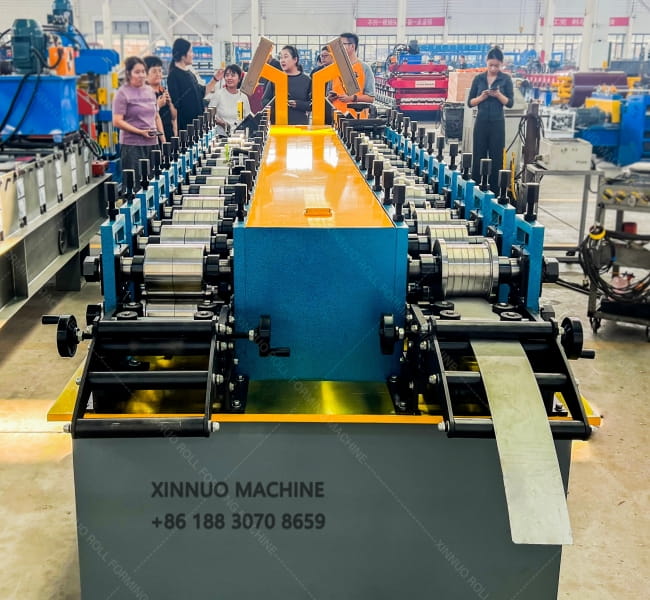

light steel keel roll forming machine

Double-row keel machines typically utilize a dual-row transmission, enabling high-precision mold changeover and forming operations, ensuring long-term quality assurance.

Double-row keel machines can produce a wide range of keel specifications, integrating the production of keels for various sizes, from walls to floors, and from low-rise to multi-story structures, into a single machine. They can produce a variety of product types, including nail holes, through-holes, and combination holes, allowing users to flexibly produce a variety of specifications. Width and height can be adjusted freely, and plate thickness can be greatly adjusted.

C-Type Keel Forming Machine Technical Parameters

1. Sheet Thickness: 0.6-1.25mm

2. Operating Speed: 0-25m/min, Adjustable

3. Forming Speed: 0-25m/min, Adjustable

4. Cutting Speed: 0-25m/min

5. Hydraulic Motor Power: 7.5kW

6. Shaft Material: Heat-treated 45Cr

7. Number of Forming Rows: 13

It adopts fully automatic computer control. Workers only need to input the plate data into the computer controller and start automatic production with one button. It will automatically cut after reaching the set length. The cutting size is accurate and the error range is small, which greatly reduces manual operation, labor intensity and labor costs.

It can handle a wide range of raw materials, from galvanized steel strips of varying thicknesses to steel plates of specialized materials, perfectly processing them to meet diverse customer requirements for keel strength and material quality.

By utilizing a single machine for multiple functions and automating production, the double-row keel machine can reduce equipment investment costs and production space requirements for businesses, while also improving material utilization and reducing production costs, ultimately delivering greater economic benefits.

Hebei Xinnuo Tile Pressing Machinery Co., Ltd. is located in Botou City, Hebei Province, a famous casting city. It specializes in the production of composite board machines, C-shaped steel machines, angle forming machines, double-layer color steel glazed tile machines, high-altitude tile pressing machines, and floor decking machines. Users in need are welcome to come and purchase. All Xinnuo employees welcome your arrival!
