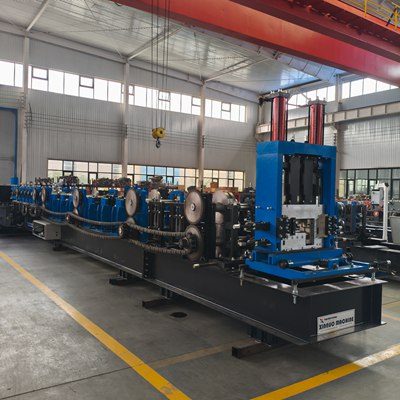

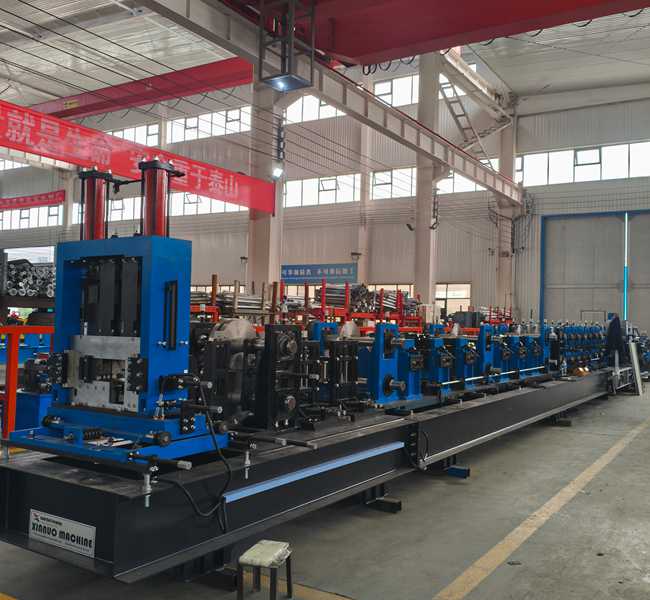

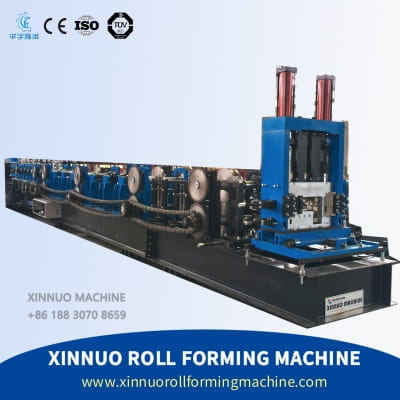

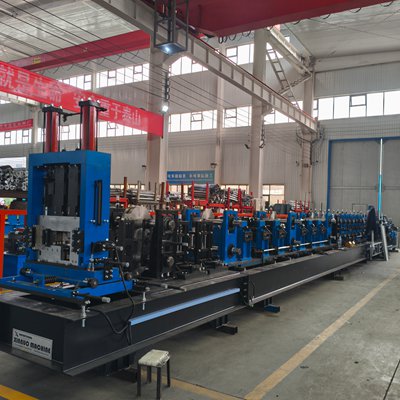

CZ purlin machine

The purlin products produced by the machine are mainly used in the main structure of large and medium-sized industrial civil buildings, roof bearing and wall plane support.

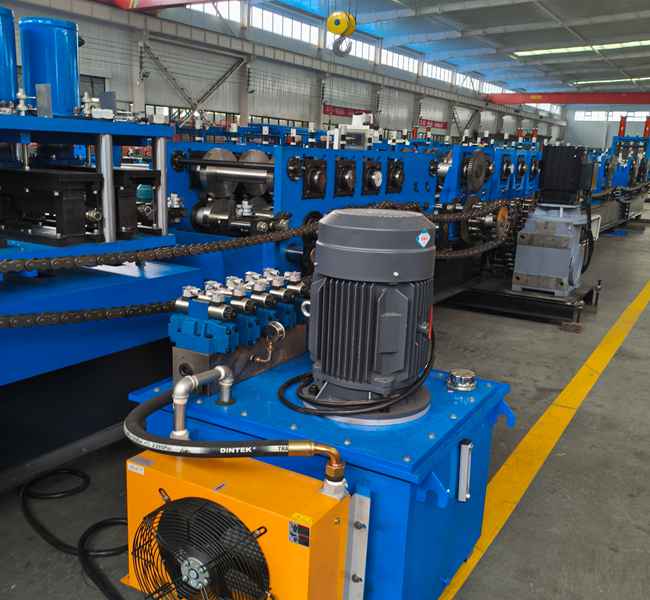

Automatic CZ purlin production equipment is mainly composed of decoiler, leveling device, punching device, cutting after forming device , hydraulic pump station, computer control system, etc.

The machine can be automatically fixed length cutting, automatic punching, a good degree of automation, quick and easy to use.

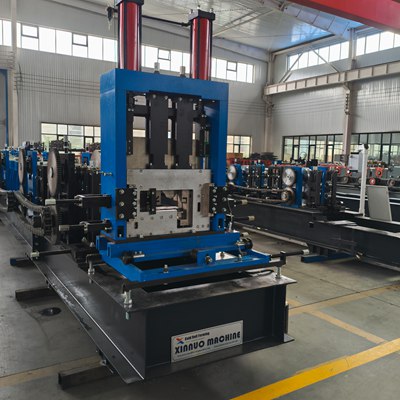

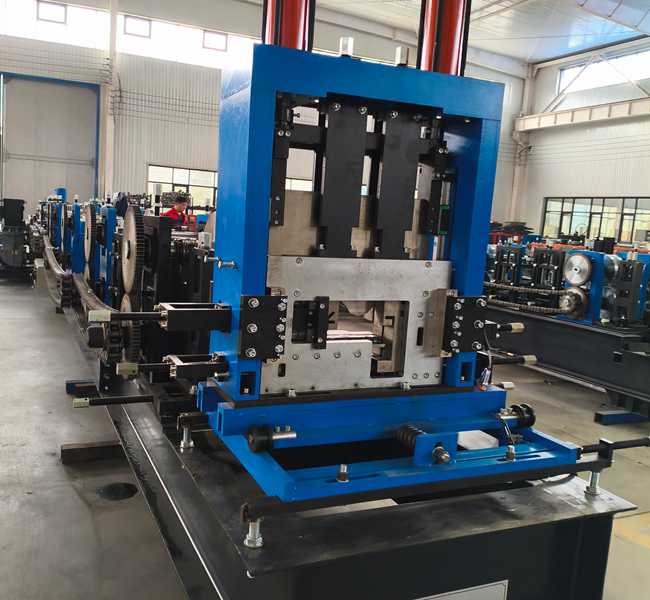

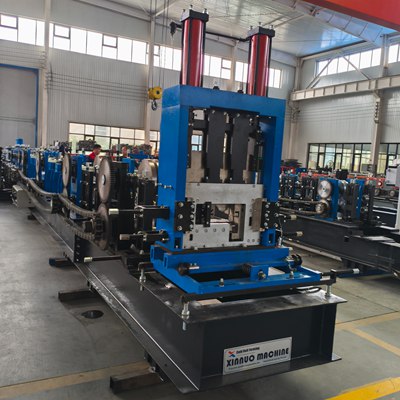

This machine is automatic quick change machine. It can produce two profiles, C and Z.  It can quickly change the size and profile, and change the purlin specification in 3 minutes. Purlins of any size can be made without changing the cutting die. Only need to enter the purlin parameters on the PLC control panel, the cutting mold will change according to the purlin size. The CZ interchanger is more economical and practical than a single machine. It can also save more space.

Dimensions: 11 x 1.3 x 1.5 m

Engine power: 11 kW x 2

Pumping station motor: 7.5 kW

Sheet thickness: 1.0mm to 3.0mm

Efficiency: 10-15 m/min

Cutting knife material: Cr12 MoV hardened at 58°C-60°C

Cylinder diameter: 85 mm

Weight: About 8,500 kg

Machine Structure: 450 H Input

Processing Accuracy: within 1.0mm

Side Panel: 20 mm

Side Panel: 2 inch

After-sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days from receipt of deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you in the installation and use, and provide face-to-face training to your employees/technicians.
