Semi circle gutter forming machine

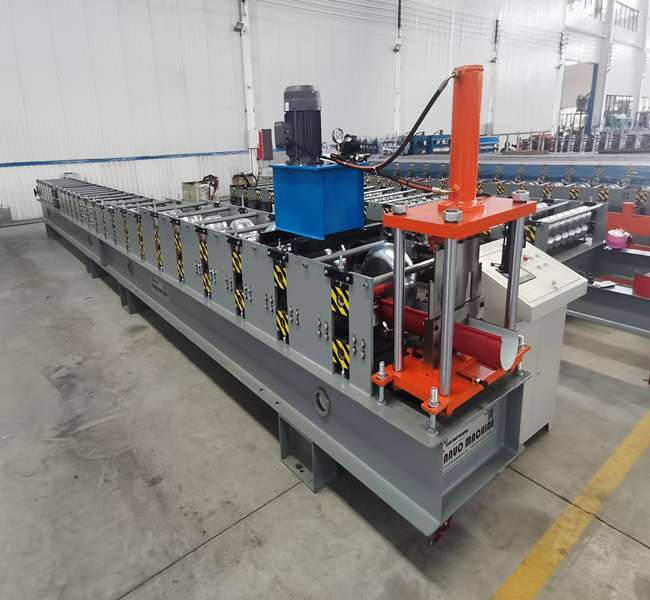

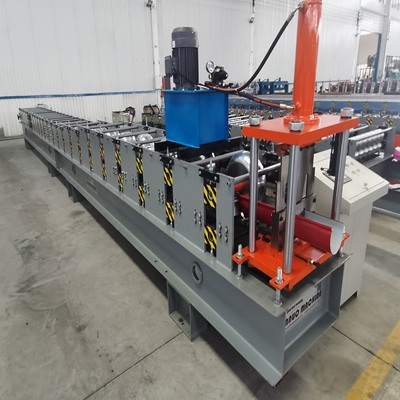

The semi-circular groove forming machine is an automated cold bending forming equipment designed specifically for fields such as building drainage and municipal pipe networks. It can efficiently process galvanized steel plates, color steel plates, and other raw materials into seamless semi-circular grooves in one go, without the need for secondary polishing throughout the process. It is suitable for customizing various specifications and sizes to meet the construction needs of different scenarios. The core advantages of the equipment are outstanding, equipped with an intelligent PLC control system, which is easy to operate, stable in operation, high in forming accuracy, uniform in groove curvature of the finished product, smooth and even in surface, resistant to pressure, wear, corrosion, and has a long service life. At the same time, the equipment has low energy consumption and high efficiency, significantly reducing labor costs. Compared with traditional processing methods, the production efficiency has increased by more than 60%, effectively reducing the production costs of enterprises.

Currently, with the rapid advancement of prefabricated buildings and municipal infrastructure construction, semi-circular grooves, as efficient drainage and water guiding core components, are widely used in roof drainage, drainage on both sides of roads, park pipeline networks and other projects. The market demand continues to rise and the development prospects are broad. This device can accurately match market demand, help enterprises seize market opportunities, achieve large-scale and efficient production, and is the preferred equipment for upgrading and transforming building materials processing enterprises.

(1) Plate and thickness: 0.5-0.9mm colored aluminum and color steel

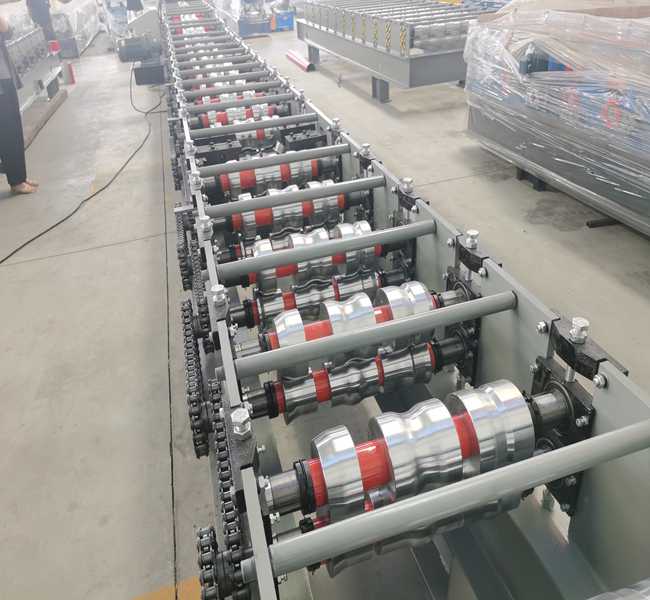

(2) Number of molding rows; 20 rows

(3) Shaft diameter 65mm

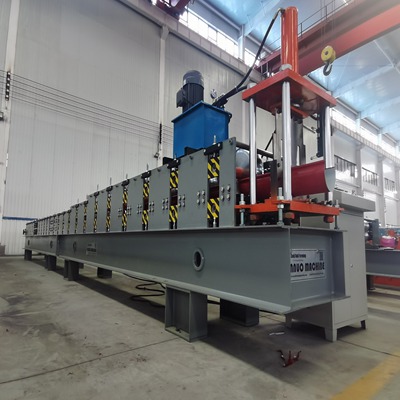

(4) Large frame: 350H steel

(5) Medium plate: 16mm

(6) Wheel material: 45 # steel

(7) Main motor power: 5.5 KW

(8) Production speed: 8-15 per minute

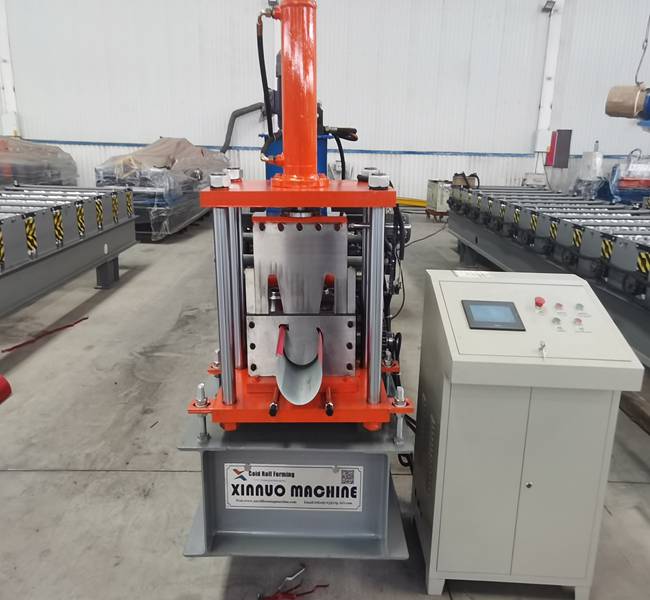

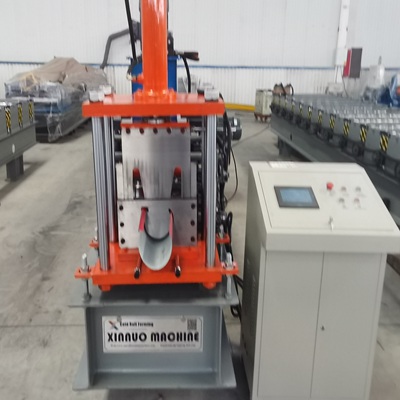

(9) Cutting method: hydraulic grinding tool cutting

(10) Cutting blade material: Cr12 Mov

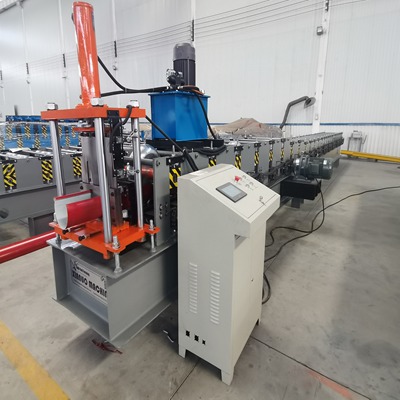

(11) Hydraulic pump station: 4kw

The size of rainfall machine can be customized according to your needs. The pipe is the core of the house and the drainage channel. Thanks to its advanced technology, it not only effectively prevents rainwater from seeping in, but also produces components with an elegant appearance and durability. The new plate has the characteristics of high strength, lightness and anti-aging. The protective layer consisting of oxidized wax on the metal surface has extremely high corrosion resistance. The surface of the copper metal substrate is subjected to a simulated aging process. Thanks to its simple size and compact design, our rainfall machine can be installed in a limited area and is suitable for high-speed operation.
