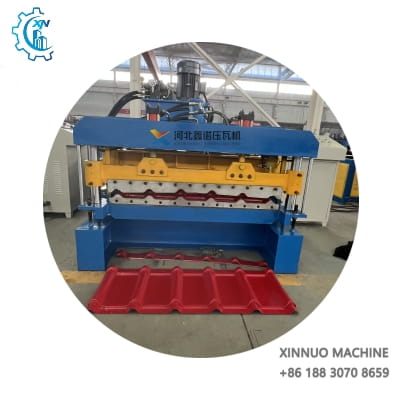

tile roll forming machine

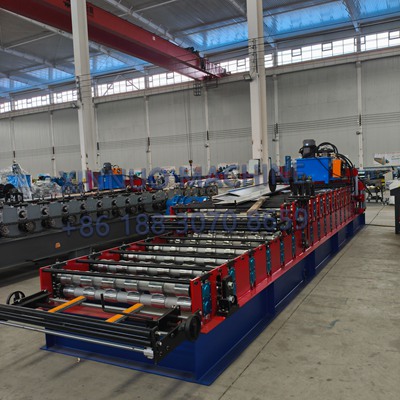

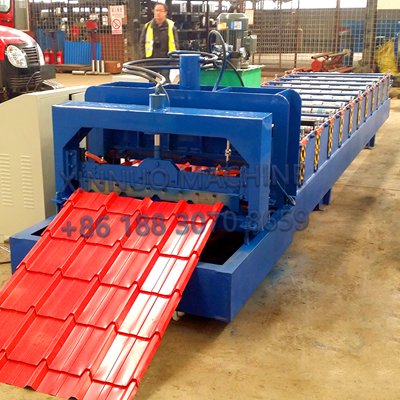

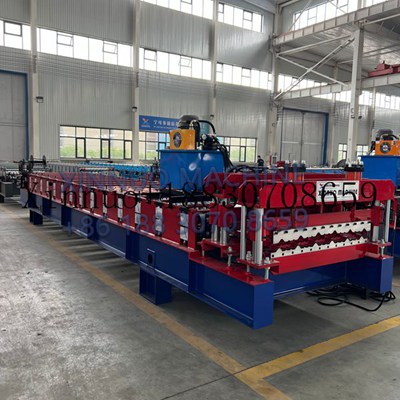

The Xinnuo Tile Roll Forming Machine is a high-efficiency equipment specially designed for producing glazed tile roof panels. With advanced roll forming technology, it delivers precise shapes, beautiful appearances, and consistent quality suitable for residential, commercial, and industrial roofing projects across Latin America.

In Central and South America, glazed tile roof panels are widely used for houses, schools, warehouses, and resorts. Our machine is capable of producing strong, durable panels that can withstand tropical climates, heavy rainfall, and high temperatures, ensuring long service life for roofing projects in the region.

Number of Rollers: 14 rows

Dimensions: 7.5 × 1.5 × 1.6 meters

Motor Power: 4 kW

Hydraulic Pump Motor: 4 kW, Lichao brand

Sheet Thickness: 0.3 - 0.8 mm

Production Speed: 3 - 5 m/min

Cutting Blade Material: Cr12, hardened at 58°C - 60°C

Roll Diameter: Approx. Ø70 mm

Weight: Approx. 4200 kg

Machine Main Structure: 350H beam

Machining Accuracy: ±1.0 mm

Side Plate Thickness: 16 mm

Chain and Sprocket: 1-inch bicycle chain

Voltage: 380V, 50Hz, 3-phase or as per customer request

Control System: PLC control (Delta)

Frequency System: Delta inverter

Drive Mode: Motorized drive system

Touch Screen: Delta brand

Cylinder Material: 45# forged steel + chrome plating

Length Tolerance: ±2 mm

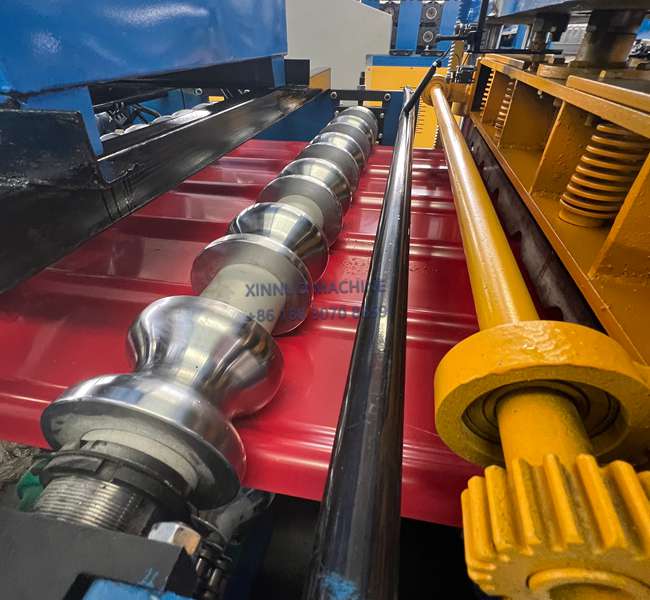

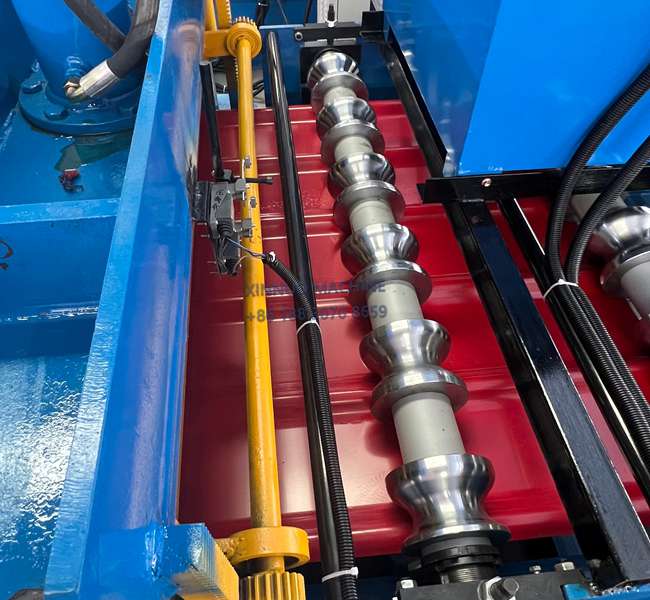

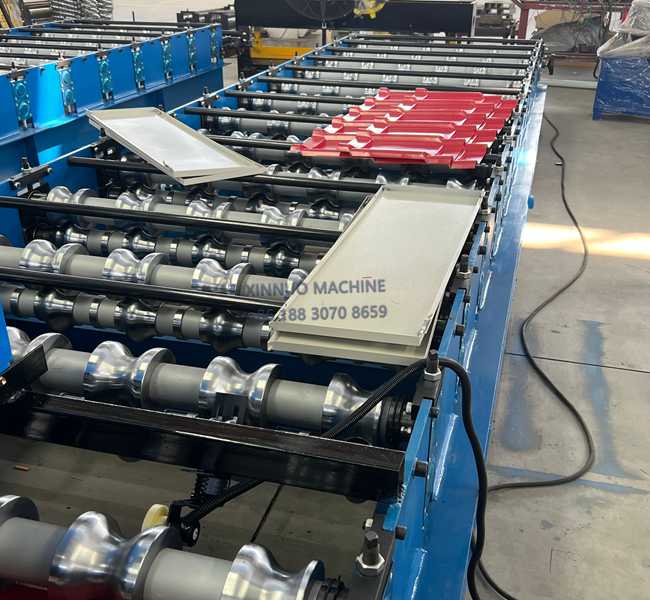

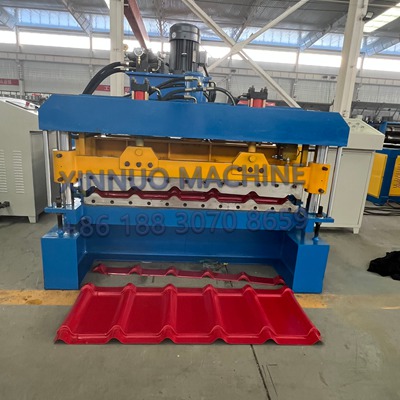

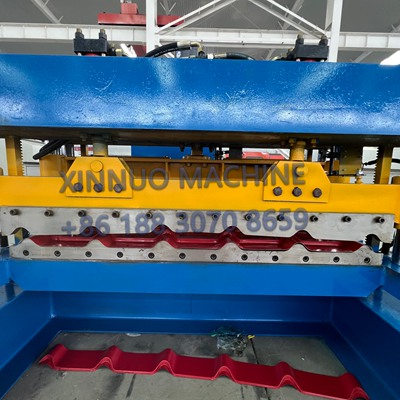

This machine adopts a fully automatic control system with PLC, making the operation easy and efficient. Equipped with precision rollers and hydraulic cutting, the production is smooth, with minimal waste. The tile panels produced have uniform size, accurate dimensions, and a decorative tile-like design that meets the aesthetic needs of Latin American customers.

Using galvanized or pre-painted steel coils as raw materials, the machine forms roofing panels with strong corrosion resistance and excellent surface finish. These panels are widely preferred in Latin American markets due to their modern look and long-lasting durability compared to traditional clay tiles.

Xinnuo Machinery is a professional manufacturer with more than 20 years of experience in roll forming equipment. Our factory is equipped with CNC machining centers, advanced production lines, and strict quality inspection systems. We export machines worldwide, with a growing presence in Latin America, especially in countries like Mexico, Brazil, Peru, and Colombia.

We provide full technical support, including installation guidance, operator training, and after-sales service. For our Latin American clients, we also offer remote assistance and quick supply of spare parts, ensuring smooth and uninterrupted production.Compared with other suppliers, Xinnuo offers cost-effective machines with high stability and longer service life. Our tile roll forming machine is designed for both small workshops and large-scale factories, making it an ideal investment for Latin American entrepreneurs who want to expand their roofing material production business.
