Glazed Tile Sheet Forming Machine from Xinnuo

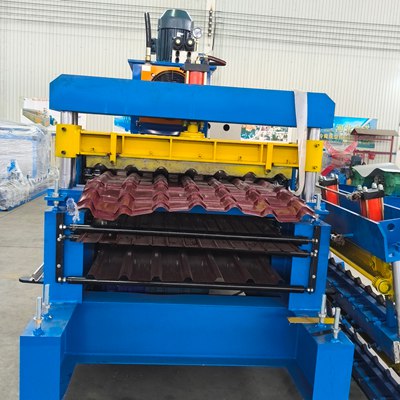

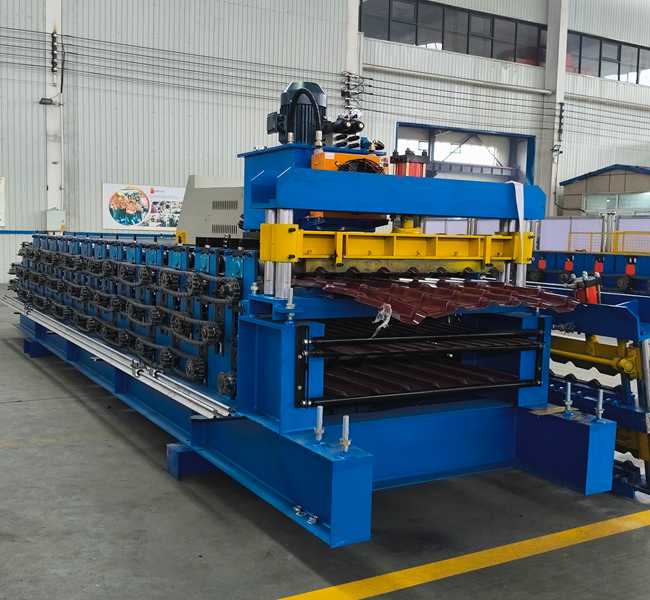

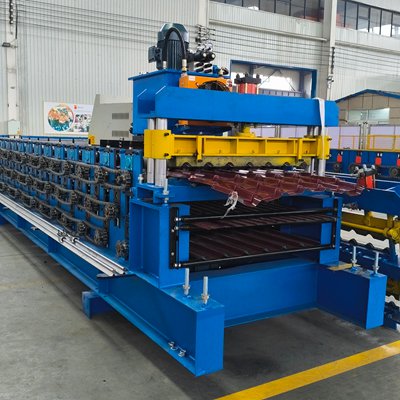

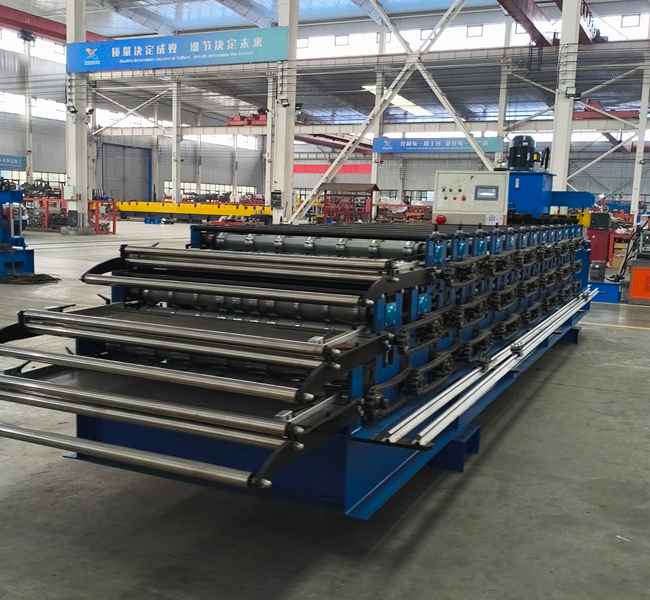

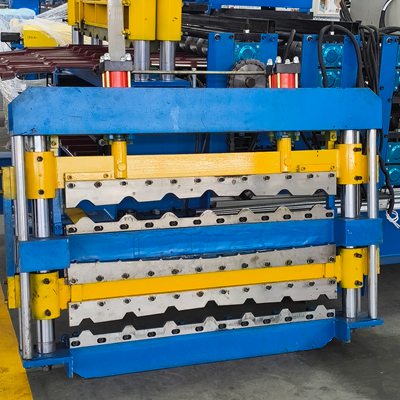

The three-layer glazed tile machine adopts a fully automatic CNC system, which can produce three types of tile shapes in one machine, with precise roll forming and stable operation. The equipment has a compact structure, small footprint, high efficiency, and is suitable for the production of various building materials such as factories, new rural areas, and antique roofs. It is durable and easy to operate.

Suitable for color steel plates with a thickness of 0.4mm-0.6mm

Maximum feed width 1250mm

Forming effective width 1100mm

Precision molding

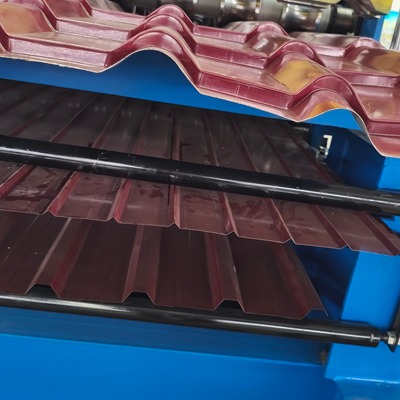

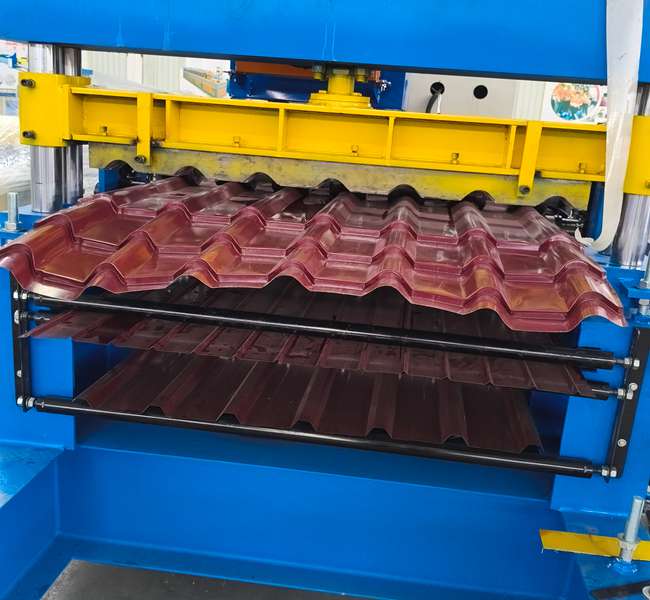

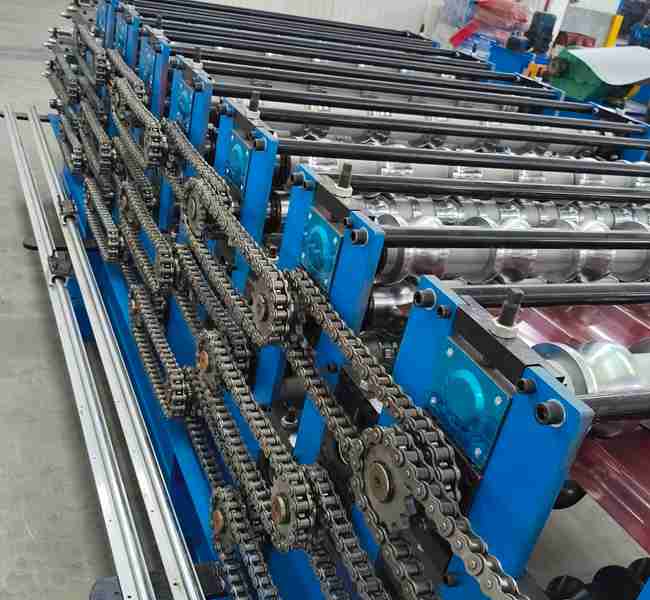

Through 16 carefully designed forming rollers, the forming process is smooth, with beautiful and consistent tile curves.

The rollers are precision machined by CNC machine tools and coated with hard chromium on the surface, which has high hardness, strong wear resistance, and achieves mirror finish, effectively protecting the surface coating of the board and ensuring that the tiles are bright and scratch free.

Intelligent Electronic Control and Operating System

Core control: With PLC as the control center and Siemens touch screen, the system is stable and the human-computer interaction interface is intuitive.

Fully automatic setting: Operators can easily set the stamping length and cutting length on the touch screen, and the equipment automatically executes and counts, achieving automated production.

Precision feedback: Integrated Omron encoder, real-time feedback of molding speed and length information, forming a closed-loop control to ensure precise and error free fixation.

Fully automatic three-layer glazed tile pressing machine, PLC intelligent control, high molding accuracy, smooth discharge. Flexible switching between different specifications of glazed tiles saves time on mold changes. The whole machine is sturdy, durable, and has a low failure rate, making it an efficient equipment for processing roof building materials.
