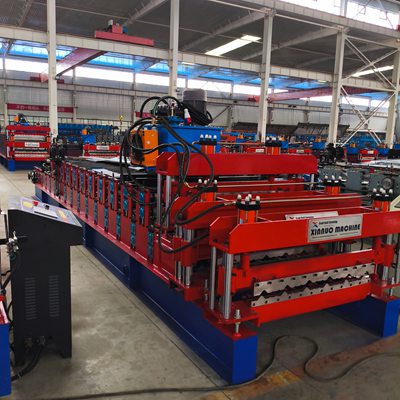

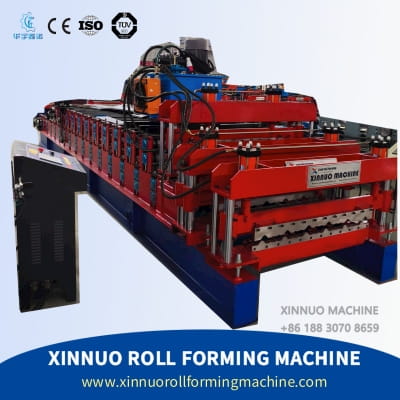

Metal Roof Glazed Tile Cold Roll Forming Machine

The glazed tile press is a cold-bending forming equipment specifically designed for producing imitation antique glazed tiles from colored steel plates or galvanized sheets. Through continuous rolling and punching processes, it transforms these materials into wave-shaped tiles with a classical architectural style. The resulting products retain the antique elegance of traditional ceramic glazed tiles while overcoming their drawbacks—such as brittleness, heavy weight, and installation difficulties. With advantages like lightweight, high strength, easy construction, and rich color options, these tiles are widely used in roofing, walling, and decorative projects across various types of buildings.

The glazed tile pressing machine usually consists of a feeding device, a forming host, a stamping and shearing device, a hydraulic system, and an electrical control system. According to the degree of automation and molding methods, it can be divided into various models such as semi-automatic, fully automatic, double-layer, three-layer, etc. With the increasing demand for antique style and energy-saving and environmentally friendly materials in the construction industry, glazed tile pressing machines have been widely used in industrial and civil construction fields.

Equipment structure

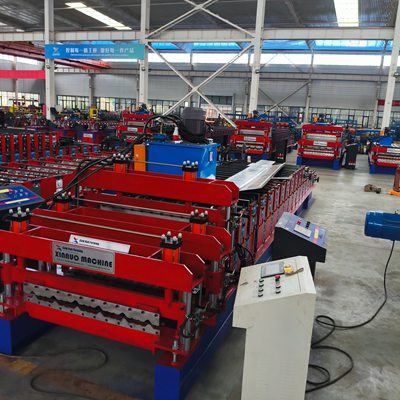

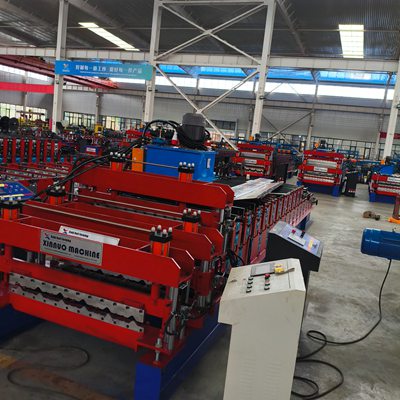

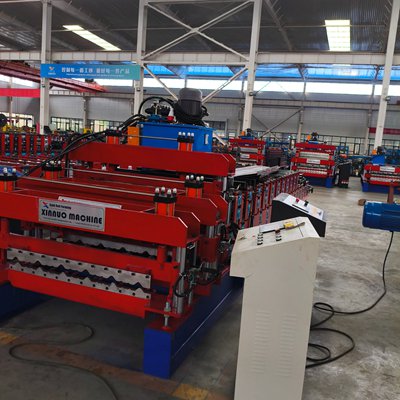

The structure of the glazed tile pressing machine is complex, mainly composed of five parts: feeding system, forming system, stamping and shearing system, hydraulic system, and electrical control system. Each part works together to complete the production of tile plates.

working principle:

The working process of the glazed tile press is a continuous cold bending forming process, mainly including four stages: feeding, forming, stamping, and shearing.

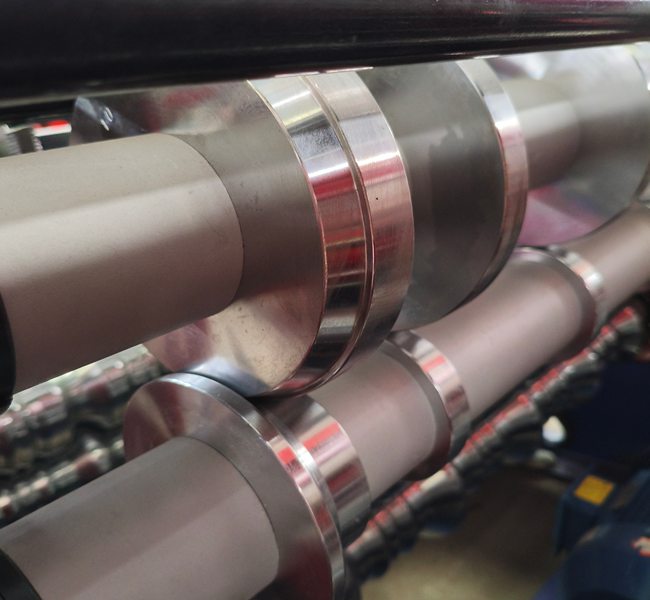

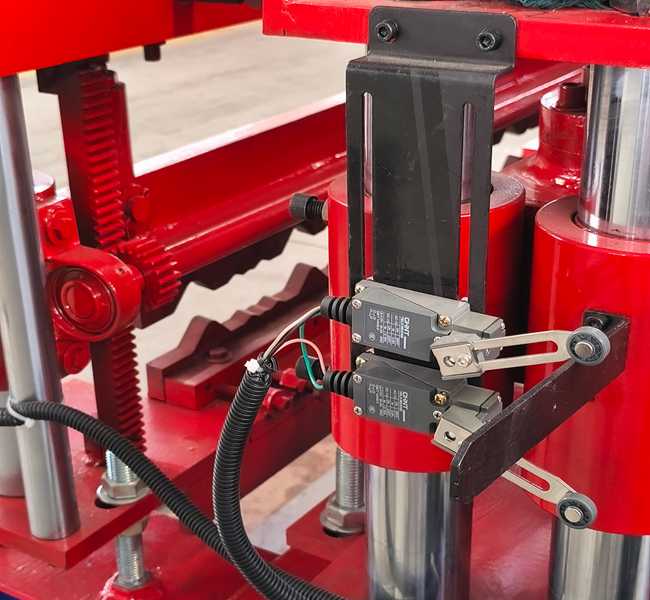

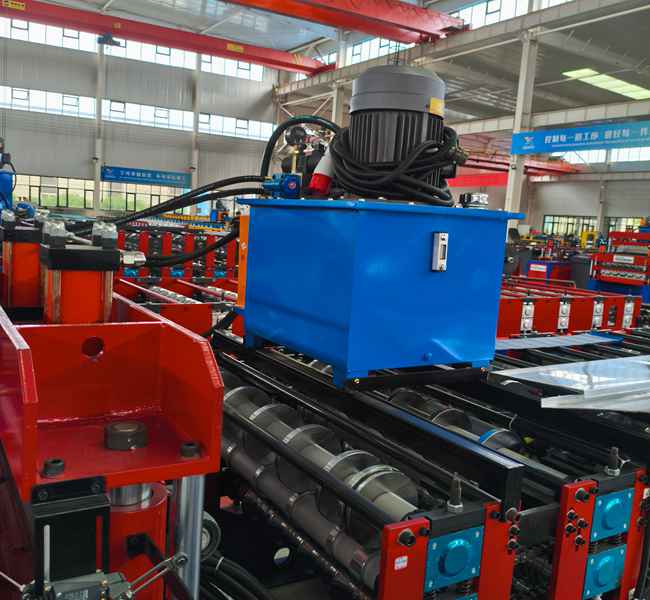

Firstly, the raw materials (such as color steel plate coils) are placed on the feeding rack, and the sheets are unfolded and fed into the forming machine through the unwinding mechanism. After entering the forming host, the sheet passes through multiple forming rollers in sequence. Under continuous rolling, the originally flat sheet is gradually compressed into a flat plate with a specific cross-sectional shape (commonly known as a "tile blank"). After preliminary roll forming, the flat plate then enters the stamping station. The hydraulic cylinder drives the upper mold to move downward, which cooperates with the fixed lower mold to press the flat plate into a three-dimensional glazed tile shape. Finally, the formed glazed tiles are transported by a conveyor

roller to the cutting station. The control system controls the hydraulic cutting mechanism based on the set length signal to cut the long plate into finished tiles of the specified length.
