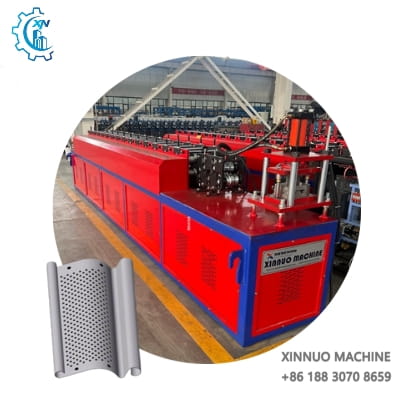

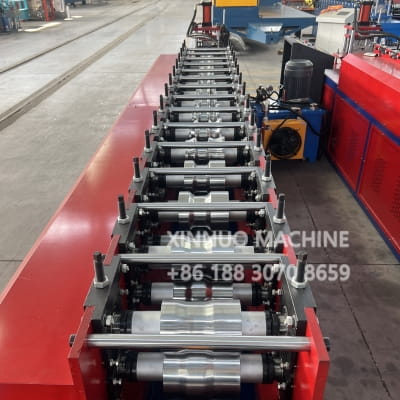

rolling shutter door machine

Xinnuo's line of rolling shutter machines is primarily used to produce a variety of rolling shutter panels. Our rolling shutter machines are capable of punching, embossing, and forming panels. Custom panel profiles are also available. Xinnuo Roll Forming Machinery Co., Ltd. is an experienced rolling shutter machine manufacturer that utilizes advanced production technologies and implements stringent quality control throughout the entire production process. All of our rolling shutter roto-molding machines maintain consistently high quality.

Number of rows: 12, with leveling device

Dimensions: 5.4 m x 1 m x 1.5 m

Motor power: 3 kW

Pump station motor: 3 kW

Sheet thickness: 0.6-1.0 mm

Efficiency: 10-15 m/min

Blade material: CR12, hardened at 58°C-60°C

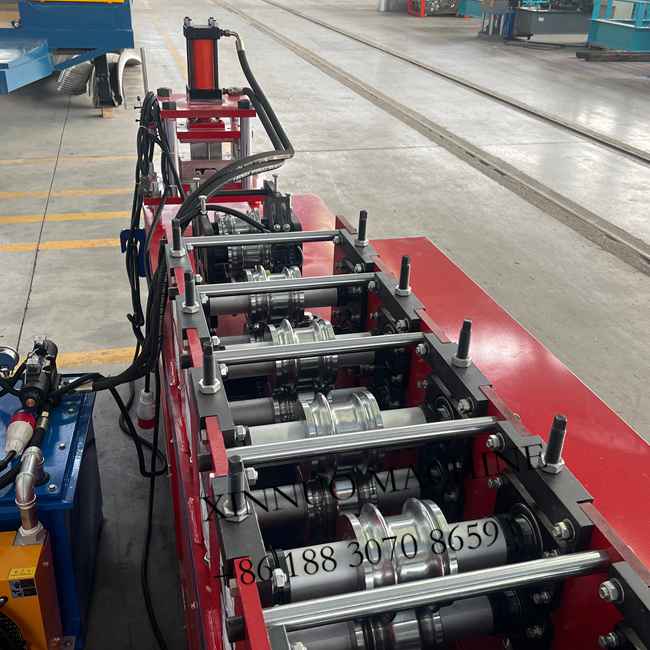

Roller diameter: Φ50 mm

Weight: Approx. 2,600 kg

Machine structure: Square steel frame

Machining accuracy: Within 1.0 mm

Machine side plates: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380 V, 50 Hz, three-phase or according to customer specifications

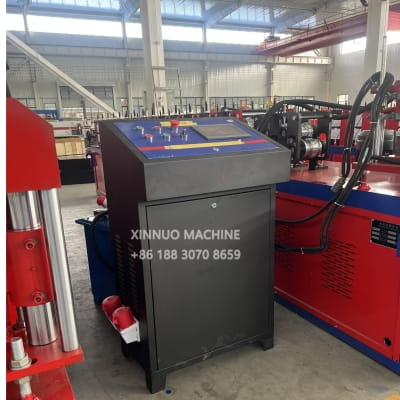

Control system: PLC (Delta)

Inverter system: Delta

Drive mode: Gear drive

Touch screen: Delta

Roller material: 45# Chrome-plated forged steel

Length tolerance: ±2 mm

This servo-powered system supports continuous automated production, increasing productivity 3-5 times compared to traditional manual processes and making it suitable for bulk orders. By integrating coil unloading, roll forming, cutting, punching, and bending functions, it reduces material transfer steps and manual intervention, enabling one-stop production with "fed, finished product."

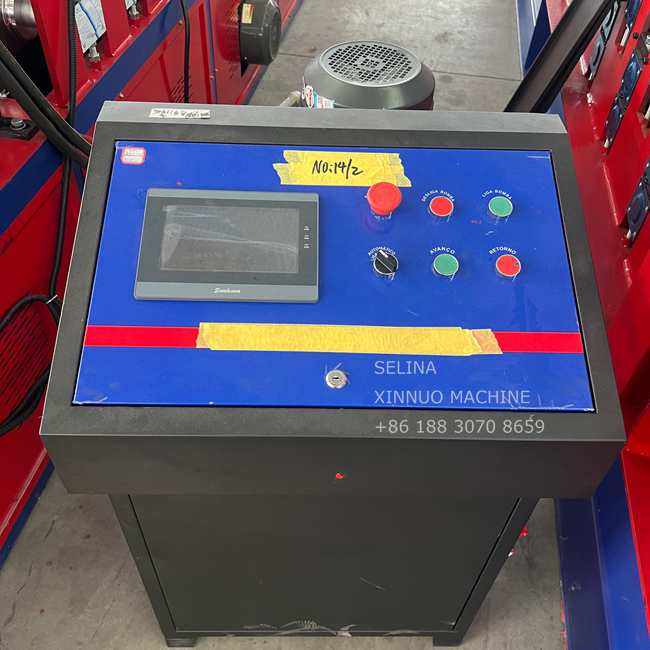

The touch screen supports human-computer interaction, can preset multiple sets of production programs (such as production parameters of different materials and specifications), switch production modes with one button, and lower the working threshold.

With our long-standing experience in machinery manufacturing and export, Sino-Tele offers customized solutions. Whether it's production speed, sheet metal width, profile structure, or material compatibility, we can tailor the solution to best suit your needs. We consistently adhere to the philosophy of "standing out in the market with quality, earning a reputation through service" to provide you with stable and cost-effective shutter production equipment.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide face-to-face training for your employees/technicians.
