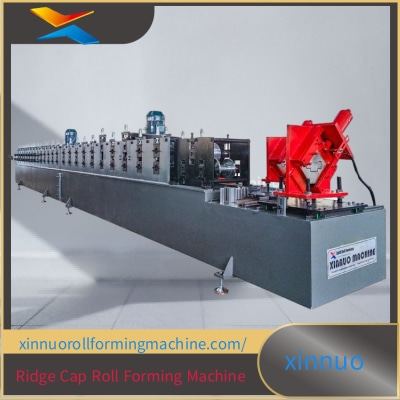

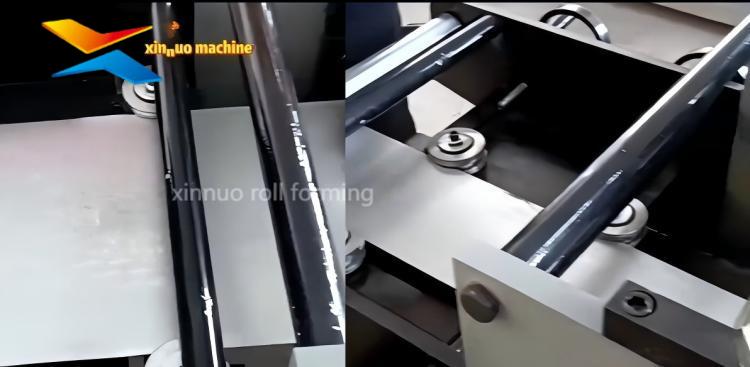

Xinnuo Door Frame Roll Forming Machine: Precision Engineering for Perfect Frames

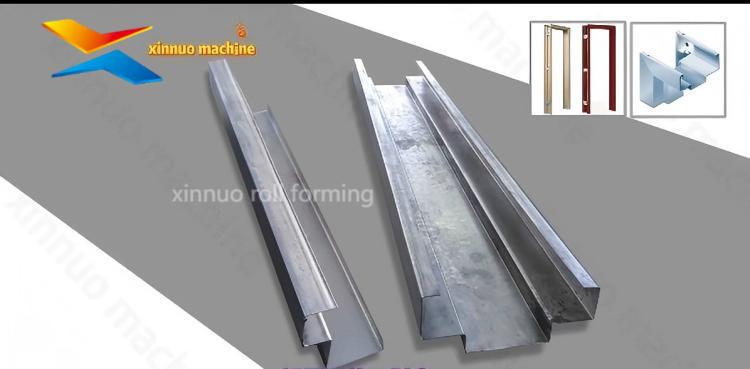

Xinnuo's Door Frame Machine stands as a pinnacle of precision and efficiency in the metal forming industry. Tailored for fabricating high - quality door frames, it integrates advanced technology to meet diverse production needs.
1. Versatile Processing Capability
This machine is highly adaptable, designed to process color steel, galvanized iron (GI), and similar materials. Whether you're aiming for sleek, colorful door frames or durable GI - based structures, it delivers consistent results, making it suitable for a wide range of architectural and industrial applications.
2. Material and Thickness Compatibility
It can handle feeding materials with a thickness ranging from 0.3 - 0.8mm. This flexibility allows manufacturers to produce door frames of varying sturdiness, catering to different customer requirements, from lightweight yet durable residential frames to more robust commercial ones.
3. Roller Station and Productivity

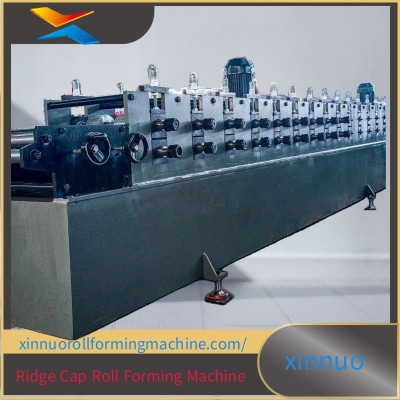

Equipped with 16 - 18 rows of roller stations, the machine ensures gradual and precise forming of the metal sheets. This design contributes to a smooth production process and enables a productivity rate of 8 - 10m/min. Such efficiency means faster turnaround times for large - scale orders, enhancing overall production throughput.
4. Robust Construction Elements

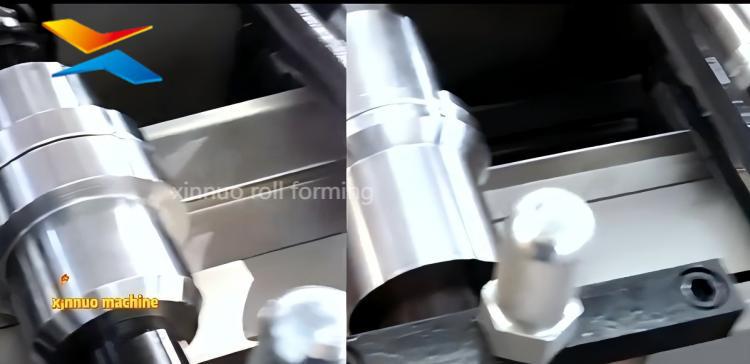

- Rollers' Material: The rollers are made of 45# forging steel, a material known for its high strength and wear resistance. This ensures a long service life for the rollers, even under continuous high - volume production, reducing maintenance costs and downtime.
- Shaft Diameter: With a shaft diameter of 48mm, the machine provides stable power transmission during the forming process, ensuring the accuracy of the door frame profiles.
- Side Plate Thickness: Featuring 16mm steel plate side plates, the machine's structure is rigid and stable. It can withstand the mechanical stresses of the roll - forming operation, guaranteeing consistent performance over time.
5. Power Configuration
- Main Motor Power: A 4kw main motor supplies sufficient power for the roll - forming action, enabling the machine to handle the material processing smoothly.

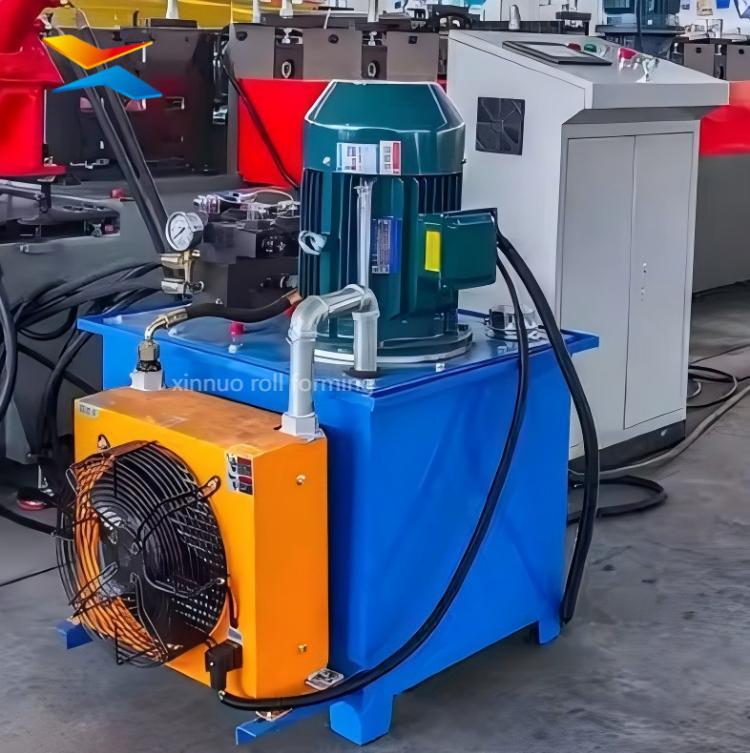

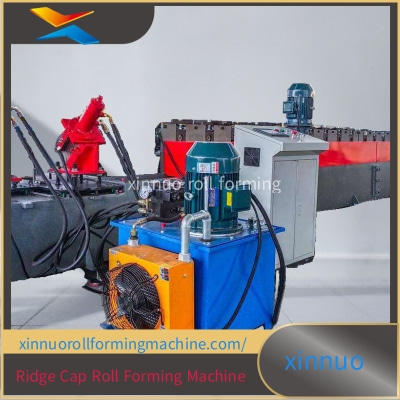

- Hydraulic Power: The 3kw hydraulic power system assists in operations like material feeding and pressure application during forming, adding to the machine's operational efficiency and precision.
- Voltage Requirement: Designed to operate on 380V 50Hz 3 - phase power, it is compatible with standard industrial power supplies in many regions.
In conclusion, Xinnuo's Door Frame Machine combines versatility, precision, and robust construction. It is an ideal choice for manufacturers seeking to produce high - quality door frames efficiently, meeting the demands of both residential and commercial construction markets. Whether you are a small - scale producer or a large industrial enterprise, this machine can be a valuable addition to your production line, helping you achieve consistent and excellent door frame manufacturing results.
