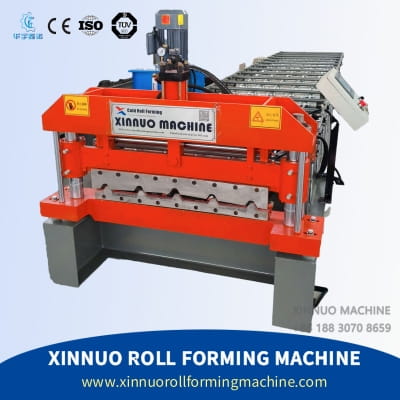

Roof panel making machine

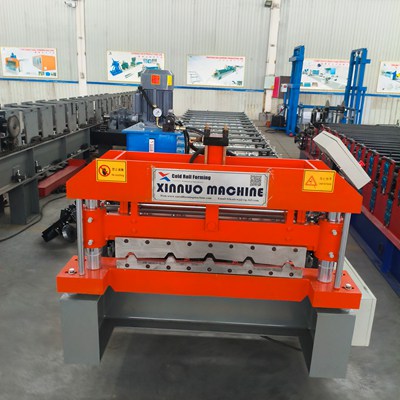

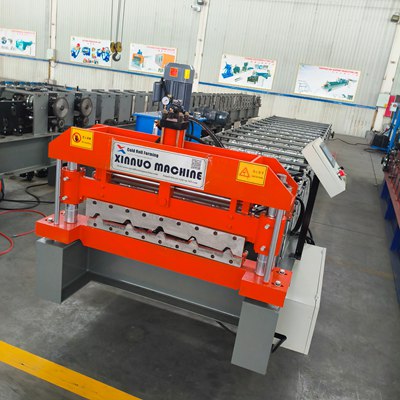

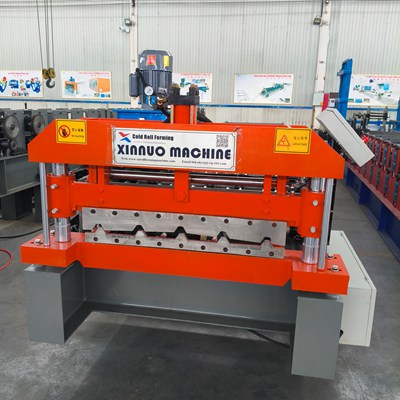

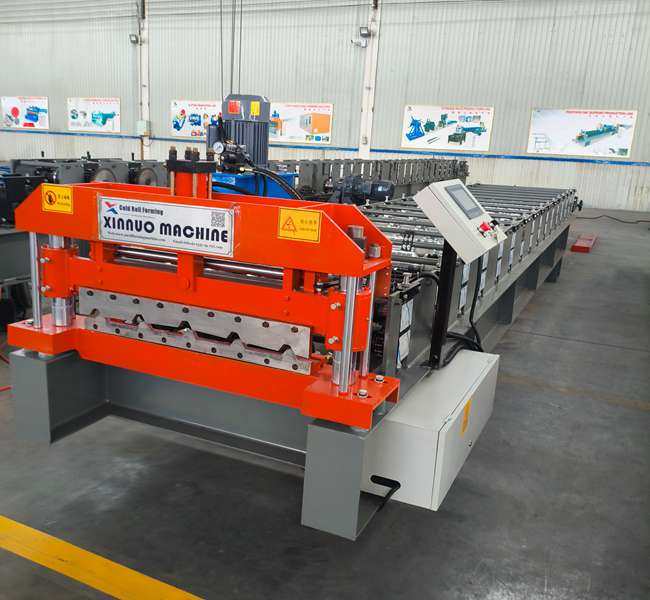

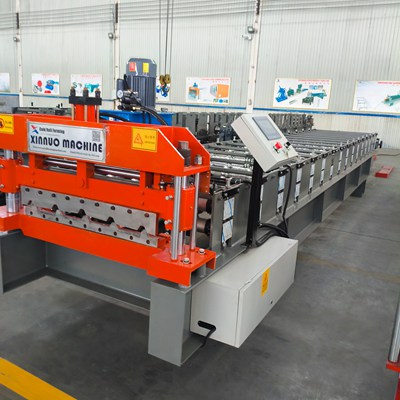

This is an XN38-190-760 color steel plate forming equipment. The 760 color steel plate is a commonly used plate type in the construction field, with an effective width of 760 millimeters. It consists of five consecutive wave peaks, with a wave height of 38 millimeters and a wave distance of 190 millimeters. The equipment has a forming speed of about 20 meters per minute, and the formed plate surface is flat without any waves. The product size is precise, beautiful, and strong. It is easy to assemble during installation and can reduce the construction period.

Feed plate width: 1000

Effective board width: 760

Molding thickness: Color steel 0.5-1.0mm

Hydraulic motor: 4KW

Transmission motor: 15KW * 2

Molding process: 22 sets

Working speed: 20m/min

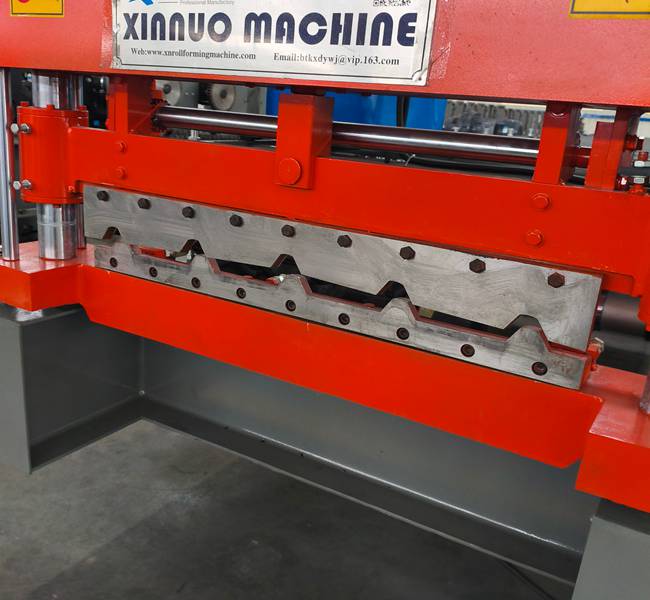

Process: Material feeding - Forming - Cutting - Bracket

One machine with multiple types, supporting customization

Support quick switching between two commonly used widths, flexibly adapt to different project requirements, and improve production efficiency. XINNUO Machinery has been rooted in the roll pressing industry for over 10 years. We have our own R&D team and after-sales team, which can provide customized design and services according to customers' different needs.

High speed and precision, excellent board shape

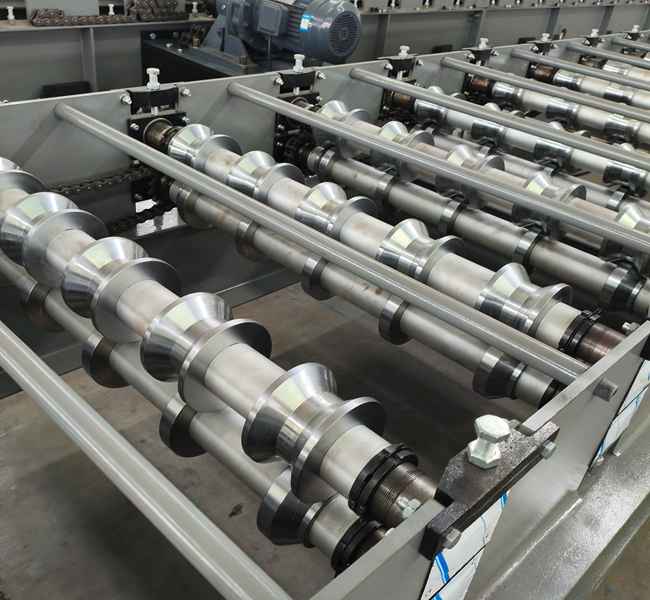

The equipment is equipped with 22 molding units, which can process 0.5-1.0mm color steel plates at a molding speed of about 20 meters per minute. The molding surface is flat without any waves, and the product size is precise, beautiful, and strong. It is easy to assemble during installation and can reduce the construction period.

Extremely stable, ultra long and durable

Adhering to the manufacturing philosophy of continuous improvement, we have demonstrated high industry standards in material selection and structural design. Our high-quality steel and advanced roll forming technology ensure the ultimate stability and durability of the machine body, guaranteeing the stable operation of the control system.
