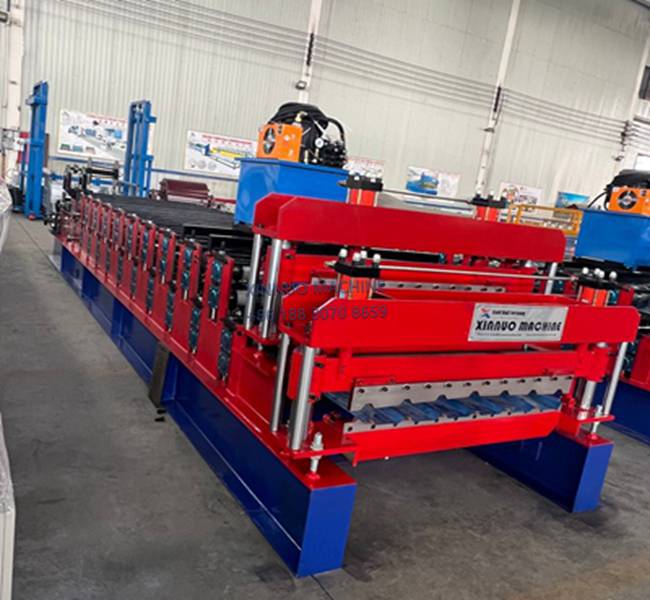

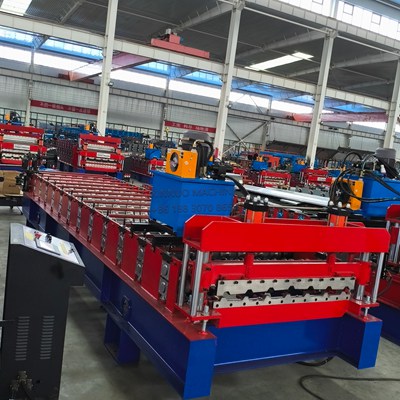

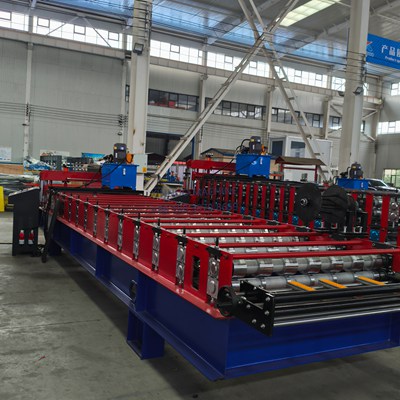

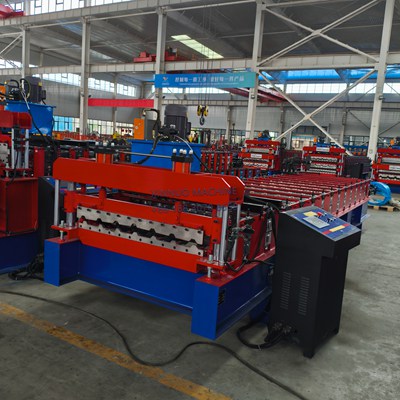

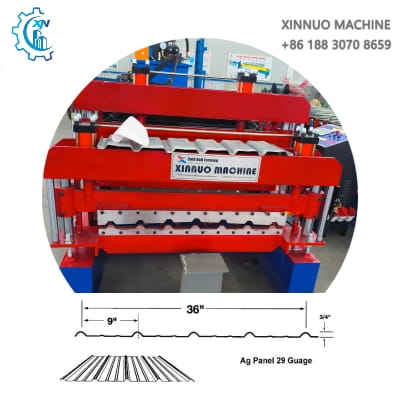

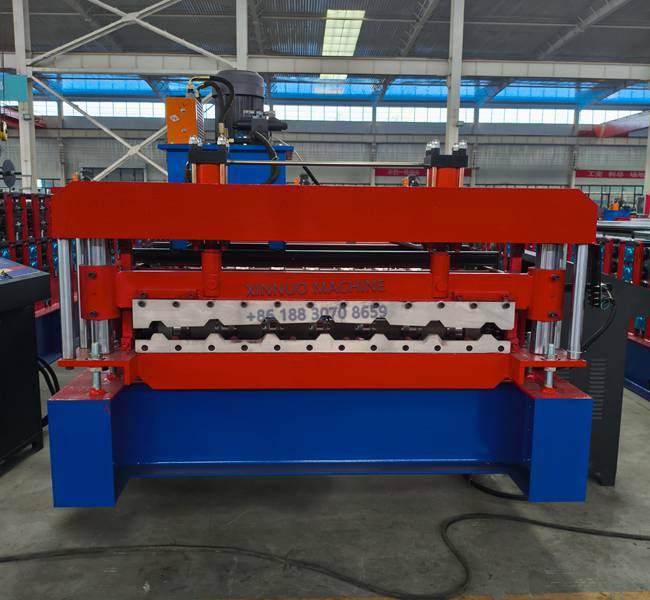

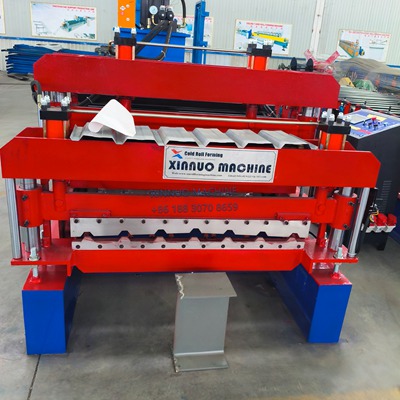

AG panel roll forming machine

Xinnuo Roll Forming Machinery Co., Ltd. proudly introduces the AG panel roll forming machine, a high-quality, efficient solution for producing agricultural and roofing panels. This machine utilizes advanced forming technology to ensure precise dimensions, smooth sheet surfaces, and consistent quality throughout each production cycle. Its sturdy steel frame, powerful drive system, and user-friendly control interface ensure long-term durability and stability, even under continuous heavy loads.

Cylinder rows: 11-13

Dimensions: 5.8 x 1.55 x 1.6 m

Motor power: 3 kW

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

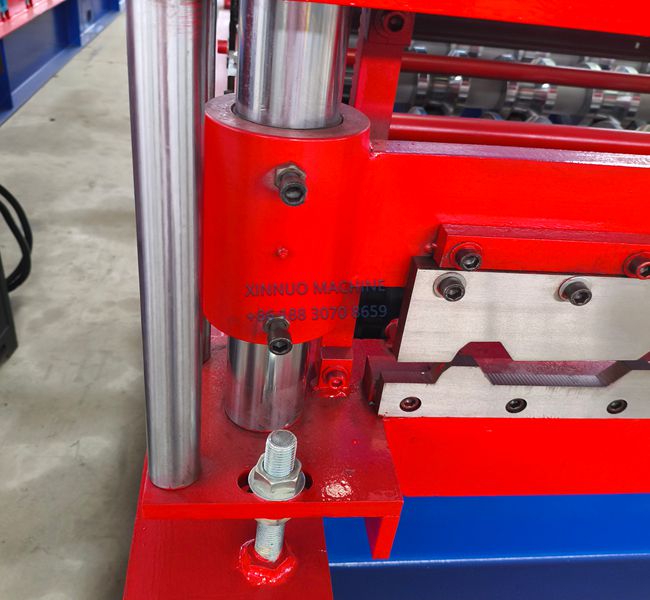

Cutting blade: CR12, hardened at 58°C-60°C

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

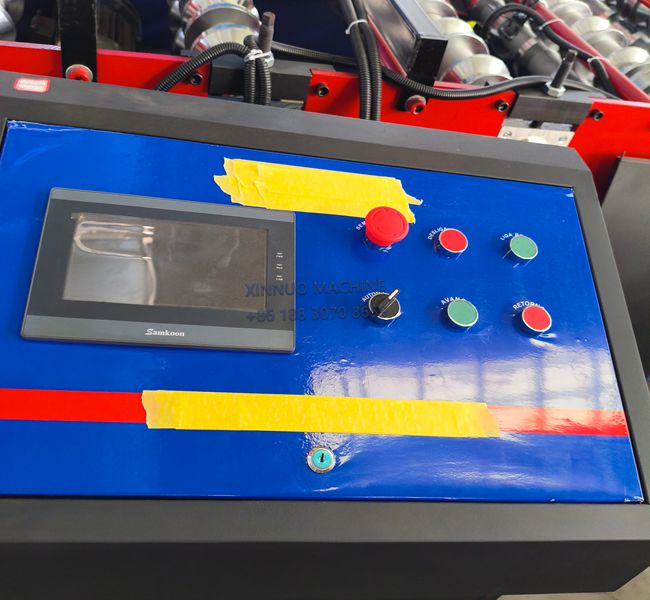

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

Touchscreen: Delta

Coil: 45# forged steel, chrome-plated

Length tolerance: +2 mm

Xinnuo has been specializing in roll forming machinery for decades, exporting machines to Central and South America, where the demand for metal roofing and agricultural panels is rapidly growing. Our factory integrates R&D, production, and after-sales service, allowing us to deliver customized solutions tailored to each customer’s needs. Customers in Latin America highly recognize our machines for their excellent performance, fast production speed, and reliable after-sales support.

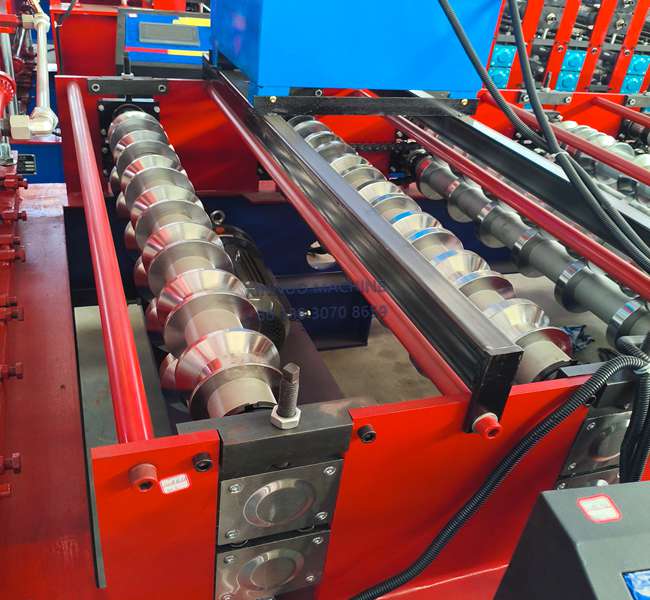

Featuring a user-friendly structure with an automatic feeding system, precision roll forming stations, and a touch-screen control panel, the corrugated sheet metal bending machine saves time in the production process, reduces labor costs, and simultaneously improves product quality.

The machine can be adapted to different wave profiles according to customer needs. Parameters such as production width, sheet thickness, and wave height are easily adjustable. Furthermore, its durable body and high-quality cylinder material ensure long life and low maintenance costs.The AG panel roll forming machine is a highly profitable investment for building material factories, prefabricated building manufacturers, and roofing companies. It provides an ideal solution for companies seeking to balance quality and fast production in today's competitive market.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide in-person training for your employees/technicians.
