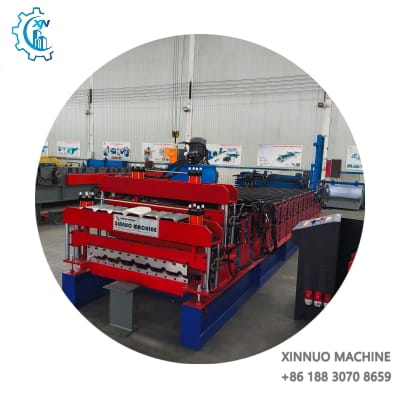

metal roofing machine

If you're looking for a reliable trapezoidal roof sheet forming machine, you've come to the right place. Our company specializes in producing high-quality trapezoidal metal sheet forming machines. We offer direct purchase from customers, eliminating the middleman and ensuring you receive the best price and service.

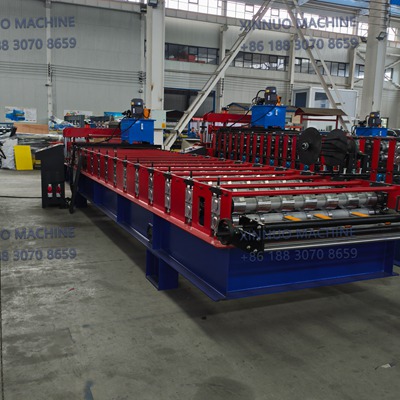

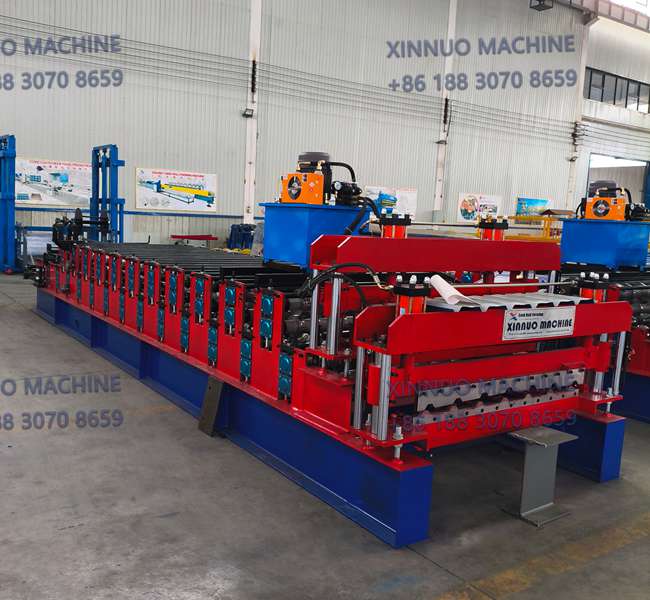

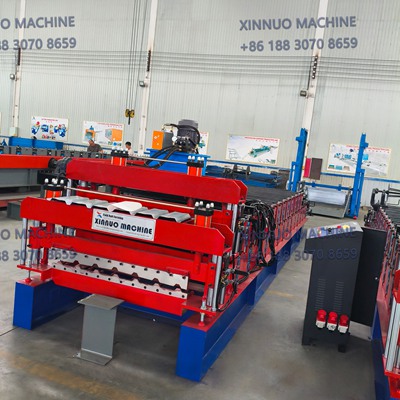

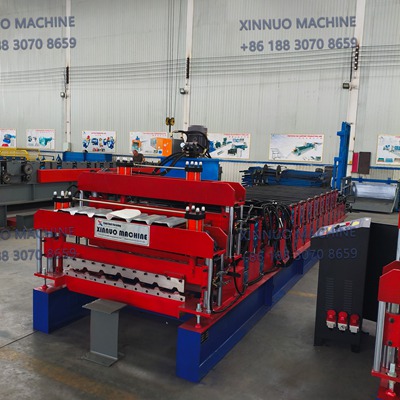

Roof sheet forming machines suitable for processing colored galvalume steel coils

Cylinder: 18 rows

Dimensions: 9.0 x 1.7 x 1.8 meters

Motor power: 5.5 kW

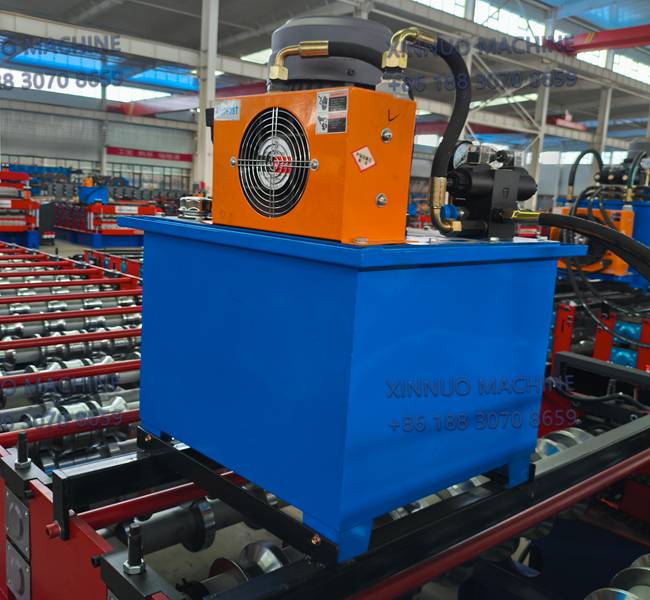

Pump station motor: 4 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

Cutting blade: Chrome-nickel steel hardened at 58°C-60°C

Cylinder diameter: 70 mm

Weight: Approx. 4,800 kg

Machine structure: 350H beam

Machining accuracy: Within 1.0 mm

Machine side plates: 16 mm

Sprocket and endless chain: 1 inch

Voltage: 380 V, 50 Hz, three-phase or according to customer specifications

Control system: PLC (Delta)

Frequency system: Delta

Touch screen, motor Drive

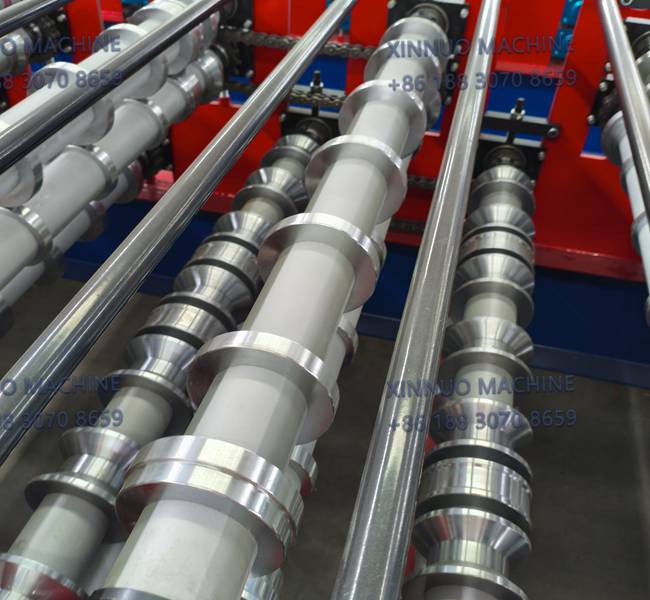

Rolled material: 45# carburized steel with chrome plating

Length tolerance: ±2 mm

Our machines are equipped with automatic cutting, a PLC control system, and adjustable rollers that adapt to various profiles, ensuring excellent performance. We can produce a wide range of trapezoidal profiles to meet market demands. The machine body is made of high-strength steel, and all components comply with CE and ISO standards.

Makinelerimiz, farklı profillere uyum sağlayan otomatik kesim, PLC kontrol sistemi ve ayarlanabilir silindirlerle donatılmış olup mükemmel performans sağlar. Pazar taleplerini karşılamak için geniş bir trapez profil yelpazesi üretebilirsiniz. Makine gövdesi yüksek mukavemetli çelikten imal edilmiş olup, tüm bileşenler CE ve ISO standartlarına uygundur.

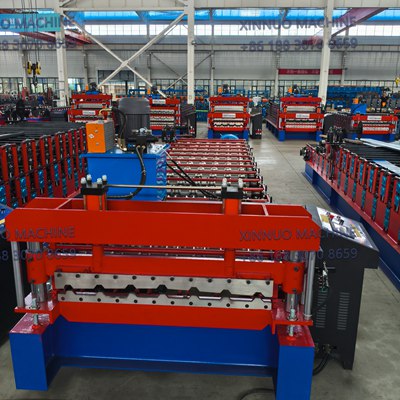

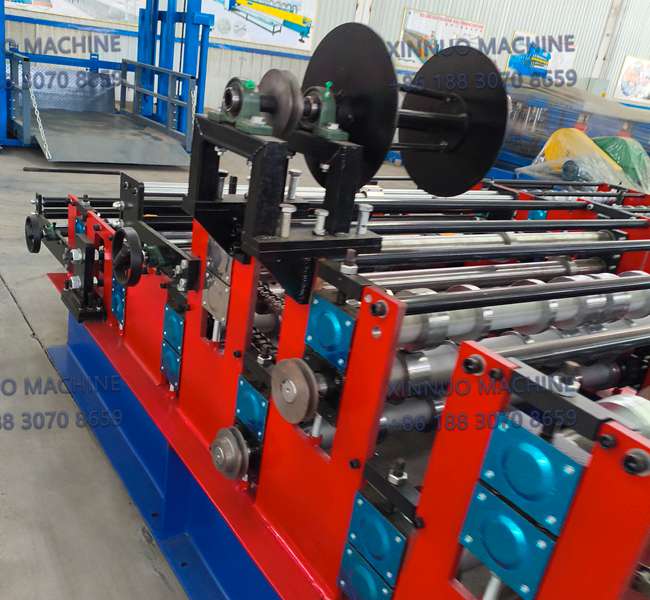

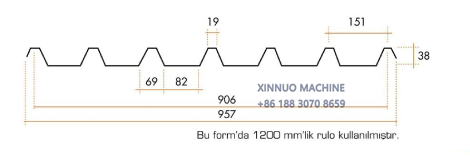

The 906 Roof Panel Roll Forming Machine is equipped with a manual pre-cutter for easy operation and material conservation. The pre-cutter is connected to a PLC control system that calculates the profile length during the roll-forming process. When a material change is required, the PLC calculates the total length and notifies the operator that production is complete. The material can then be manually cut before roll-forming to facilitate the replacement. This advanced feature helps conserve production material and avoid waste.
