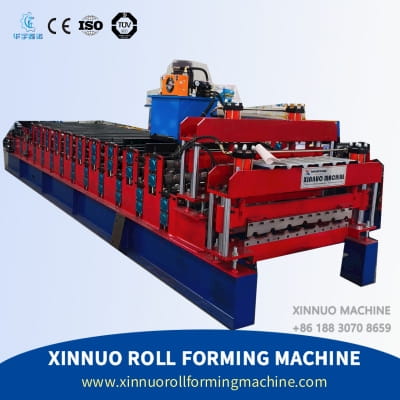

trapezoid roof making machine

The trapezoidal roof panel forming machine is a specialized equipment used for producing trapezoidal cross-section roof panels (such as color steel tiles, metal tiles, etc.). The following is an introduction to its common features and functions:

High molding accuracy

By using precision molds and servo motor drive systems, the peak height, peak distance, board length, and other dimensions of trapezoidal roof panels can be accurately controlled, with an error of usually ≤± 0.5mm, ensuring that the panel joints are tightly interlocked and effectively solving the problems of roof water seepage and leakage.

High production efficiency

Equipped with a servo tracking shearing device, it can complete fixed length cutting operations without stopping the forming machine, avoiding production interruptions and increasing efficiency by more than 20% compared to traditional equipment. It is suitable for large-scale mass production.

Stable and reliable structure

The memorial archway type frame structure is adopted, and all components are fixed by high-strength connectors. The operation vibration is small, and the plate is evenly stressed. It can operate continuously and stably for 24 hours, and meet the needs of factory production.

High degree of automation

Equipped with PLC touch screen human-machine interface, it supports parameter preset, automatic unwinding, forming, fixed length cutting, counting, fault self checking and other functions. It is easy to operate, and beginners can proficiently operate it in one day, greatly reducing manual intervention and error rate.

Strong material adaptability

It can process various materials of sheet metal, such as color steel plate, galvanized plate, aluminum plate, etc., to meet different building needs.

environmental protection and energy conservation

The noise during operation is relatively low (some equipment ≤ 75 decibels), which meets environmental requirements. At the same time, by optimizing energy utilization, production energy consumption is reduced.

Rich optional features

According to customer needs, automatic stacking, automatic film covering, automatic palletizing and other devices can be selected to achieve an unmanned production line of "roll up board out packaging", saving labor, site and management costs.
