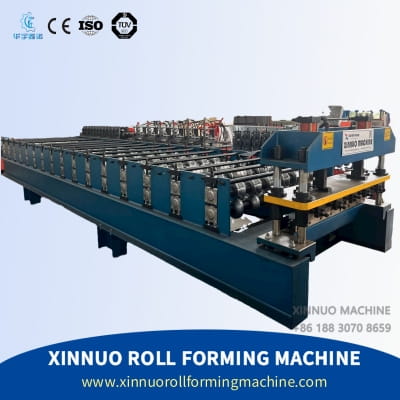

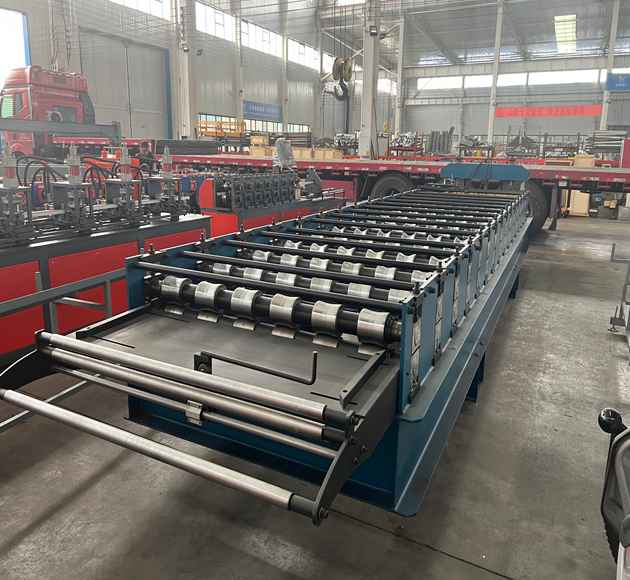

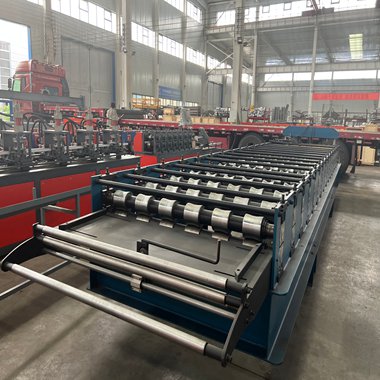

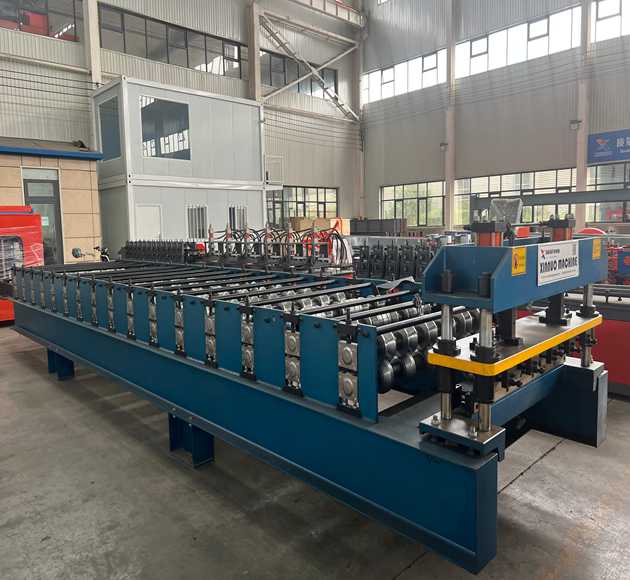

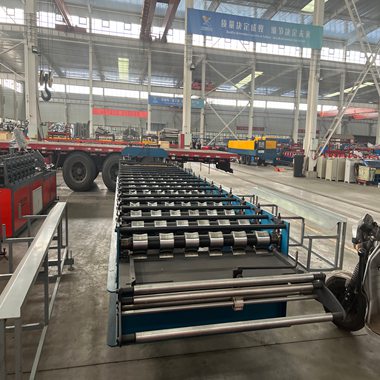

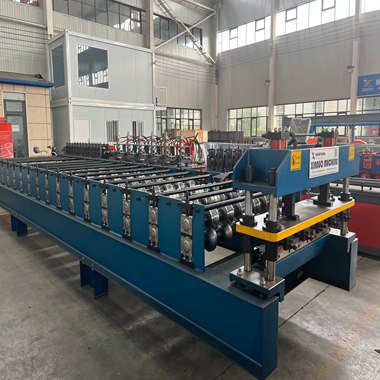

860 single layer roll forming machine

The 860 roll forming machine is a forming equipment commonly used for processing color steel roof tiles, featuring high forming accuracy, high automation, and stable production efficiency. It is suitable for materials such as 0.2-0.8mm thick coated steel sheets and is widely used in the production of roof panels for buildings like factories and warehouses. Below is a detailed introduction covering core features, structural configuration, technical parameters, and applicable scenarios.

Core features: Excellent molding quality:

The roll formed profiled sheet has a smooth appearance, uniform ripples, high strength, and a utilization rate of about 86%. It combines aesthetics and practicality, and is suitable for the structural and decorative needs of roof panels.

High degree of automation:

Adopting PLC+text display or touch screen control, combined with photoelectric encoder to achieve fully automatic fixed length cutting, the length error can be controlled within ± 2mm, reducing manual intervention and improving production accuracy and efficiency.

Stable and durable structure:

The body is mostly made of 250H steel frame, and the forming shaft is made of 70mm solid 45 # steel forged and plated with hard chromium. The cutting tool is made of Cr12 material that has been quenched at high temperature, which is wear-resistant and wear-resistant, extending the service life of the equipment.

Convenient and efficient operation:

The single-layer model has a compact structure, while the double-layer model (such as the 860/900 model) can be used for both purposes. The model can be quickly switched through the electronic control conversion button, saving space and cost, and adapting to multiple order requirements.

Cost and energy balance:

The power of the main engine and hydraulic station motor is mostly 3kW, with a molding speed of 8-12m/min, low energy consumption and stable production capacity, low equipment maintenance costs, and high cost-effectiveness.

Structural component material/configuration functional characteristics:

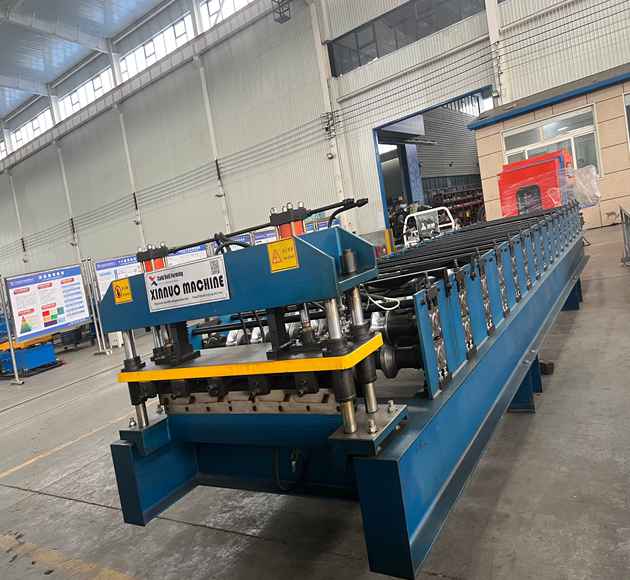

Body frame: 250H steel Ensure overall rigidity and reduce deformation

Forming shaft: 45 # quenched and tempered solid shaft, diameter 70mm, 11 rows of forming shafts, ensuring precise tile shape

Forming wheel: 45 # forged, plated with hard chrome hardness HR55 ° -57 °, wear-resistant and scratch resistant

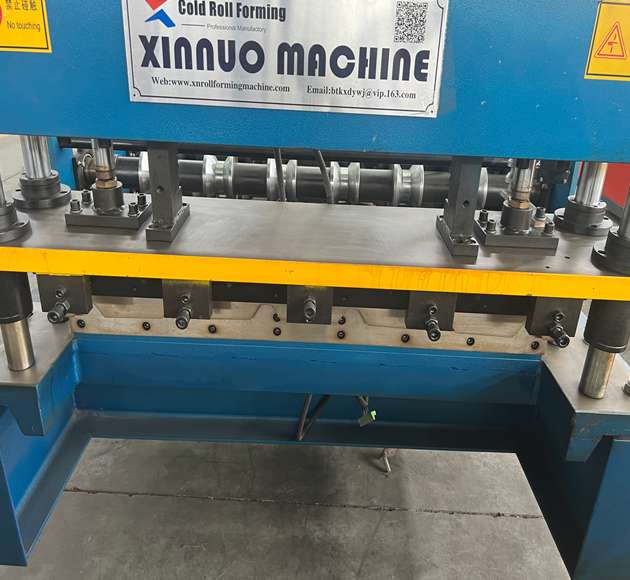

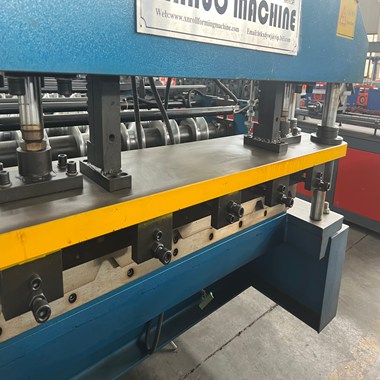

Cutting system: Cr12 quenching tool, hydraulic drive for cutting flat, suitable for 0.2-0.8mm sheet metal

Control system: PLC+encoder+low-voltage electrical automatic fixed length cut-off, parameters can be preset

Transmission mode: Chain wheel chain+cycloidal reducer with stable power and high transmission efficiency
