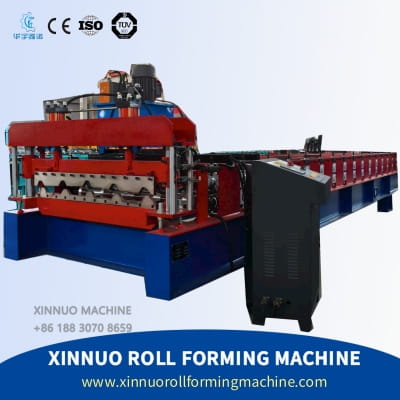

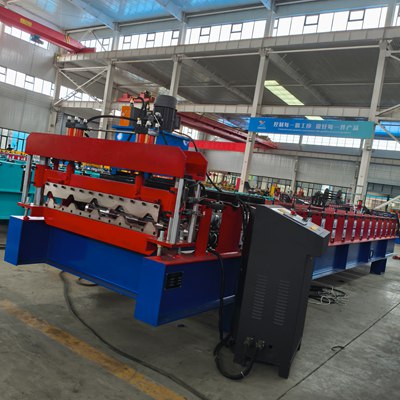

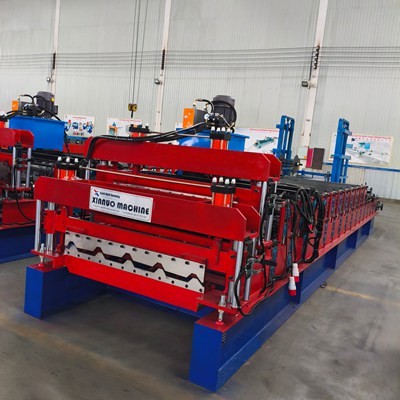

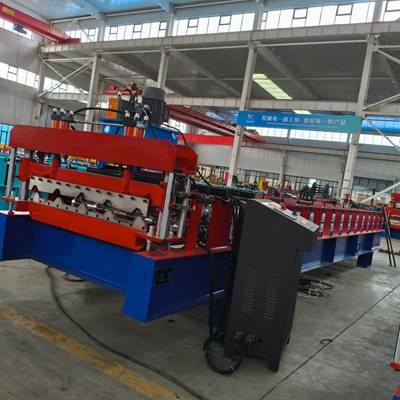

roofing sheets manufacturing machine

Product Introduction

1. Total length of equipment: 6.5 meters, width: 1.4 meters, height: 1.5 meters

2. Motor power: 5.5 kW servo motor system, convenient speed, high accuracy

3. Production speed: 8-12 meters

4. Diameter of profile shaft: 70 millimeters

5. Transmission mode: 1-inch chain transmission

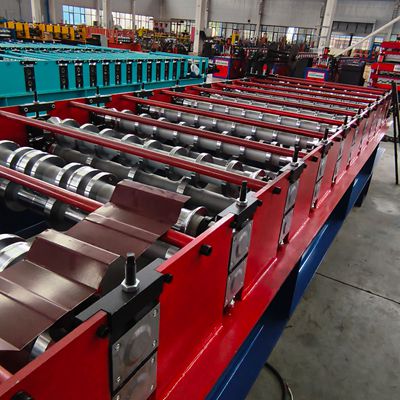

6. Profile wheels: The bearing steel undergoes quenching and precision machining, and the surface must be hard plated.

7. Forming axis of the entire machine: 9/11

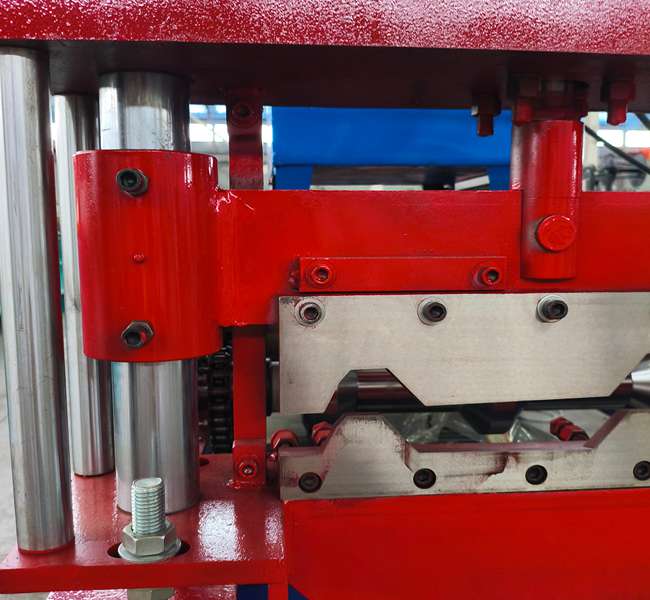

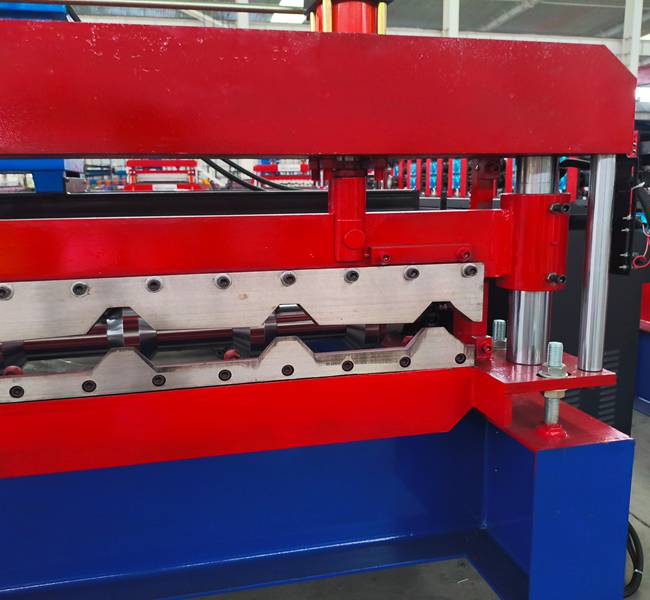

8. Cutting tool: made of Cr12 steel, high temperature quenching, good stability

9. Equipment chassis: 300 # H steel (national standard)

10. Equipment vertical plate: 14mm;

11. Board thickness: 0.3-0.8 millimeters

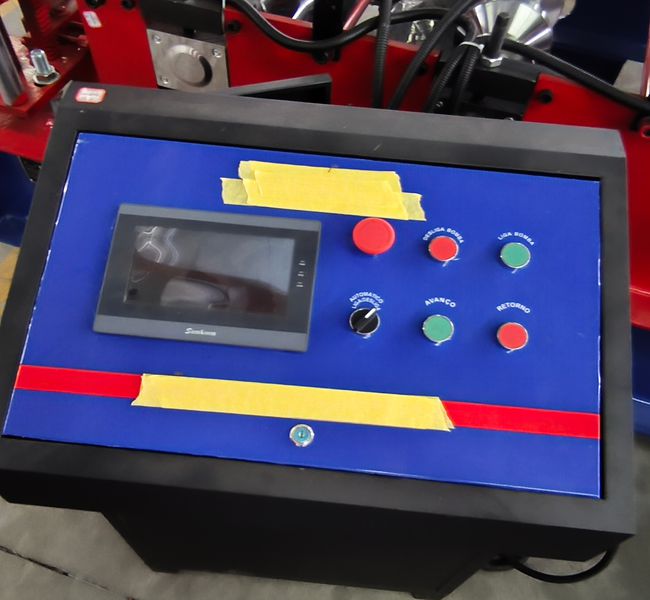

13. Adopting a fully automatic computer touch screen control system to achieve automated production of the entire machine. Batch, workpiece length, quantity, etc. can be adjusted. 14.4kw hydraulic pump station

15. Weight: 4000 kilograms

Complete machine, PLC computer control system, cutting system, hydraulic system.

Efficient customized production

Supports various types of trapezoidal boards within the thickness range of 0.3-1.2 millimeters, adapting to different opening and load requirements.

The automated production line integrates cutting and stacking processes to open, calibrate, and shape, providing an output of 18-30 meters per minute, greatly improving production efficiency.

Intelligent control and stability

The PLC numerical control system reduces waste rate by precisely controlling board length, speed, and cutting accuracy (± 1mm).

High strength cylindrical materials (such as Cr12MoV) can operate stably for a long time with low maintenance costs
