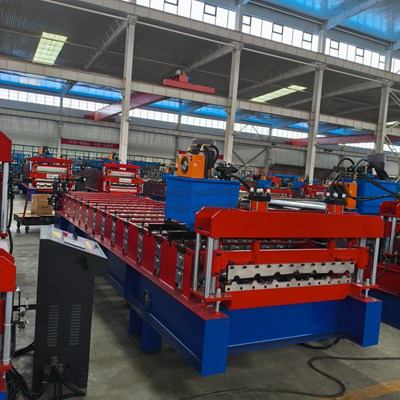

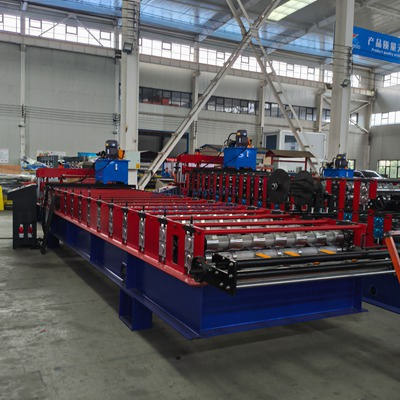

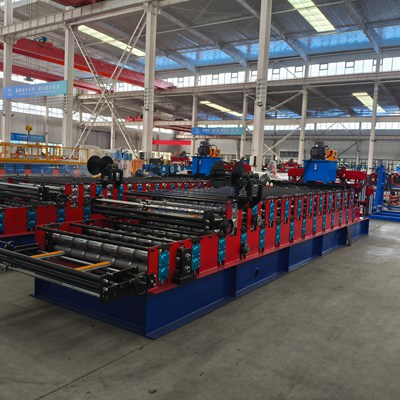

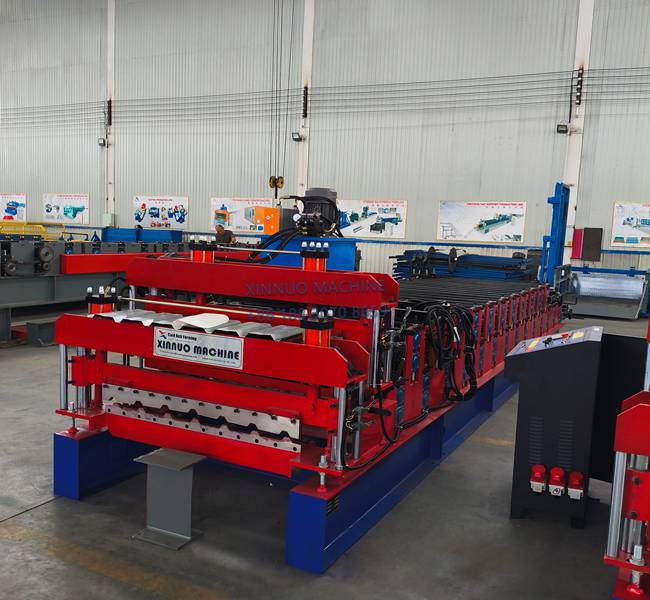

ag panel roll former

The Xinnuo Ag Panel Roll Former is a highly efficient forming machine designed specifically for the production of roof panels for agricultural buildings and industrial plants. Utilizing advanced cold-formed technology, it quickly and accurately produces high-quality agricultural roof and wall panels, offering aesthetically pleasing appearance, high strength, and durability. Its robust structure and automated control system ensure easy operation and low maintenance, significantly improving production efficiency and ensuring consistent product quality.

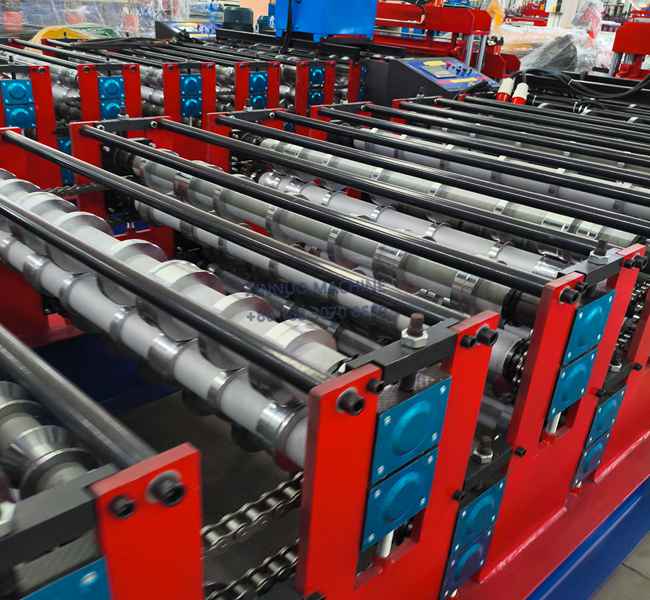

Cylinder rows: 11-13

Dimensions: 5.8 x 1.55 x 1.6 m

Motor power: 3 kW

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

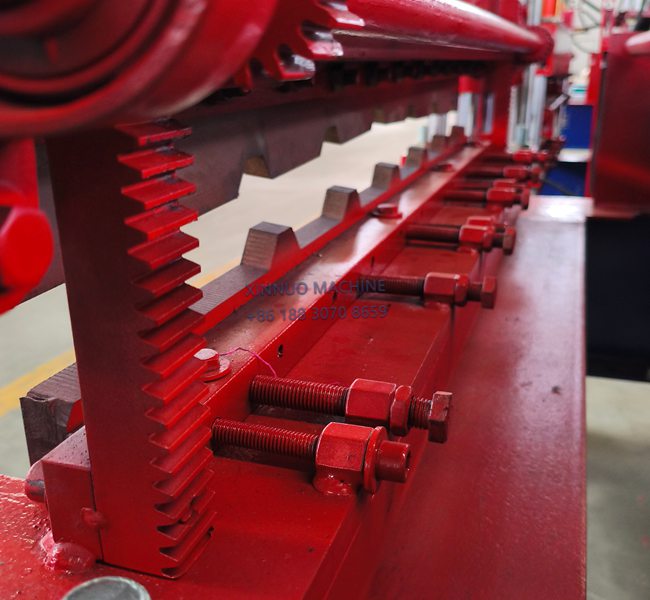

Cutting blade: CR12, hardened at 58°C-60°C

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

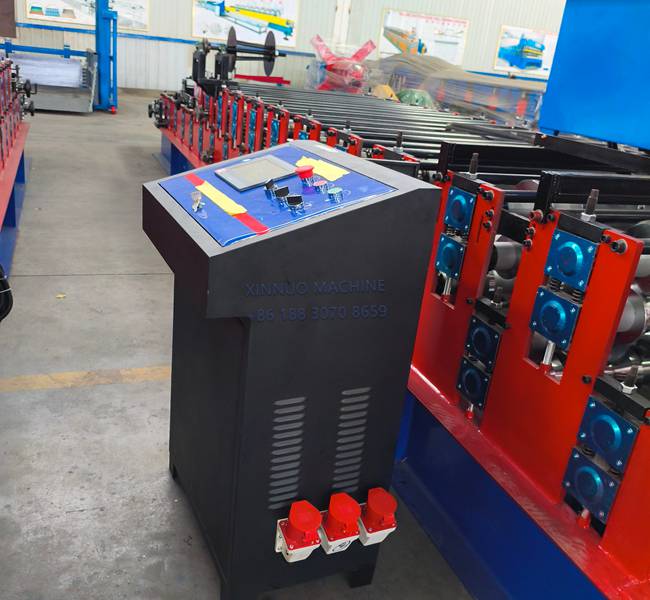

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

Touchscreen: Delta

Coil: 45# forged steel, chrome-plated

Length tolerance: +2 mm

Choosing Xinnuo means choosing reliable quality and professional service. We provide customers with a one-stop solution, including equipment installation, commissioning, training, and comprehensive after-sales support. Whether for large-scale factories or small and medium-sized enterprises, Xinnuo's ag panel roll former is an ideal choice for improving productivity and enhancing competitiveness.

Xinnuo, a professional roll forming machinery manufacturer with over 30 years of industry experience, is equipped with modern machining centers, laser cutting, and CNC equipment to ensure the high precision and stability of each machine. Our ag panel roll formers are not only popular in the domestic market but are also exported to numerous countries and regions in Latin America, Southeast Asia, and Africa, earning widespread acclaim.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide in-person training for your employees/technicians.
