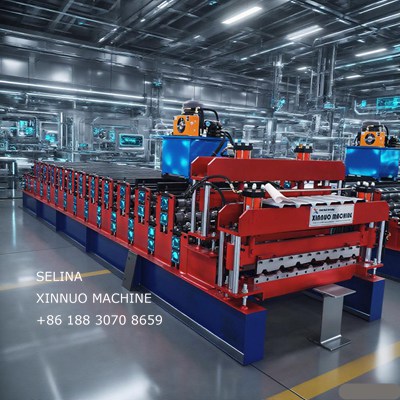

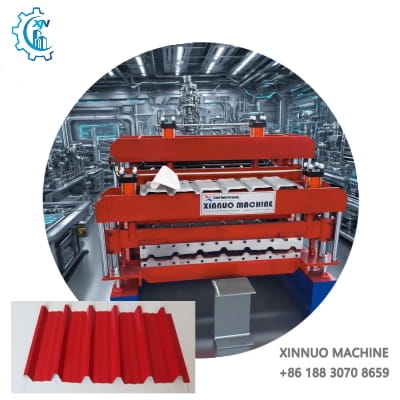

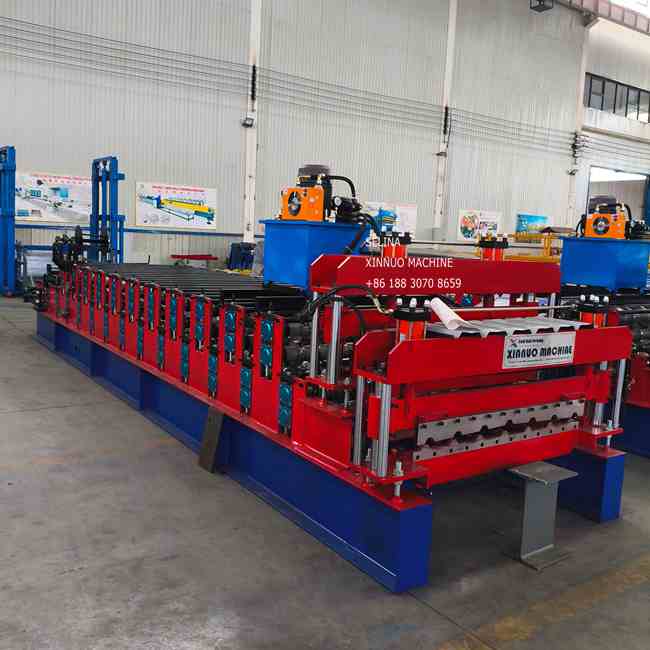

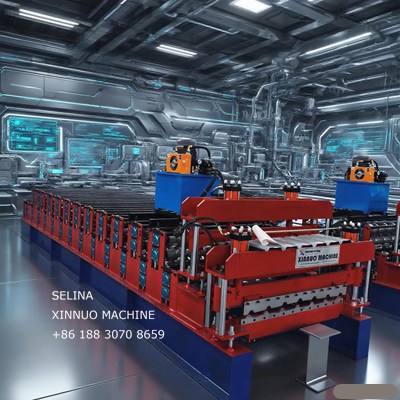

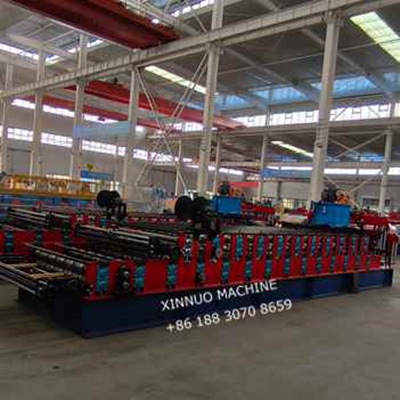

Xinnuo Roof Panel Production Machine for Türkiye

1. Our professional team designed an 840IBR forming machine for a Turkish customer. This machine has been very popular in the market!

2. Roof panels are widely used in various industrial facilities, residential buildings, and public facilities, providing beautiful appearance and durability.

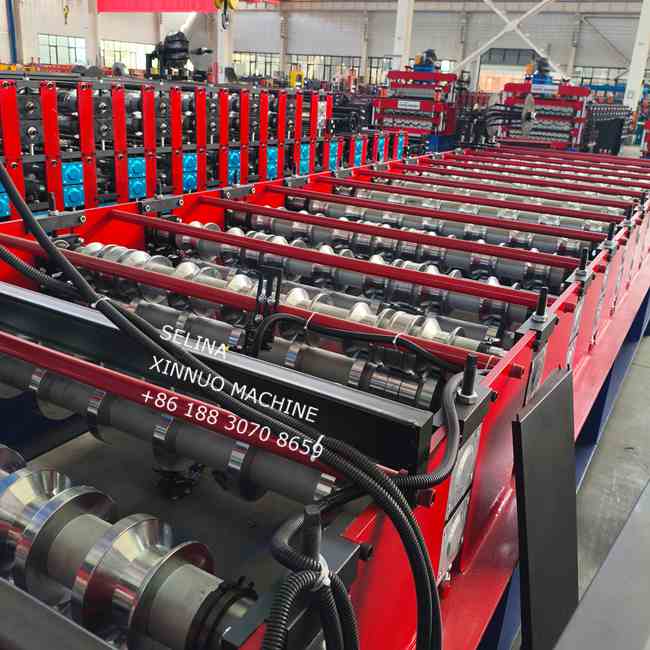

Cylinder: 18 rows

Dimensions: 9.0 x 1.7 x 1.8 meters

Motor power: 5.5 kW

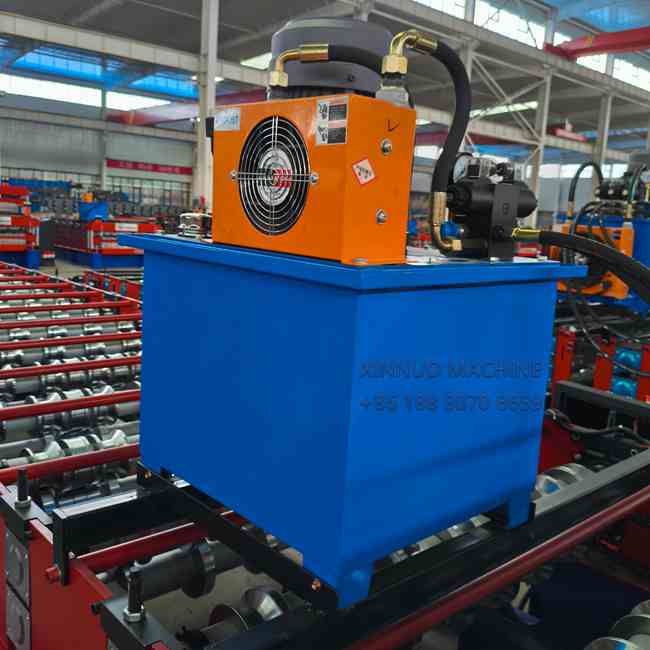

Pump station motor: 4 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

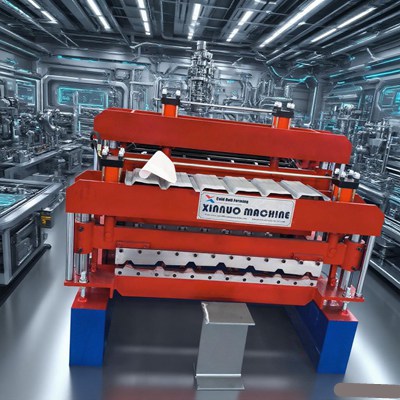

Cutting blade: Chrome-nickel steel hardened at 58°C-60°C

Cylinder diameter: 70 mm

Weight: Approx. 4,800 kg

Machine structure: 350H beam

Machining accuracy: Within 1.0 mm

Machine side plates: 16 mm

Sprocket and endless chain: 1 inch

Voltage: 380 V, 50 Hz, three-phase or according to customer specifications

Control system: PLC (Delta)

Frequency system: Delta

Touch screen, motor drive

Rolled material: Chrome-plated 45# carburized steel

Length tolerance: ±2 mm

Various types of aluminum zinc calcite trapezoidal metal roof forming machines are available for use with corrugated sheets, IBR sheets, or glazed tiles. Roof tiles, with their attractive appearance and durability, are widely used in various industrial facilities, civil buildings, and auxiliary roof panel products.

Xinnuo's trapezoidal panel forming machine is an advanced machine with excellent performance and a wide range of applications. It has earned a good reputation in the industry.

Our machines are expertly designed, with all key components, such as motors, reducers, and bearings, sourced from well-known brands. This ensures stable operation and significantly reduces the likelihood of equipment failure. Equipped with an advanced PLC control system, the machine precisely controls the forming process, ensuring trapezoidal plates are formed with exceptionally high dimensional accuracy and consistent shape. The machine's operator panel layout is intuitive, and its clear and concise button layout provides a user-friendly design, allowing operators to easily perform various operations and settings.
