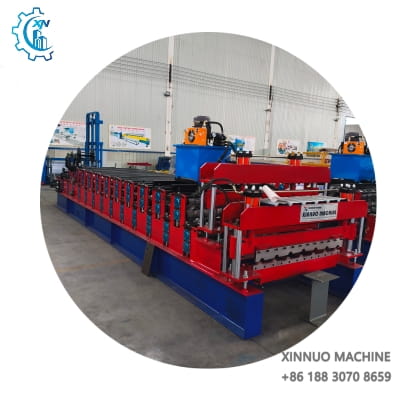

roof panel machine

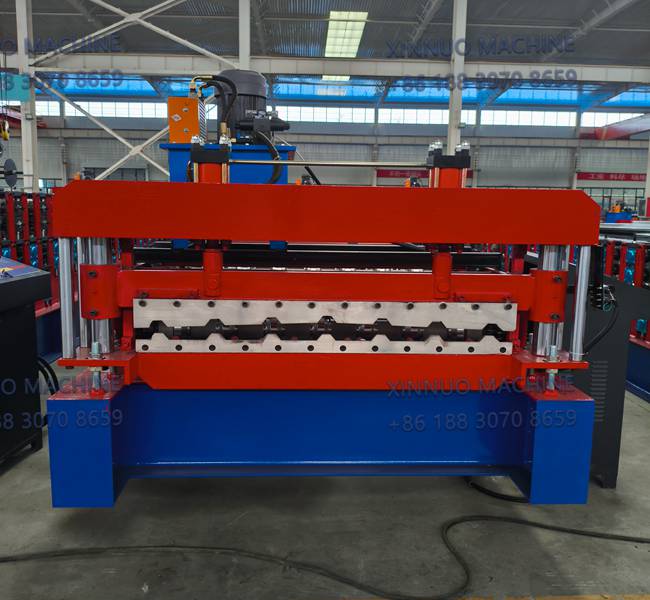

Trapezoidal sheet metal bending machines are among the most preferred pieces of equipment in the roofing industry. These machines are designed to shape sheet materials such as galvanized steel, colored steel, and aluminum into the desired trapezoidal shapes with high precision. At Xinnuo Machinery, we offer state-of-the-art trapezoidal sheet metal bending machines to make your production processes more efficient and economical.

Cylinder rows: 11-13

Dimensions: 5.8 x 1.55 x 1.6 m

Motor power: 3 kW

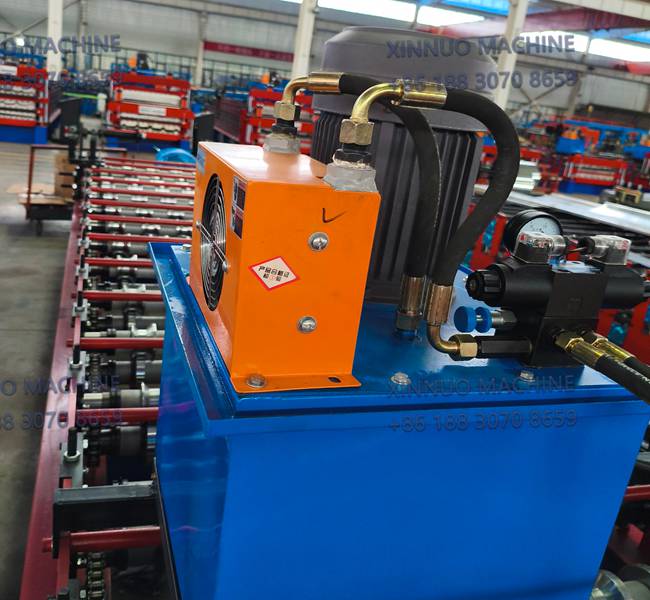

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

Cutting blade: CR12, hardened at 58°C-60°C

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

Touchscreen: Delta

Coil: 45# forged steel, chrome-plated

Length tolerance: +2 mm

The trapezoidal plate bending machine has a user-friendly structure equipped with an automatic feeding system, a precision roll forming station and a touch screen control panel, which can save time in the production process, reduce labor costs and improve product quality.

The machine can be adapted to various trapezoidal shapes according to customer needs. Parameters such as production width, sheet thickness, and trapezoidal height can all be easily adjusted. Furthermore, its durable body and high-quality drum material ensure a long service life and low maintenance costs.

Trapezoidal panel bending machines are a highly profitable investment for building material plants, prefabricated building manufacturers, and roofing companies. They offer the ideal solution for companies seeking to balance quality and fast production in today's competitive market.

After-Sales Service

1. Warranty: Two years, lifetime technical support.

2. Shipping: Within 25 days of receiving the deposit.

3. Warranty: 24 months of free repairs/lifetime paid repairs.

4. Installation and Training

If you visit our factory to inspect the machine, we will guide you through installation and operation, and provide face-to-face training for your staff/technicians.
