double layer metal roofing panel forming machine

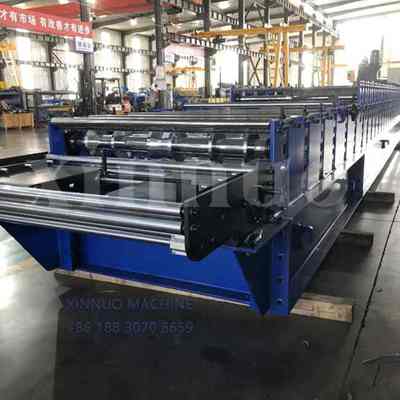

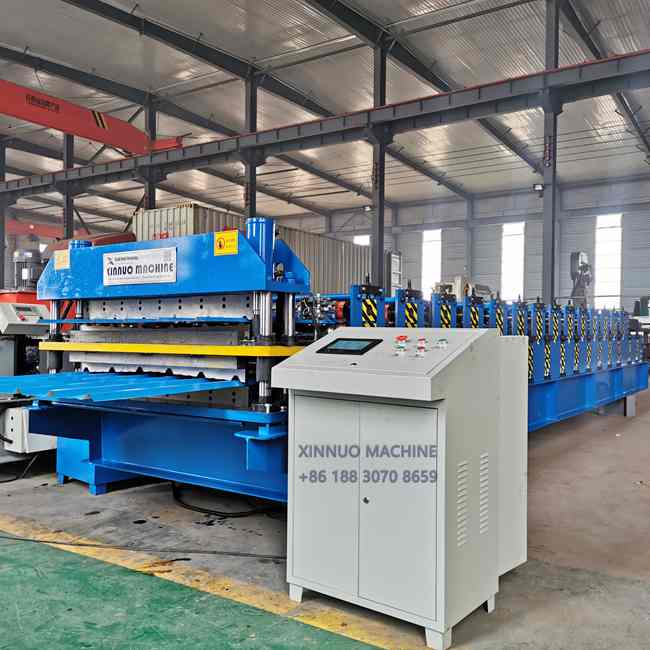

Xinnuo  1020/1000 double-layer roofing sheet forming machine is an advanced machine designed to meet the growing demands of the modern construction industry. It is specifically designed to produce two different roofing sheet profiles in a single system, significantly improving production efficiency and reducing overall investment costs. By combining two sets of forming rollers in a single structure, manufacturers can switch between different profiles without having to change machines, saving production time and space.

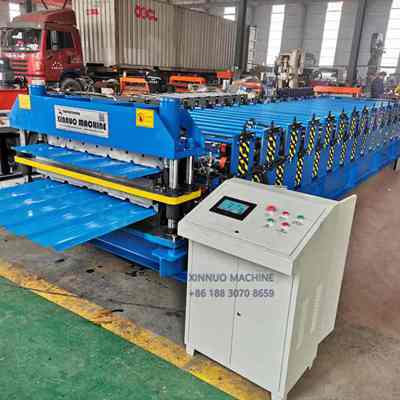

Xinnuo double layer metal roofing panel forming machine

General details

Suitable Material: HRB60 or equivalent(PPGI/PPGL/GI/GL)

Materials thickness :0.3mm-0.8mm

Dimension : About 8.5*1.5*1.5m(L*W*H) , as per the drawing

Length ofthe Sheet  :can set the length according to your infact need. It is controlled by PLC .which can ensure the accuracy of ±1mm.

Cutting:  Automatically stop and cutting when it comes to the set length.

Components Details

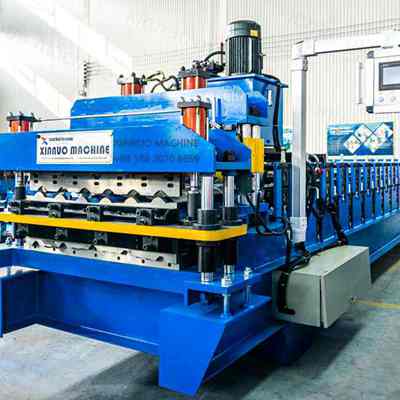

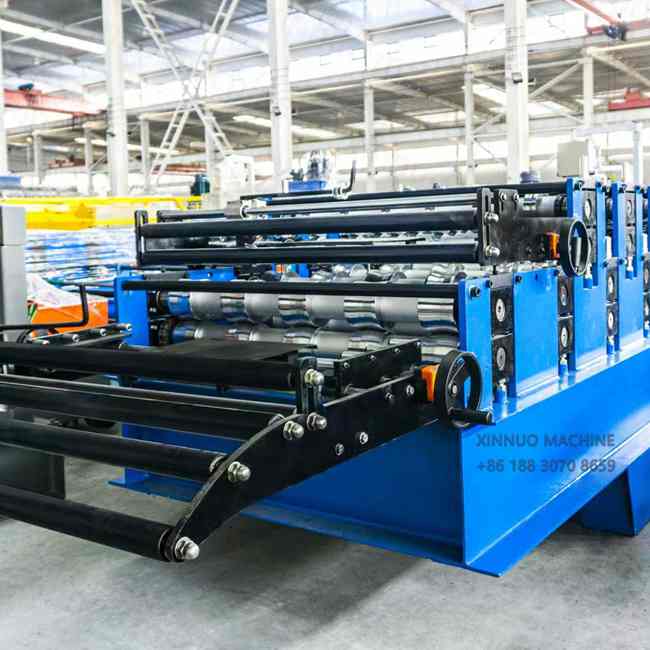

Roller Material :  High grade 45# steel. Hard chrome plating, 0.05mm.

Main Frame : 350# steel. More stable and no shaking.

Middle Plate : 16mm. We use thicker plates to ensure stability of our products.

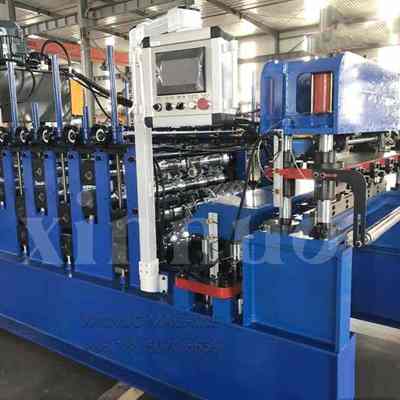

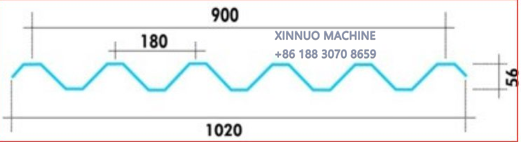

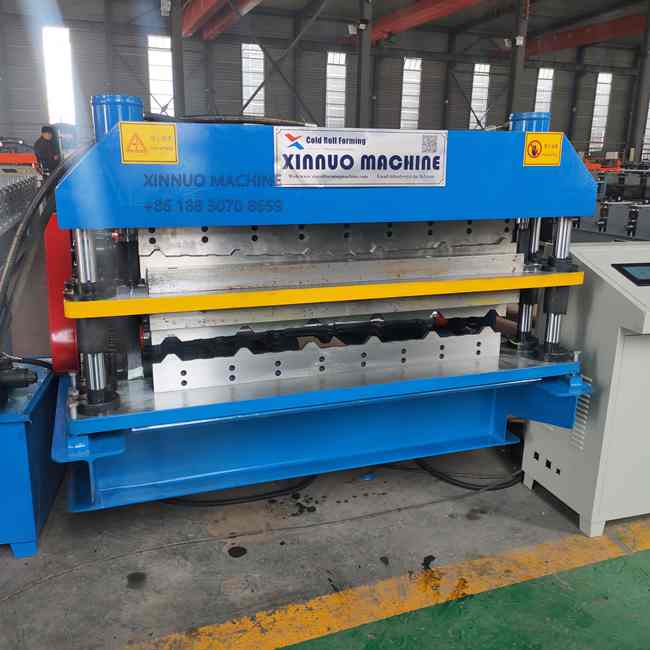

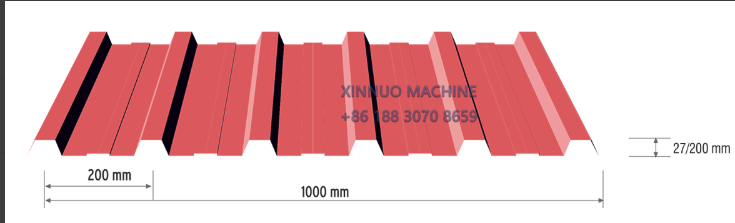

Forming Steps : trapezoid 18 steps,corrugated 13 steps, according to the drawing.

Shaft Material :Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

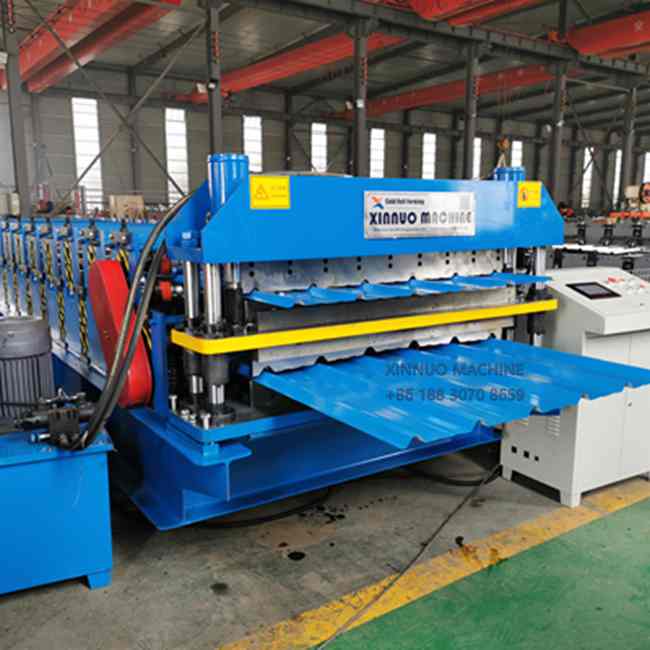

CuttingBlade Material : Cr12, hardness HRC60-62.

Treating process: heat treatment- plane abrasion- wire electrode cutting.

Electric Components

Suitable Power ： 380V, 50 Hz, 3 phase or according to your need.

Screen： 7 inch touch screen, easy to operate.Brand Delta or based on your need

PLC  ：

Delta Brand (Or Panasonic /Siemens )

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter：

delta ;

It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length Measurement Device Omron, made in Japan. It features with high accuracy and stability.
