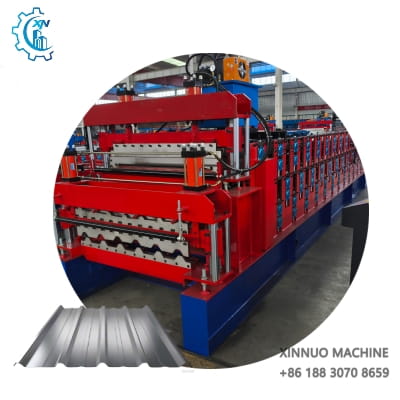

double layer roofing sheet roll forming machine

This equipment is popular in the international market for its excellent forming efficiency and consistent processing quality.

Most of our trapezoidal roof panel forming machines are sold to countries such as Azerbaijan, South Africa, France, Nigeria, Portugal, and India. We can ensure the overlap of finished products with ±1 mm precision control. Dimensions can be customized to your specific size.

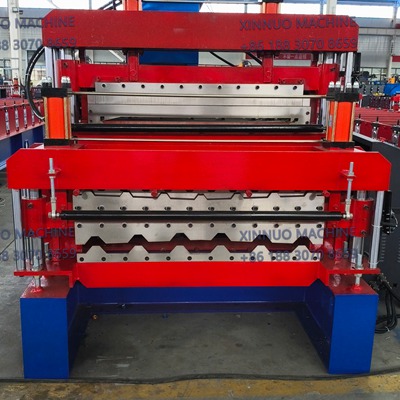

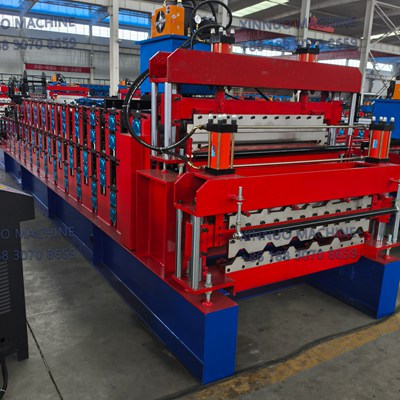

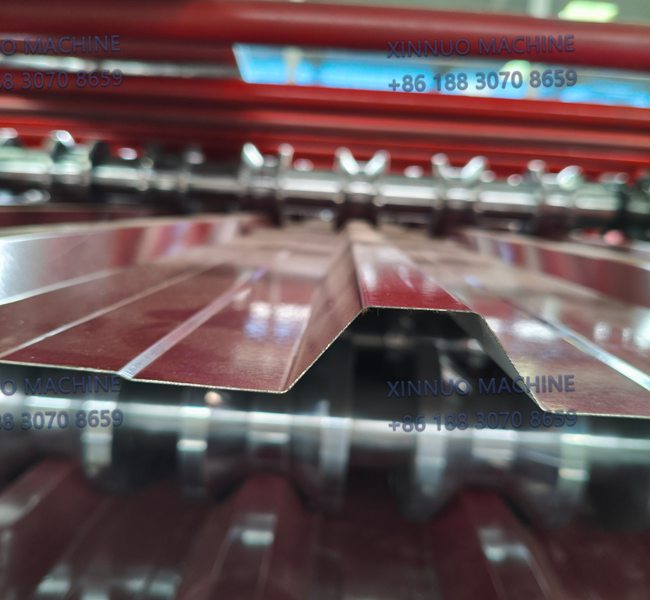

The double-deck trapezoidal panel forming machine can produce two different types of roof panels on a single machine.

Machine Parameters

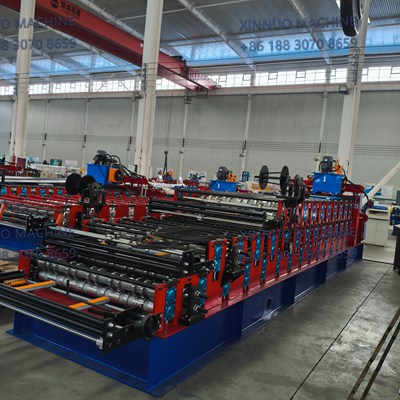

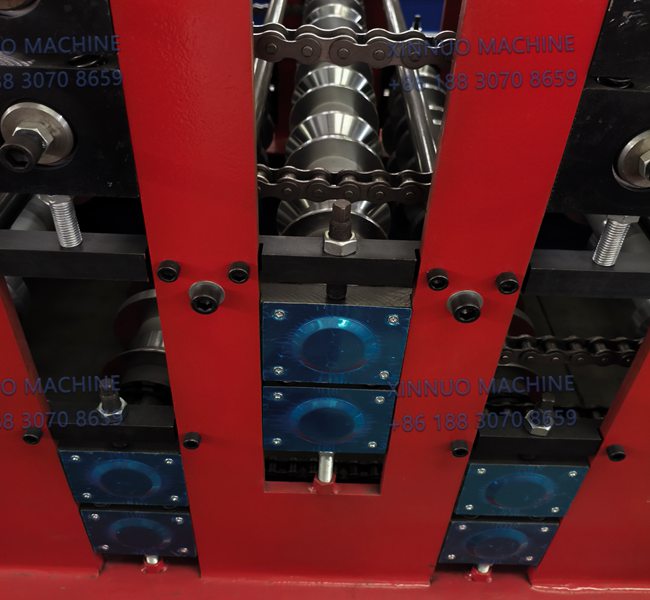

Rolling Station 11-15 Rows

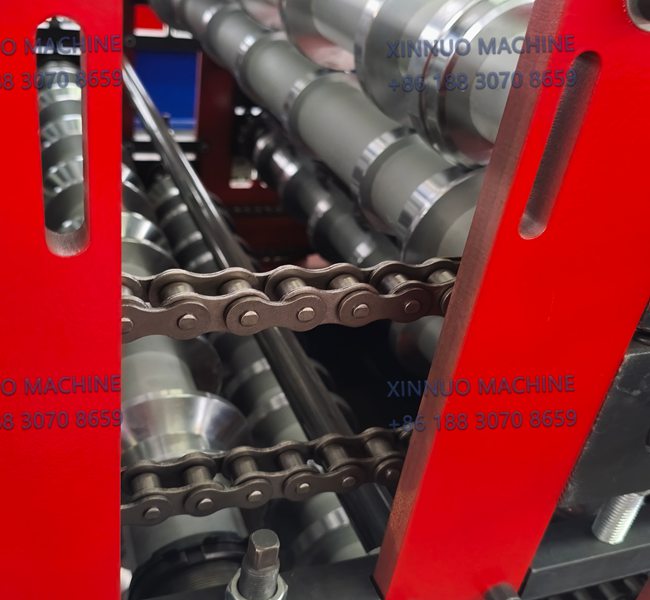

Shaft Diameter 70 mm

Shaft Material 45# with 0.05 mm Chrome Plated.

Rolling Material 45# with 0.05 mm Chrome Plated.

Frame 360 ​​mm C-Beam

Frame Thickness 16 mm

Machine Dimensions Approx. 6.8*1*1.5 m

Machine Weight Approx. 5.5 tons

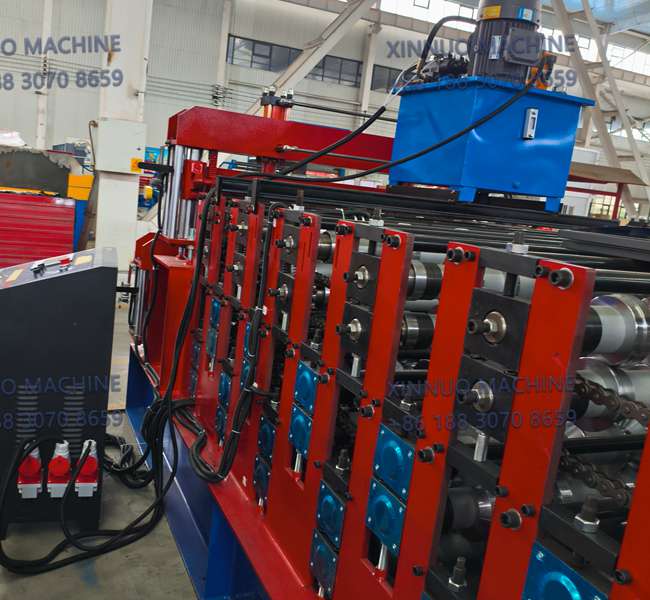

Operating Mode Hydraulic Automatic

Operating Speed ​​General Speed ​​8-20 m/min

Machine Color According to Customer Requirements

In terms of professionalism, we have a technical team of experienced engineers. From the research and development of core components to the assembly and commissioning of complete machines, we strictly adhere to international standards at every stage. Whether it's controlling woodworking precision or optimizing equipment operating efficiency, we can deliver solutions that far exceed the industry average.

More importantly, we recognize that every customer's production needs are unique. Therefore, we have created a comprehensive, customized service system that allows customers to flexibly customize machine parameters, functional modules, and even appearance design based on their production scale, processing material properties, and specific process requirements. From initial requirements communication to solution design, prototyping, and final delivery, we provide one-on-one, personalized service throughout the entire process, ensuring that each customized machine perfectly fits the customer's production process and helps them achieve improvements in both production efficiency and product quality.

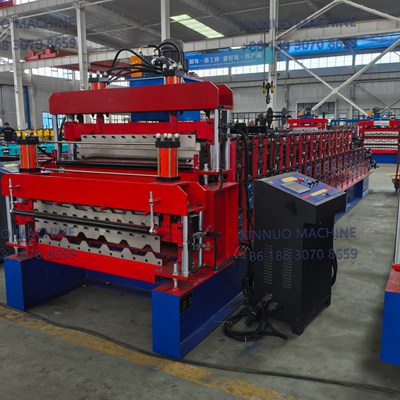

Xinnuo's trapezoidal sheet metal bending machines stand out with features such as long-lasting components, hydraulic cutting systems, touch-screen PLC control panels, and quick mold changes. Their ease of use, low maintenance costs, and high production capacity ensure our customers a maximum return on investment.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide face-to-face training for your employees/technicians.
