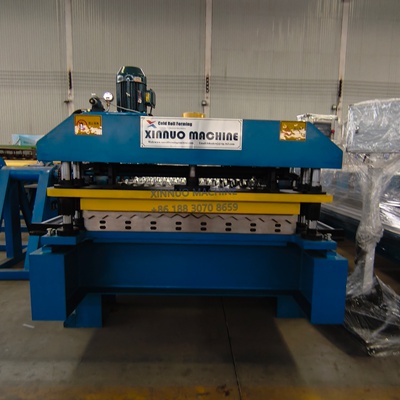

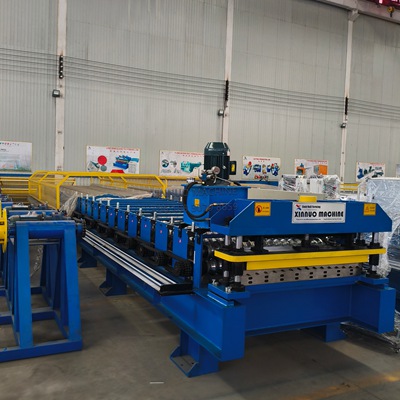

corrugated sheet making machine

This equipment is popular in the international market for its excellent forming efficiency and consistent processing quality.

Most of our trapezoidal roof panel forming machines are sold to countries such as Azerbaijan, South Africa, France, Nigeria, Portugal, and India. We can ensure finished product overlap with an accuracy of ±1 mm. Dimensions can be customized to your specific size.

Motor power: 3 kW

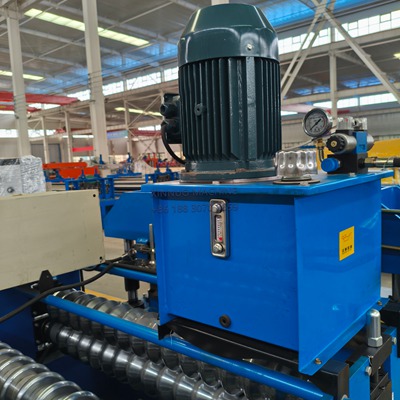

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

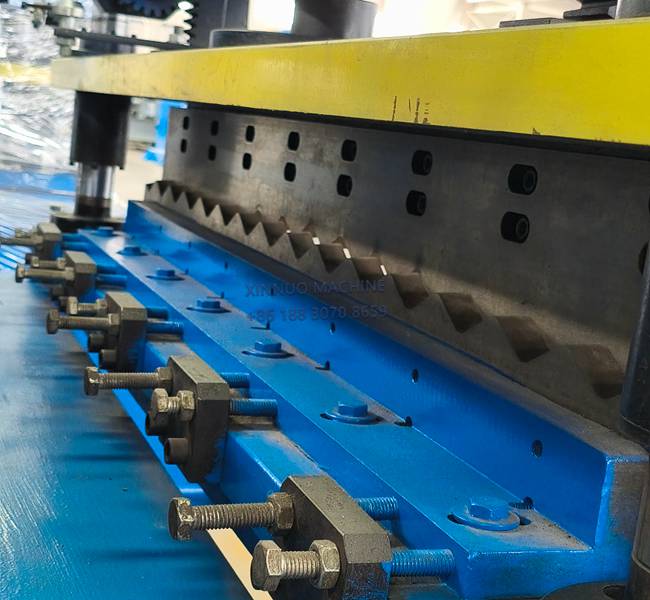

Cutting blade: CR12, hardened at 58°C-60°C

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

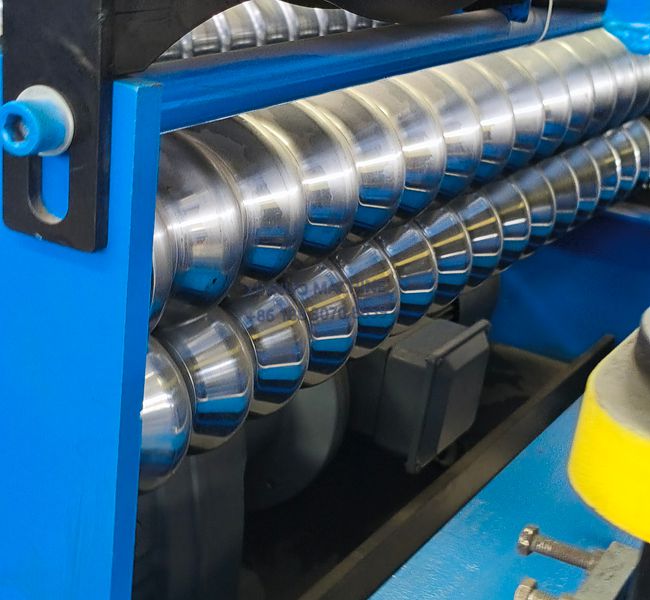

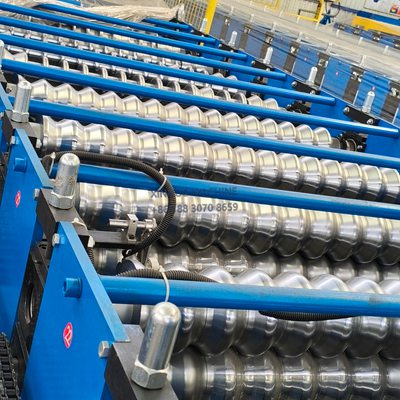

It is designed specifically to meet the high-quality roofing material demands of the modern construction industry. Utilizing internationally leading cold roll forming technology, this machine utilizes precise roller pressing and a scientific forming process to efficiently and stably produce aesthetically pleasing, sleek arc corrugated roof panels. Not only does this product boast a more modern design, but the resulting panels also possess strong load-bearing capacity and superior compressive resistance, meeting the high-standard roof structure requirements of various industrial plants, logistics warehouses, large markets, stadiums, garages, and other buildings.

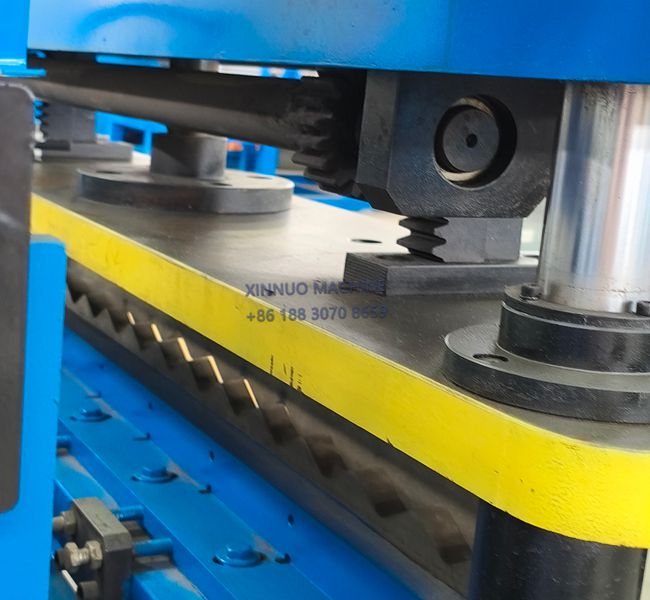

The introduction of an automated control system facilitates operation, significantly improving production efficiency while reducing manual intervention and ensuring accurate and consistent product dimensions. The rationally designed hydraulic cutting system ensures a clean, burr-free cut, enhancing both product quality and production safety.

The roof panels produced by these machines have demonstrated exceptional performance in practical applications, boasting strong load-bearing capacity and excellent weather resistance, capable of withstanding severe weather conditions such as wind, rain, and snow, effectively extending the lifespan of buildings. Choosing Xinnuo means choosing a guarantee of high efficiency, quality, and reliability.
