corrugated sheet machine

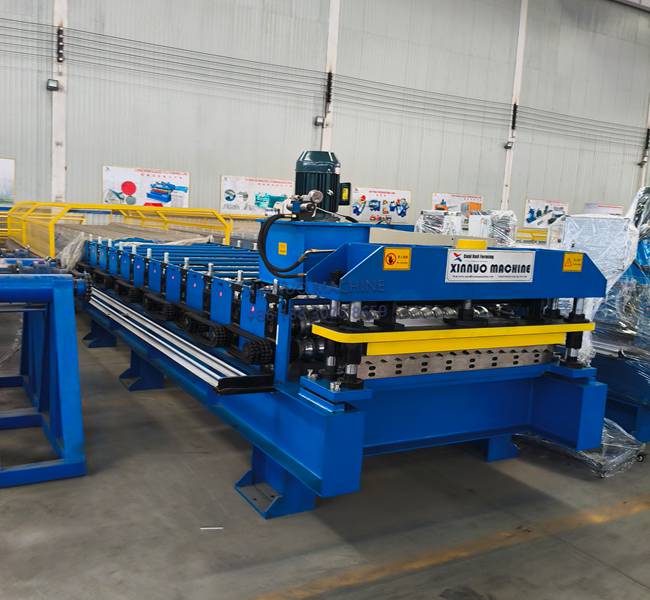

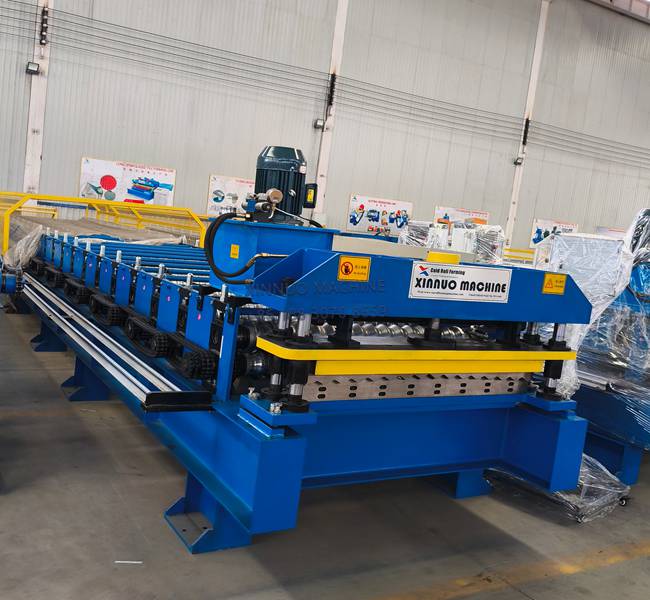

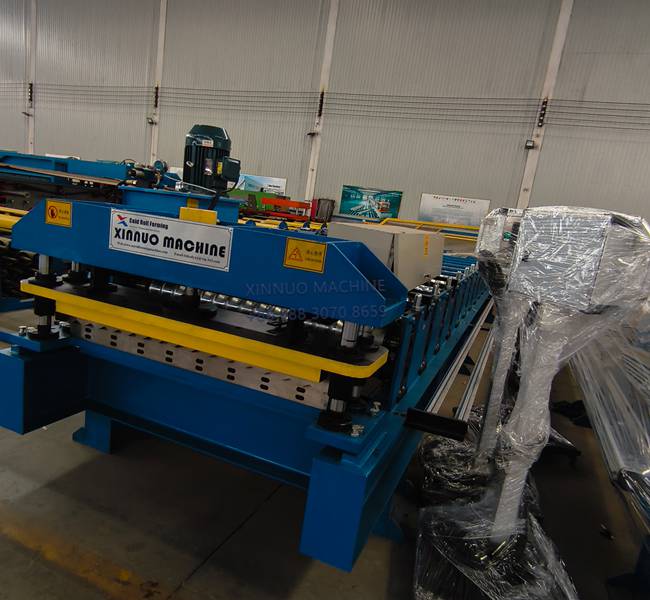

The Xinnuo arc corrugated roof panel forming machine is a highly efficient and durable machine designed specifically for the modern construction industry. Leveraging advanced cold-formed technology and a sophisticated control system, it can rapidly and reliably produce high-quality arc corrugated roof panels. These panels not only offer aesthetically pleasing appearance and smooth lines, but also possess strong load-bearing capacity and compressive strength, making them ideal for use in factories, warehouses, garages, stadiums, and various large-scale construction projects.

Cylinder rows: 11-13

Dimensions: 5.8 x 1.55 x 1.6 m

Motor power: 3 kW

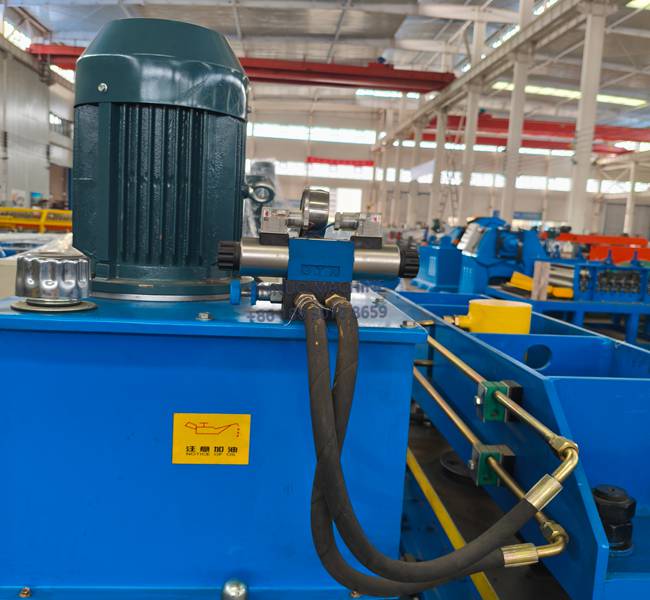

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

Cutting blade: CR12, hardened at 58°C-60°C

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

Touchscreen: Delta

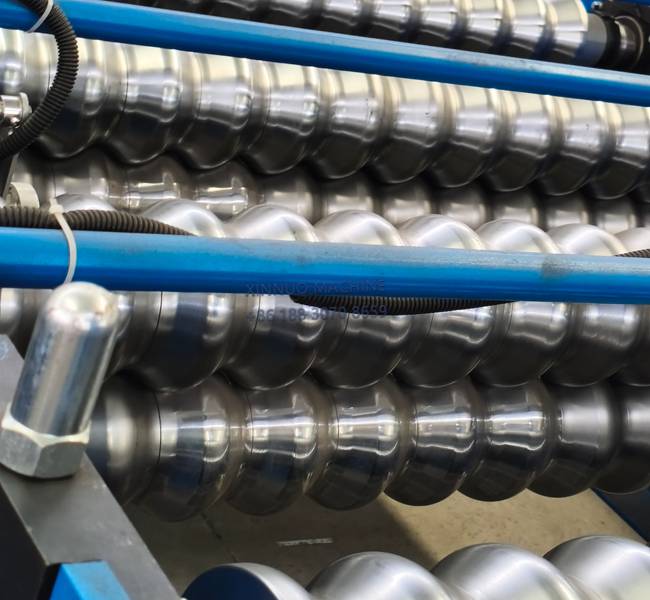

Coil: 45# forged steel, chrome-plated

Length tolerance: +2 mm

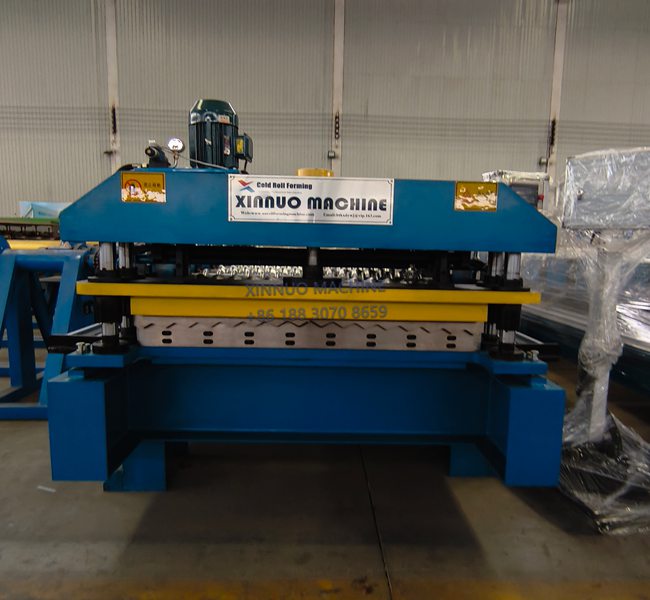

The forming machine is made of high-quality steel and advanced manufacturing technology, with a solid structure and stable operation. Its automated control system can significantly improve production efficiency, reduce manual operations, and ensure that each roof panel has accurate dimensions and uniform corrugations, thus ensuring product consistency and high quality. The machine is equipped with a hydraulic cutting system and high-strength rollers, further improving production continuity and durability.In terms of energy conservation, the Xinnuo arc corrugated roof panel forming machine has a rational design and efficient power output, which can reduce energy consumption while maintaining excellent production performance. In addition, the equipment is simple to operate and easy to maintain. Even first-time operators can quickly master its use after simple training.

With its superior performance and stable quality, Xinnuo's arc-shaped corrugated roof panel forming machines have earned widespread acclaim in domestic and international markets. The panels they produce not only have strong load-bearing capacity but also offer excellent wind and snow resistance, effectively extending the life of the building. Choosing Xinnuo means choosing a guarantee of high efficiency, quality, and reliability.
