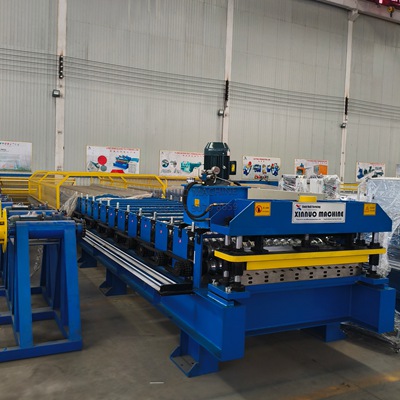

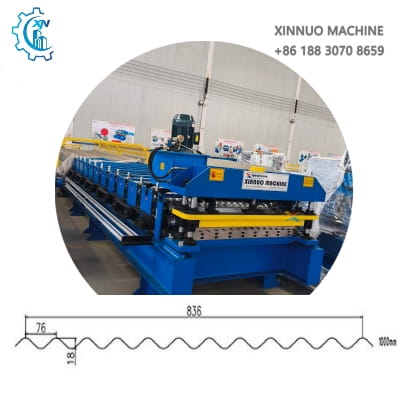

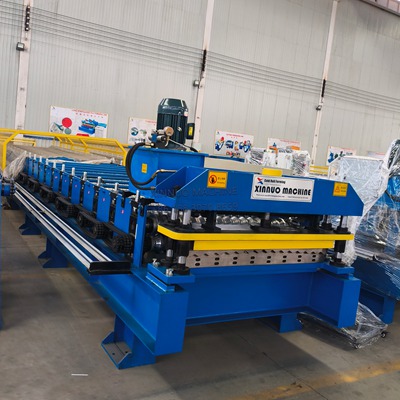

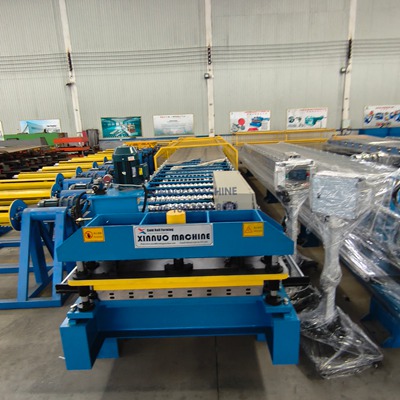

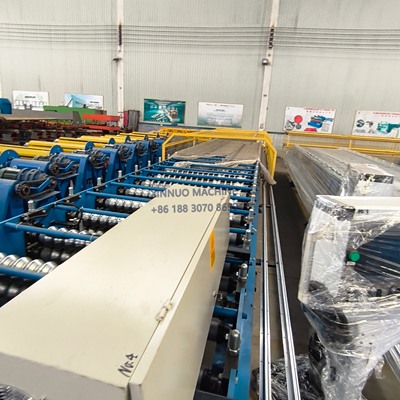

corrugated sheet roll forming machine

Xinnuo's affordable, high-quality corrugated board forming machines are essential core equipment in the modern construction industry. Primarily used for producing various types of corrugated roofing and wall panels, these machines offer simple operation, a high degree of automation, and high production efficiency. Whether used for residential roofs, industrial plants, or warehouses, they deliver precisely formed, high-quality board. Xinnuo's machines utilize internationally advanced cold-bend forming technology and durable alloy steel rollers to ensure smooth, crisp corrugated board surfaces, ensuring both strength and durability, ensuring long-term use in diverse climates and environments.

Cylinder rows: 11-13

Dimensions: 5.8 x 1.55 x 1.6 m

Motor power: 3 kW

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

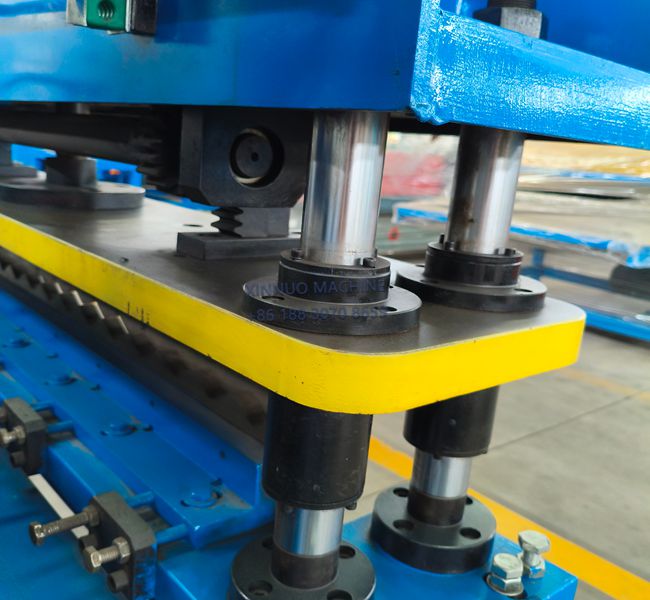

Cutting blade: CR12, hardened at 58°C-60°C

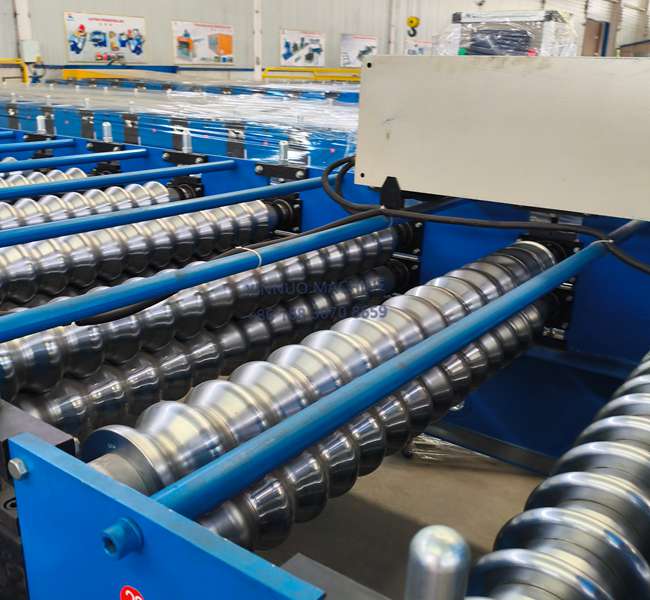

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

Touchscreen: Delta

Coil: 45# forged steel, chrome-plated

Length tolerance: +2 mm

As a professional roll forming equipment manufacturer, Sino Machinery has over 20 years of industry experience, with products exported to numerous countries and regions, including South America, Turkey, the Middle East, and Southeast Asia. We not only provide standard models, but also customize solutions based on customer needs, helping customers improve production capacity and market competitiveness.

At the same time, Xinnuo adheres to the concept of "quality first, service first" and has established a complete after-sales service system to ensure that customers have no worries during the installation, commissioning and use of equipment. Choosing Xinnuo means choosing high quality, affordable prices and reliable protection.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide in-person training for your employees/technicians.
