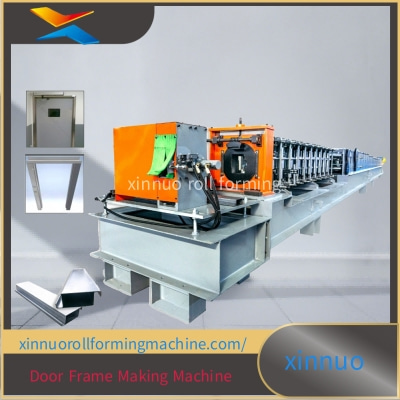

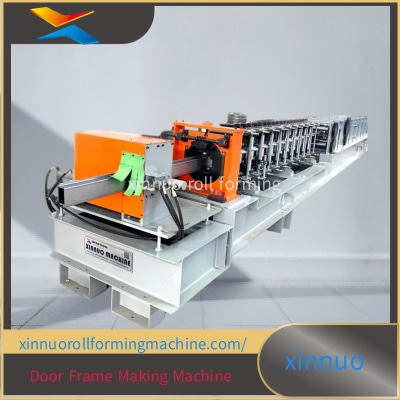

Xinnuo Door Frame Making Machine: Redefine Door Frame Production
Xinnuo Door Frame Making Machine is a game - changer in the field of door frame manufacturing. It represents a perfect blend of innovation, precision, and efficiency, designed to meet the evolving needs of the construction and furniture industries.
1. Unmatched Material Adaptability
This machine is a master of versatility when it comes to material processing. It can seamlessly handle color steel, GI (galvanized iron), and even some special - coated metal sheets. Whether you're crafting door frames for modern high - rise buildings, traditional residential homes, or industrial warehouses, it ensures that each frame meets the highest quality standards. The ability to work with materials of different thicknesses, from 0.3mm for lightweight, elegant interior frames to 0.8mm for heavy - duty, security - focused exterior ones, makes it a truly all - round solution.
2. Precision - Driven Roller System

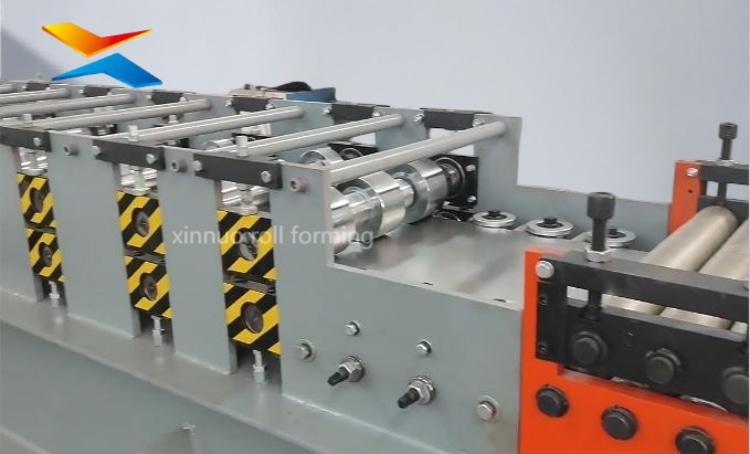

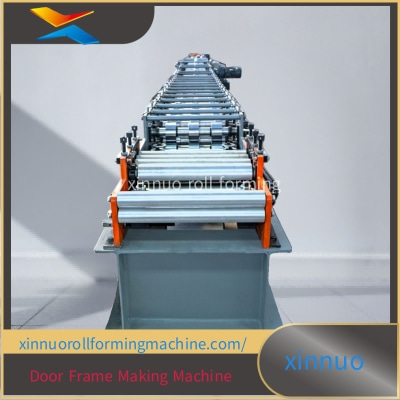

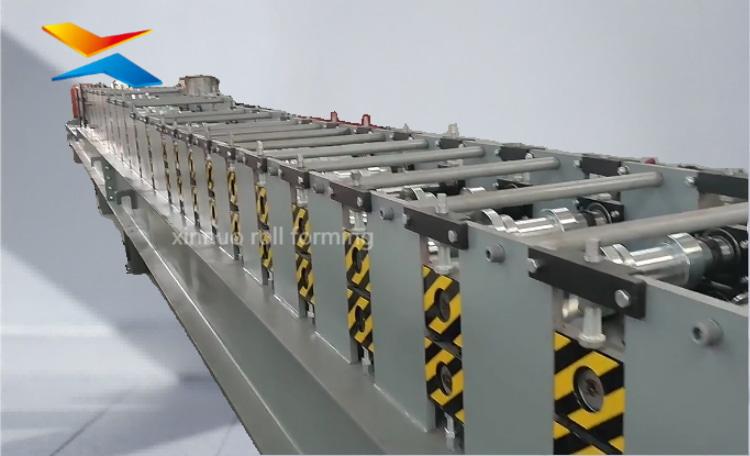

At the heart of the machine lies its 16 - 18 rows of roller stations. These aren't just ordinary rollers; they are engineered to perfection. The 45# forging steel rollers are not only durable but also precisely machined to ensure that every bend, every contour of the door frame is formed with absolute accuracy. As the metal sheet passes through these rollers at a speed of 8 - 10m/min, the machine maintains a consistent forming process, resulting in door frames that have uniform dimensions and smooth surfaces, eliminating the need for post - production adjustments in most cases.
3. Structural Integrity and Durability

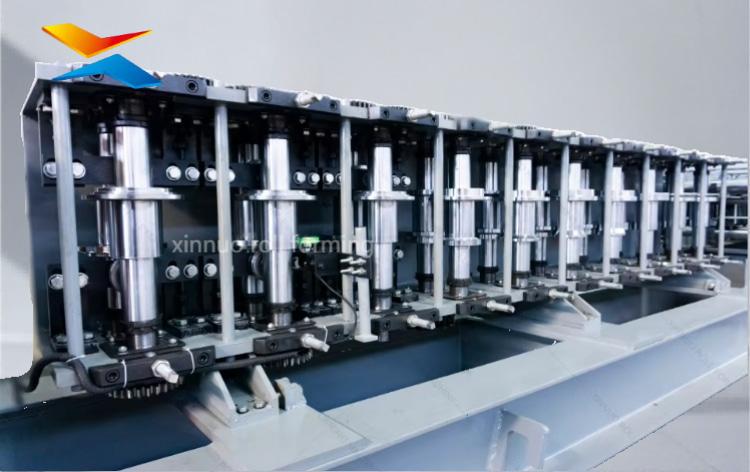

- Shaft and Side Plates: The 48mm diameter shaft is a robust component that transfers power smoothly throughout the forming process. Paired with 16mm thick steel plate side plates, the machine's structure is like a fortress. It can withstand the continuous mechanical stresses of high - volume production, ensuring that there is no structural deformation over time, which is crucial for maintaining the precision of door frame manufacturing.
- Long - term Reliability: Thanks to the high - quality materials used in key components like rollers (45# forging steel) and the solid structural design, the machine offers long - term reliability. This means lower maintenance costs and fewer production interruptions, allowing businesses to plan their production schedules with confidence.
4. Intelligent Power Management
The power configuration of the Xinnuo Door Frame Making Machine is a testament to its intelligent design. The 4kw main motor provides the necessary torque for the roll - forming process, while the 3kw hydraulic power system complements it by handling tasks such as precise material feeding and controlled pressure application during forming. Operating on a 380V 50Hz 3 - phase power supply, it is not only compatible with standard industrial setups but also optimized for energy efficiency. This intelligent power management ensures that the machine runs smoothly while keeping operational costs in check.
5. Beyond Production: Customization and Innovation

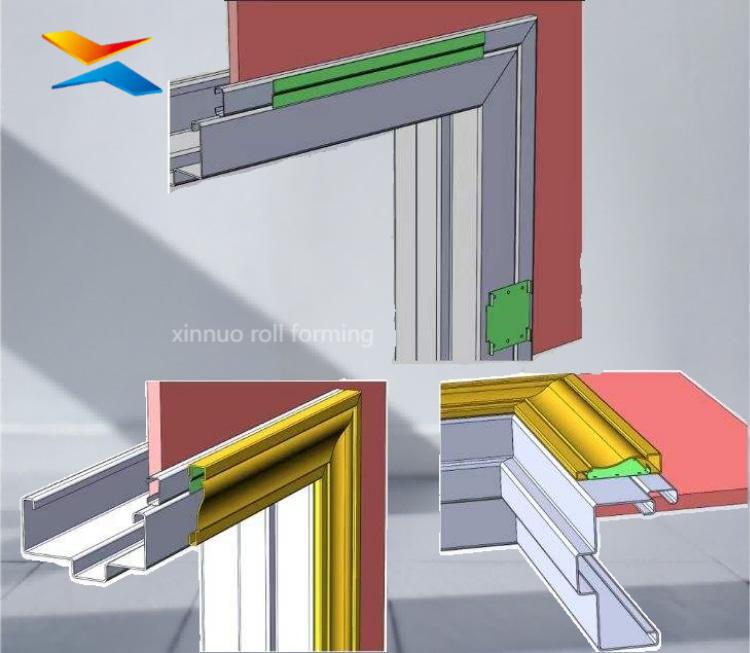

What sets this machine apart is its potential for customization. Xinnuo understands that different markets and customers have unique requirements. The machine can be adapted to produce a variety of door frame profiles, from simple, minimalist designs to more elaborate, decorative ones. It also paves the way for innovation in door frame design, allowing manufacturers to experiment with new shapes and structures, thus staying ahead in a competitive market.
In a world where quality, efficiency, and innovation matter, the Xinnuo Door Frame Making Machine stands tall. It is not just a piece of equipment; it is a catalyst for transforming the way door frames are made, enabling manufacturers to deliver products that are not only of superior quality but also tailored to the diverse needs of the market. Whether you are a small - batch producer or a large - scale manufacturer, this machine is your key to unlocking new possibilities in door frame production.
