Roof Panel Stacker Machine

Overview & Functionality

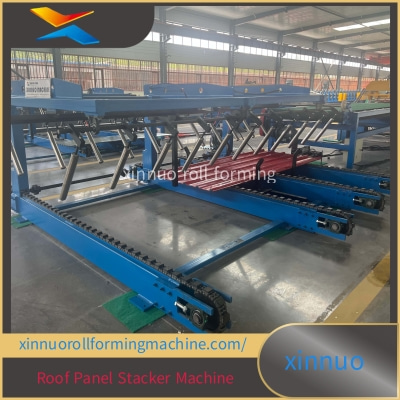

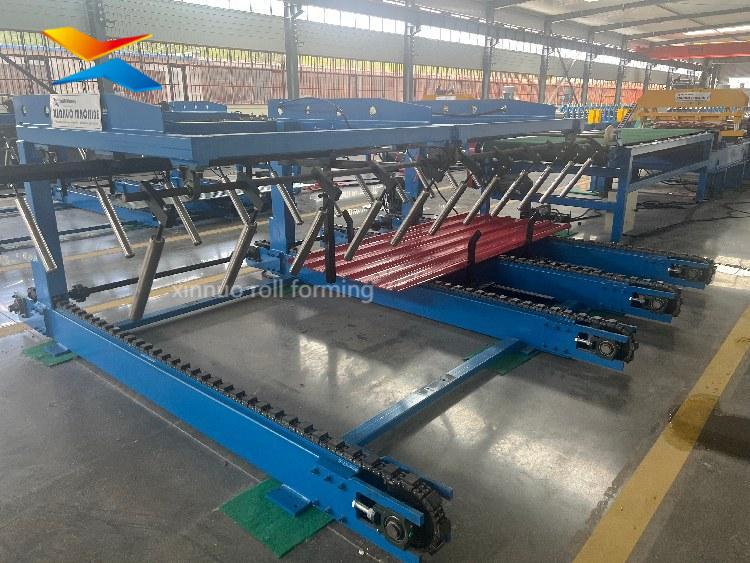

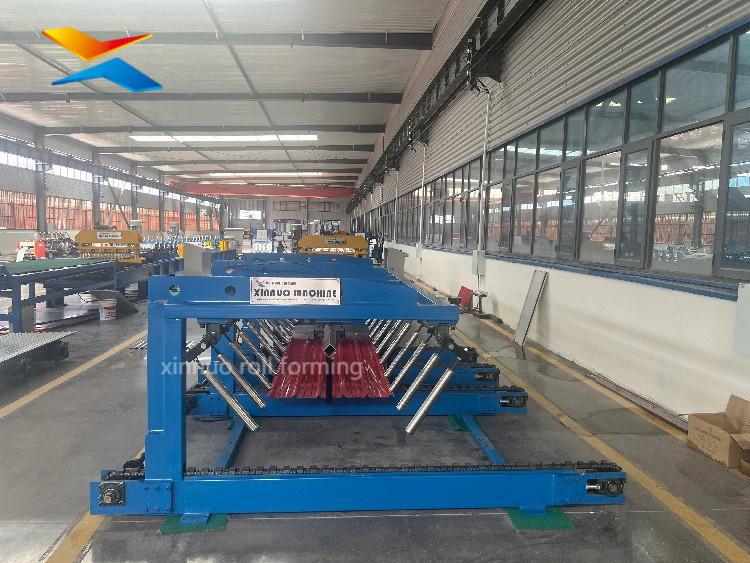

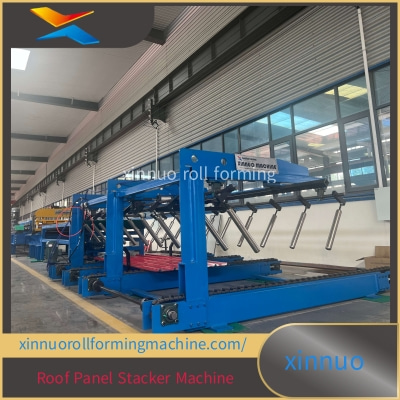

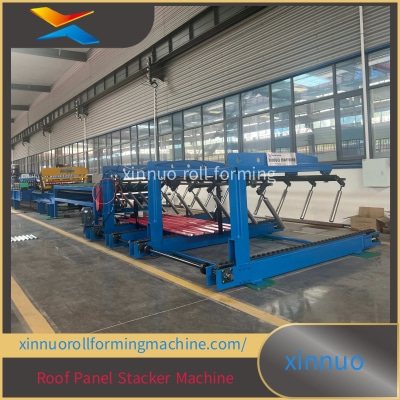

Xinnuo’s Roof Panel Stacker, also known as the Automatic Stacker, is designed to integrate seamlessly at the end of roof panel roll forming lines. This auxiliary device automatically receives finished roof panels, stacks them on a platform, and prepares them for forklift removal. The result is significantly reduced manual labor and enhanced production efficiency .

Technical Specifications

Maximum stacking length: Up to 6 m per panel, making it suitable for long roof profiles

Maximum stacking thickness: Around 300 mm, depending on panel type

Maximum stacking weight: Approximately 1 ton of panels, depending on payload and configuration

Speed & Power: Driven by a run‑out motor (~0.75 kW), supporting up to ~36 m/min of panel throughput

Control System: PLC-based automation ensures precise operation timing and synchronization with the forming line

Mechanical Features

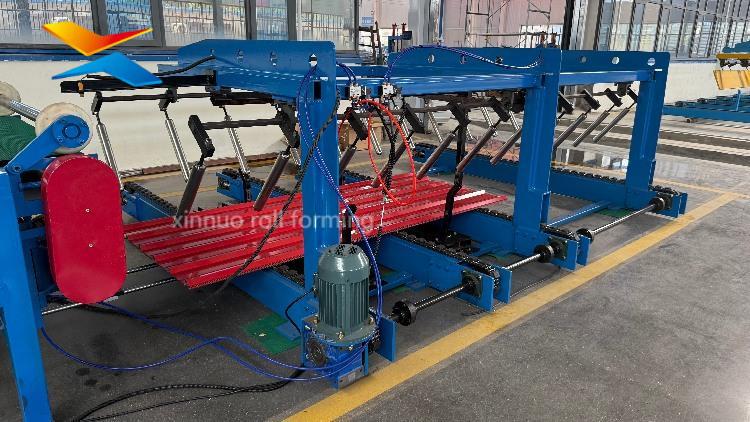

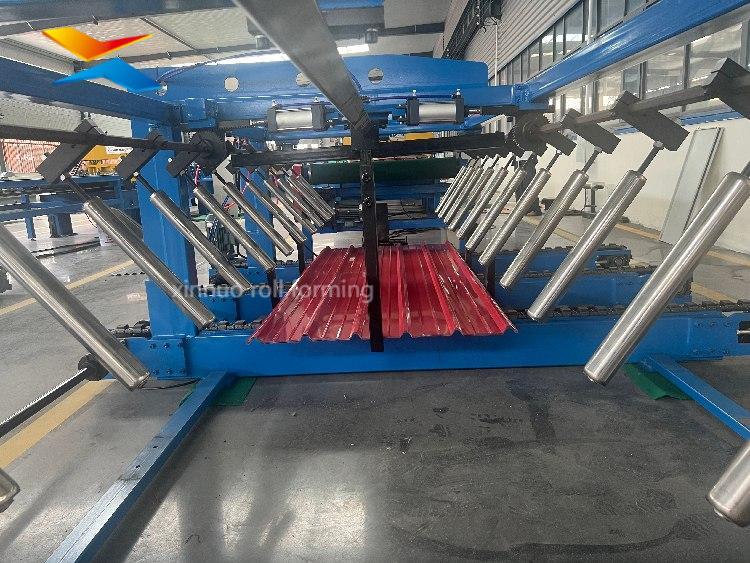

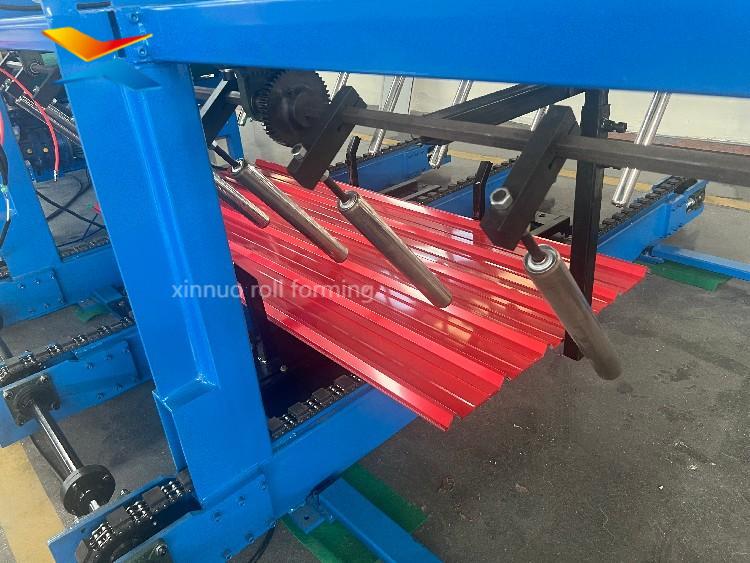

Panels are delivered and stacked via a motor-reducer driven delivery system. Pneumatic cylinders control swing arms moving vertically to support panels during stacking. The platform can shift laterally via a reducer mechanism for neat alignment and ease of removal .

Operational Benefits

Labor savings: Eliminates manual handling of heavy or long roof panels, enhancing safety and lowering personnel costs

Automation: Fully automated stacking synchronizes with roll forming throughput, minimizing bottlenecks

Customization: Xinnuo can adapt design parameters—such as platform height, panel width, and stacking layout—to match specific line requirements

Quality & Support

Built to Xinnuo’s strict manufacturing standards (factory-direct supply with export certifications), the stacker adheres to CE and ISO norms where applicable. Xinnuo also offers technical advice, operator training, and global after‑sales service following their international export practices .

Ideal Use Cases

This stacker is particularly suited for high-speed production lines that output long metal roof sheets or sandwich panels. It pairs especially well with Xinnuo’s IBR, corrugated, trapezoidal, or double-layer panel roll forming machines, facilitating seamless, high-output roofing panel stacking .

In summary, Xinnuo’s Roof Panel Stacker Machine offers reliable, PLC‑controlled automatic stacking of up to 6 m roof panels, with robust pneumatic and motorized systems enabling efficient, safe, and labor-saving operation—an excellent fit for modern roll‑forming production lines.
