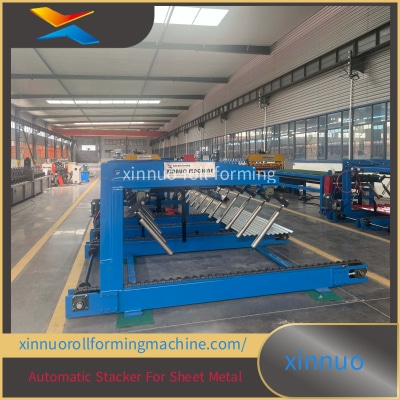

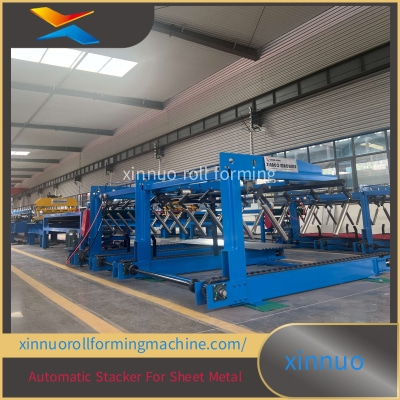

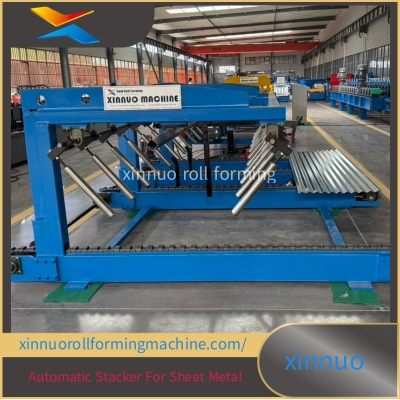

Automatic Stacker For Sheet Meta

Overview

Xinnuo’s new Automatic Stacker for Sheet Metal is a high-performance solution designed to integrate with the tail end of metal roll‑forming lines. Once panels are cut to length, they are transferred seamlessly into this stacker, where the machine handles automatic alignment and stacking on a storage platform for forklift pickup. This reduces manual labor, speeds up operations, and ensures consistent stack quality

Reddit.

Technical Specifications

Run‑out motor: 0.75 kW

Max stacking speed: 36 m/min

Max panel length capacity: up to 6 m

Max stack height (thickness): 300 mm

Max stacking weight: approximately 1 ton

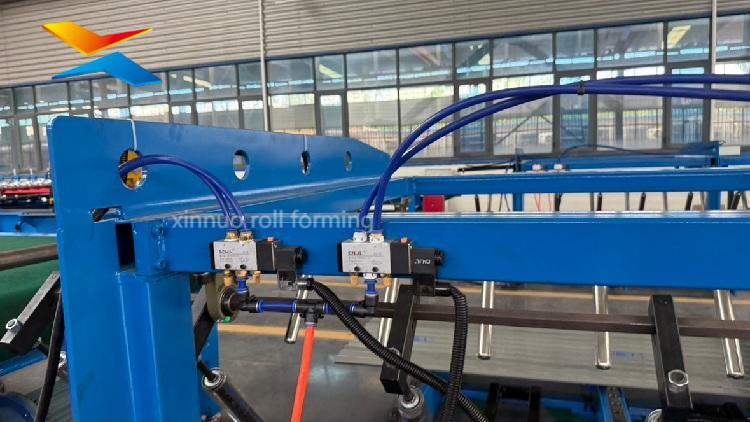

Controls: PLC-based automation with pneumatic actuation and motorized delivery system, enabling precise stacking and lateral platform shifting for neat product arrangement .

Mechanical Design & Workflow

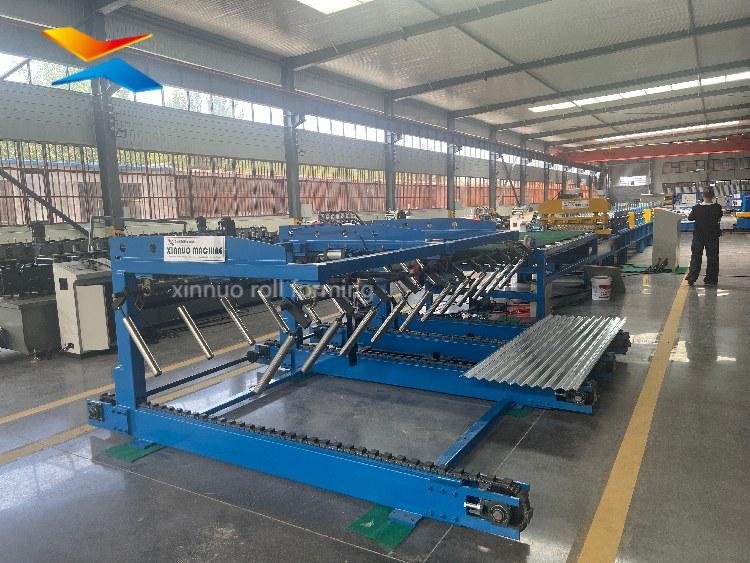

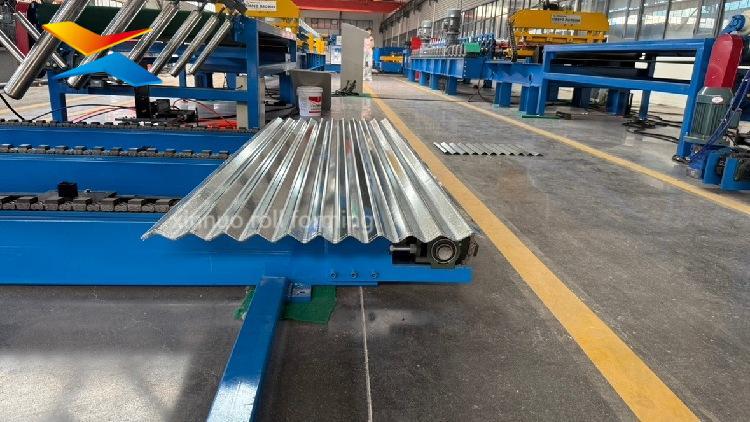

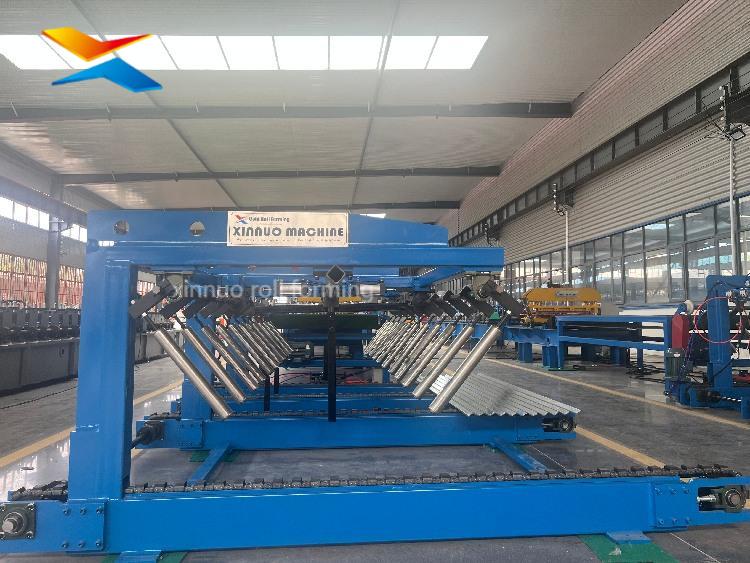

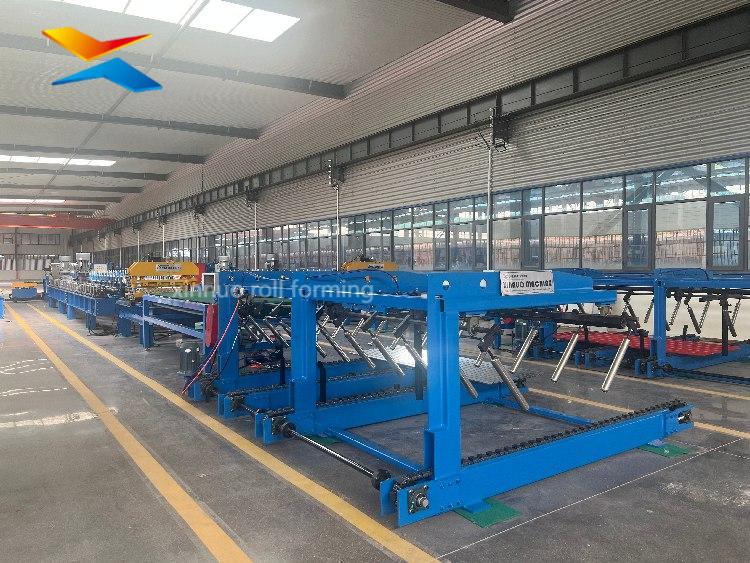

Finished panels discharge directly onto the run‑out conveyor, then are pushed by reducer‑driven rollers into the stacker. Pneumatically-powered arms descend gently to support panels, minimizing drop height (typically around 100 mm) to prevent scratches and ensure uniform stacking. After stacking a batch, the platform shifts sideways to allow forklift loading, and then returns to the stacking position—keeping production continuously running without interruption .

Customization & Integration

Xinnuo provides tailored solutions: sizing the platform height, width, or speed to meet the specific configurations of your roll forming line. It can be retrofitted to existing systems or purchased as part of a new production setup .

Benefits & Applications

This stacker saves labor and improves safety by automating panel handling. It ensures high output consistency for long panels (up to 6 m) and wide roofing sheets. It’s ideal for metal roofing, wall panels, sandwich panels, trapezoidal or corrugated profiles—especially where high throughput and reliability matter .

Quality & Support

Xinnuo offers factory-direct pricing, global export experience, and professional technical support—including customization, installation advice, and after-sales assistance .

In summary, Xinnuo’s Automatic Stacker for Sheet Metal combines precise PLC control, pneumatic stacking arms, and lateral platform shifting to deliver fast, safe, and labor-saving stacking of up to 6 m metal panels—an ideal upgrade for modern roll-forming lines.

Exhibitions

Xinnuo roll forming machinery is now widely utilized across numerous Chinese provinces and has earned international acclaim, with our equipment being successfully delivered to clients in over 130 countries throughout Asia, Europe, the Americas, Africa, and Oceania.

Our team at Xinnuo is committed to delivering attentive, end-to-end customer care. Whether you require guidance through online platforms or direct phone consultations, our knowledgeable sales staff is always ready to assist with practical, solution-oriented support.

Customer visit

With a dedicated group of more than ten experienced designers, Xinnuo operates with a full suite of modern production tools, including high-precision machinery and advanced testing instruments. Utilizing digital modeling and inspection methods, we ensure accuracy and excellence in every stage of manufacturing.

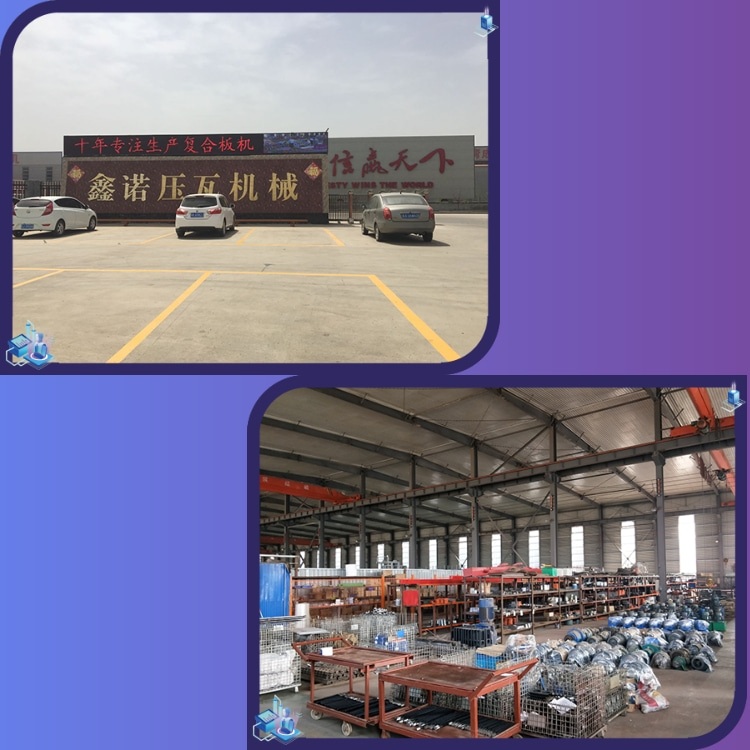

About Us
