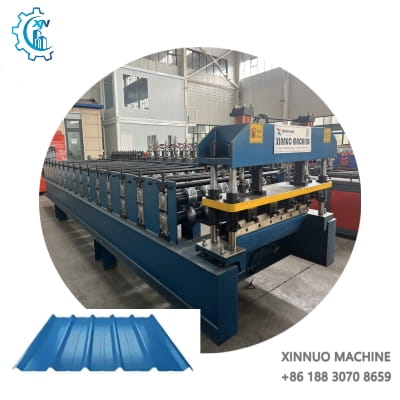

used roof panel machine for sale

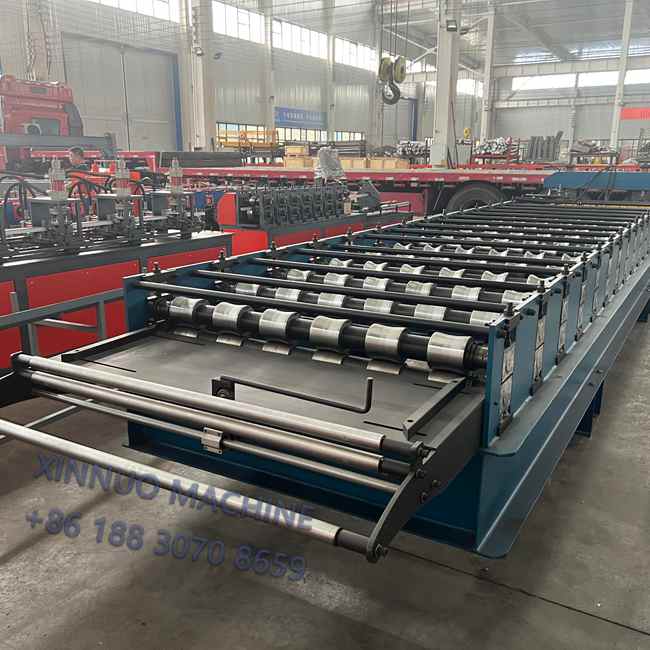

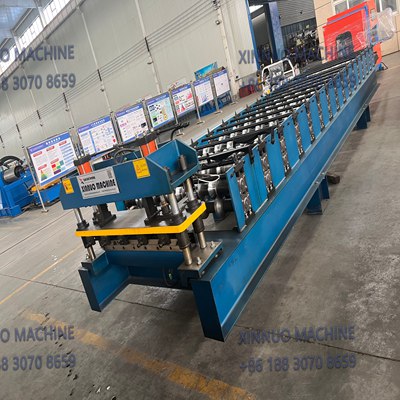

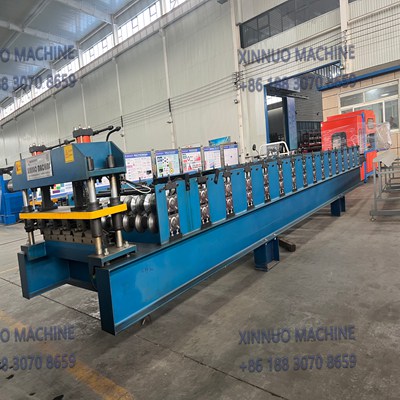

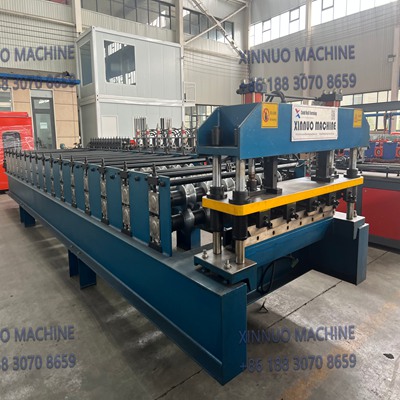

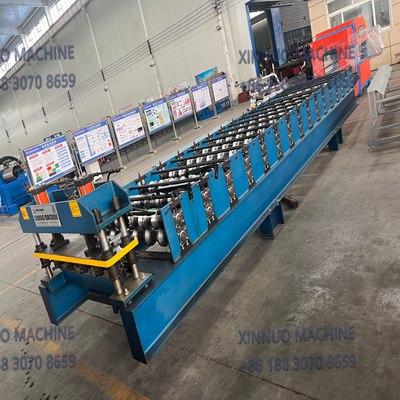

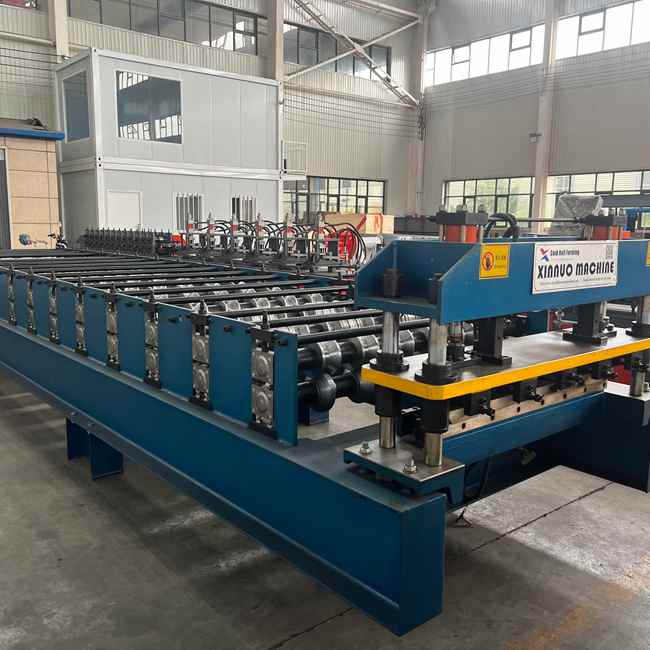

Xinnuo Roof Sheet Production Machine

1. Our professional team has designed roof sheet forming machines for clients around the world. These machines are extremely popular in the market!

2. Roof sheets are widely used in various industrial facilities, residential buildings, and public facilities, offering both aesthetically pleasing appearance and durability.

Product Introduction

1. Total length: 6.5 m

Width: 1.4 m

Height: 1.5 m

2. Motor power: 5.5 kW servo motor system, suitable speed and high precision

3. Production speed: 8-12 m

4. Profile shaft diameter: 70 mm

5. Drive method: 1-inch chain drive

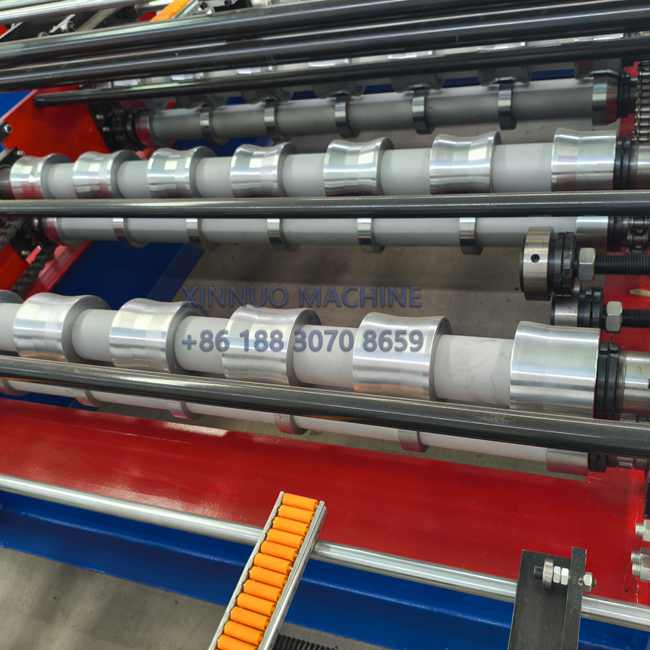

6. Profile wheel: Bearing steel, quenched and finely machined, with hard chrome plating

7. Shaping shaft: 9/11

8. Cutting blade: Cr12 steel, high-temperature quenched for excellent stability

9. Machine frame: 300# H steel (national standard)

10. Machine uprights: 14 mm

11. Sheet thickness: 0.3-0.8 mm

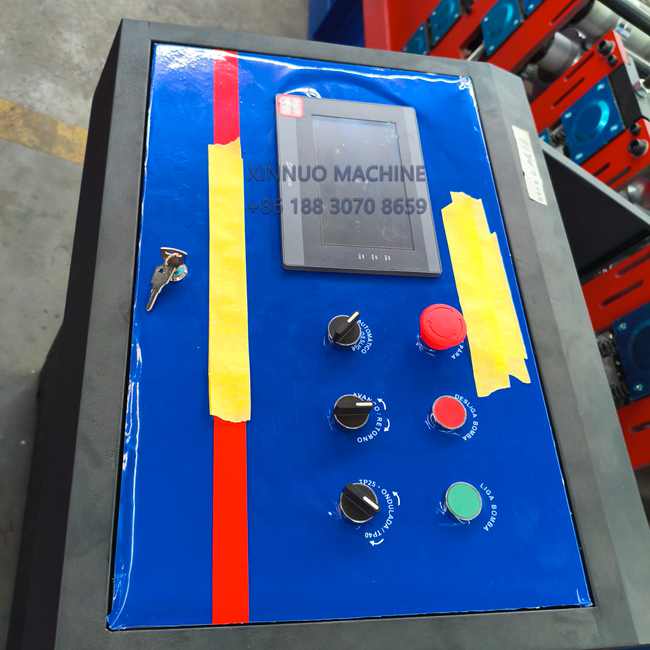

13. Fully automatic computer touch screen control system for fully automated production. Batch size, workpiece length, and quantity can all be adjusted. 14. 4 kW hydraulic pump unit.

14. Weight: 4,000 kg

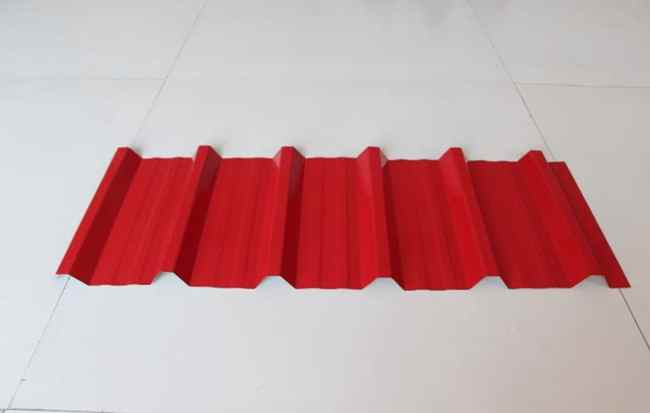

Most of our trapezoidal roof panel forming machines are sold to countries such as Azerbaijan, South Africa, France, Nigeria, Portugal, India, etc. We can make the finished products overlap with ±1mm precision control. Size can be customized to your need size

These Xinnuo machines are equipped with an automatic feeding system, high-quality rolling mills, and durable steel construction. The PLC control system allows for fully automated production, minimizing labor costs and maximizing production efficiency.

This system, customizable to meet our customers' needs, easily adapts to different sheet metal thicknesses, material types, and profile lengths. It's easy to install and safe to use.

With over 30 years of manufacturing and export experience, Xinnuo provides not only machinery but also after-sales support, technical training, and spare parts services.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide in-person training for your employees/technicians.
