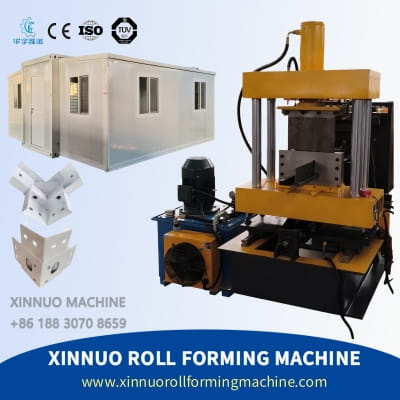

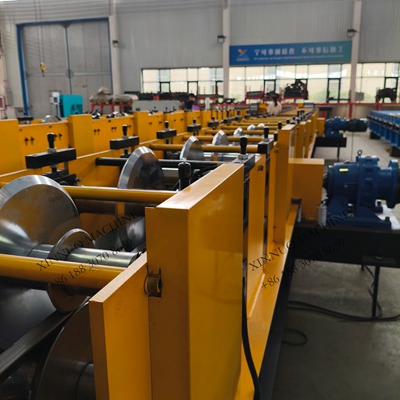

prefabricated container house frame forming machine

The core advantage of the prefabricated house frame forming machine's processing precision lies in its "accurate dimensions, minimal errors, and strong adaptability," which directly improves the construction efficiency and structural stability of prefabricated houses.

Material Thickness: 1-4 mm
Rollers: 22Groups
 Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

 Material for shaft: #45 steel after treatment

 Diameter of shaft: 80mm

 Frame panel thickness: 20mm Bottom frame: 36# H-section steel
Rolling Speed: 8-10 m / min

 Driven type: 2＂Chain

High forming consistency: Through precise control of rolling, punching, and cutting processes by the CNC system, the frame components produced in batches have uniform specifications and strong interchangeability, allowing for seamless splicing of products from different batches.

Stable structural precision: The machine maintains the straightness and perpendicularity of the steel components during processing, with a bending degree of ≤1mm/m, ensuring that the overall structure of the assembled prefabricated house is upright and free from problems such as tilting or poor sealing.

High-precision assembly compatibility: Precise component dimensions reduce on-site adjustment work, eliminating the need for additional grinding or drilling, enabling "install and use" functionality directly, improving construction efficiency while enhancing the structural stability of the house in terms of wind resistance and load-bearing capacity.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide face-to-face training for your employees/technicians.
