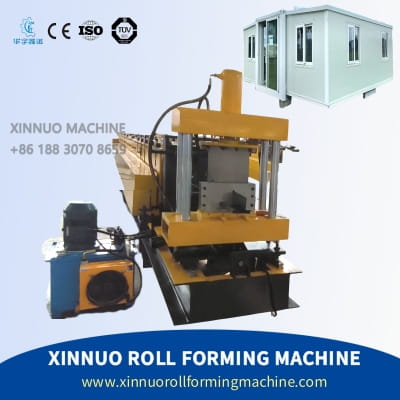

The core component of the prefabricated container housing frame forming machine is used to produce the steel frames and related components of prefabricated container houses. Thanks to its high-efficiency production and precise component manufacturing, it is suitable for various fields that rely on prefabricated container housing, such as: construction engineering, field operations and resource development, emergency relief and disaster recovery, public and commercial facilities, and specialized and customized building projects. After natural disasters such as earthquakes, floods, and typhoons, disaster areas urgently need a large number of temporary shelters, medical facilities, and disaster relief command centers. The prefabricated modular houses assembled from the frames produced by this forming machine can be quickly assembled and also possess features such as earthquake resistance and moisture resistance, serving as emergency shelters, mobile command centers, and temporary medical stations, thus facilitating rapid rescue and reconstruction efforts after disasters.
Material Thickness: 1-4 mm

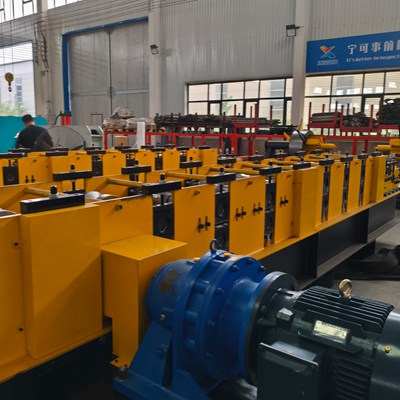

Rollers: 22Groups
Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°
Material for shaft: #45 steel after treatment
Diameter of shaft: 80mm
Frame panel thickness: 20mm Bottom frame: 36# H-section steel
Rolling Speed: 8-10 m / min
Driven type: 2＂Chain
The core advantage of the prefabricated house frame forming machine's processing precision lies in its "accurate dimensions, minimal errors, and strong adaptability," which directly improves the construction efficiency and structural stability of prefabricated houses.
Core Precision Advantages:

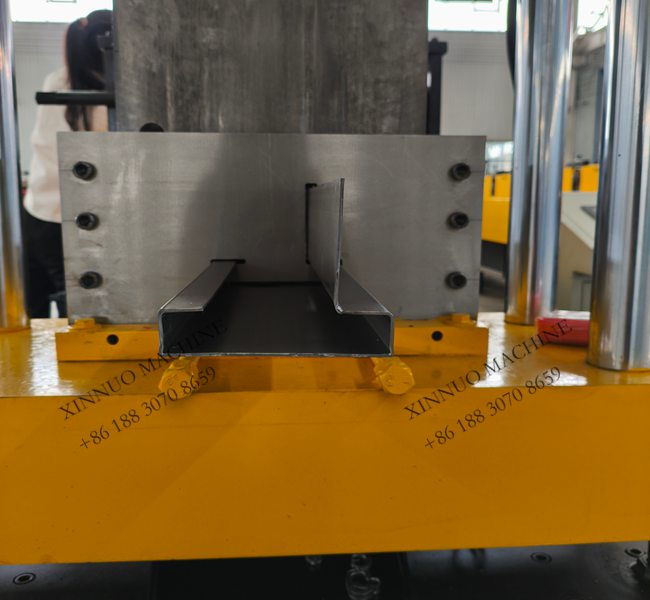

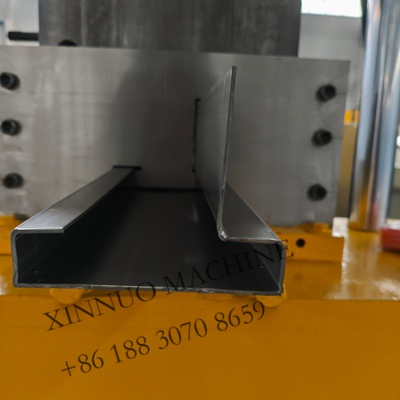

Strict dimensional tolerance control: The key dimensional tolerances of the formed steel frames (such as columns, beams, and corner pieces) can be controlled within ±0.5mm, and the hole alignment accuracy is ≤0.3mm, avoiding splicing problems caused by component deviations.
After-Sales Service
1. Warranty: Two years with lifetime technical support.
2. Delivery: Within 25 days of receiving the deposit.
3. Warranty: 24 months free repair/lifetime paid repair.
4. Installation and Training
If you visit our factory and inspect the machine, we will guide you through installation and use and provide face-to-face training for your employees/technicians.
