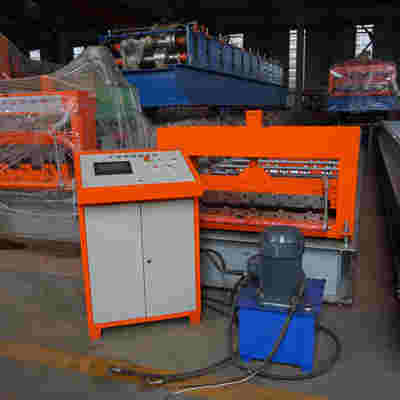

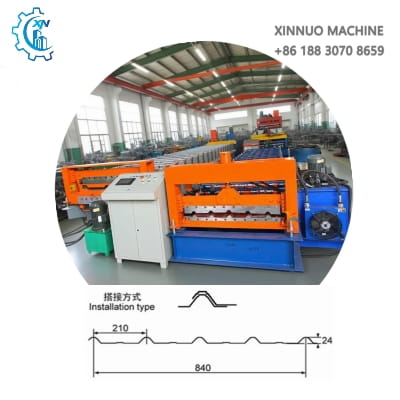

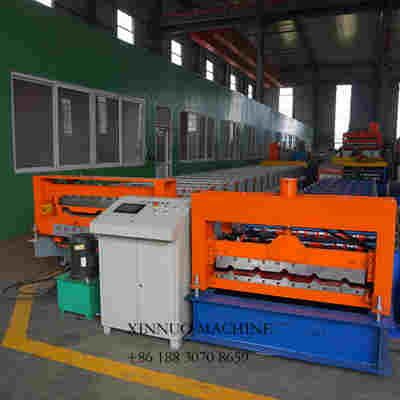

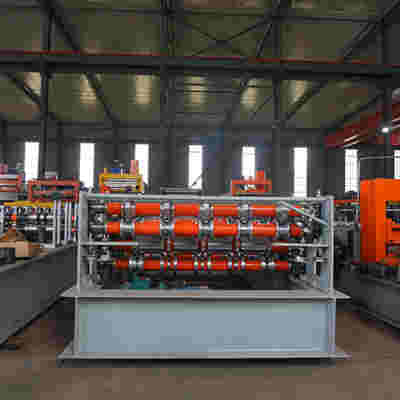

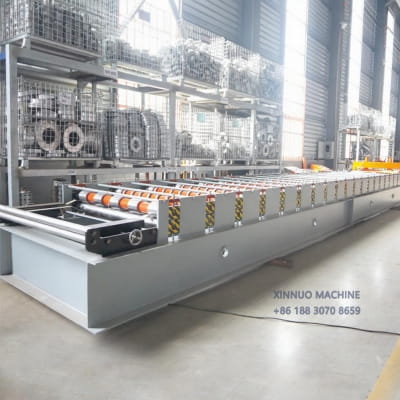

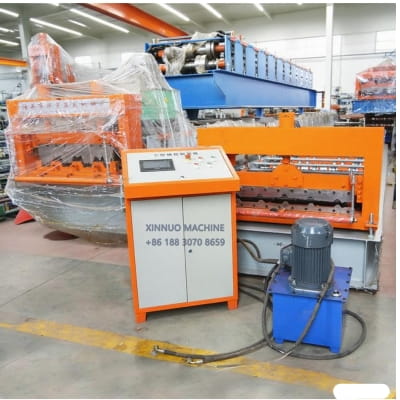

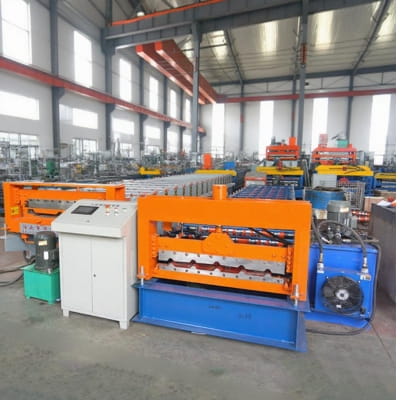

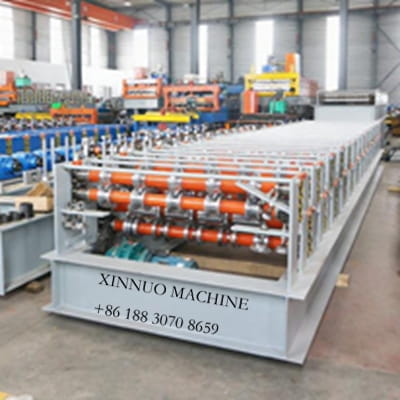

ag panel machine

The Xinnuo Ag Panel Machine is a highly efficient and durable sheet metal forming machine, providing a reliable solution for agricultural buildings, storage facilities, and industrial roofing. It rapidly converts color-coated and galvanized steel coils into high-strength, standardized agricultural panels with attractive shapes and high load-bearing capacity, making them suitable for a wide range of applications in barns, workshops, factories, and logistics warehouses.

Cylinder rows: 11-13

Dimensions: 5.8 x 1.55 x 1.6 m

Motor power: 3 kW

Pump station motor: 3 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

Cutting blade: CR12, hardened at 58°C-60°C

Cylinder diameter: Ø70 mm

Weight: Approx. 3,200 kg

Machine structure: 350H profile steel

Machining accuracy: Within 1.0 mm

Machine side panel: 16 mm

Gear wheel and endless chain: 1 inch

Voltage: 380V 50Hz, three-phase or optional

Control system: PLC (Delta)

Inverter system: Delta

Driver: Motor-driven

Touchscreen: Delta

Coil: 45# forged steel, chrome-plated

Length tolerance: +2 mm

The machine utilizes advanced roller forming technology and a fully automatic control system to ensure precise dimensions and uniform thickness for each panel, minimizing material waste and improving production efficiency. Its robust structure, stable operation, and low maintenance make it ideally suited to the demand for high-quality metal roofing panels in the Central and South American markets.

Xinnuo has over 20 years of experience in roll forming machinery manufacturing. Our factory is equipped with a professional R&D team and a comprehensive quality inspection system to ensure that every ag panel machine undergoes rigorous testing before shipment. Thanks to our superior quality and excellent service, our equipment has been exported to numerous countries and is highly trusted by our customers. Choosing Xinnuo means choosing efficient production and a long-term partnership.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide in-person training for your employees/technicians.
