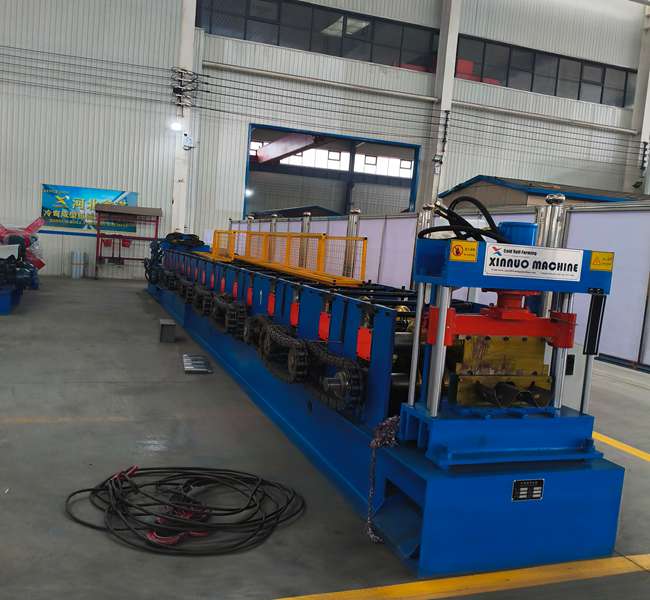

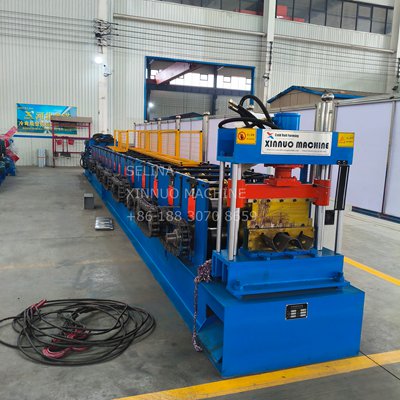

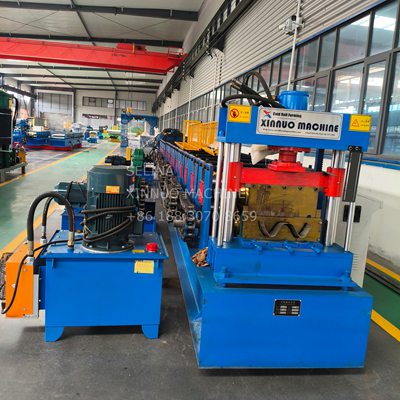

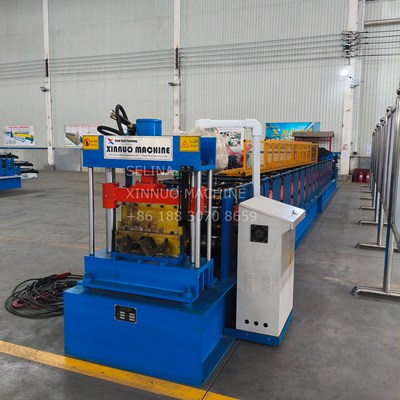

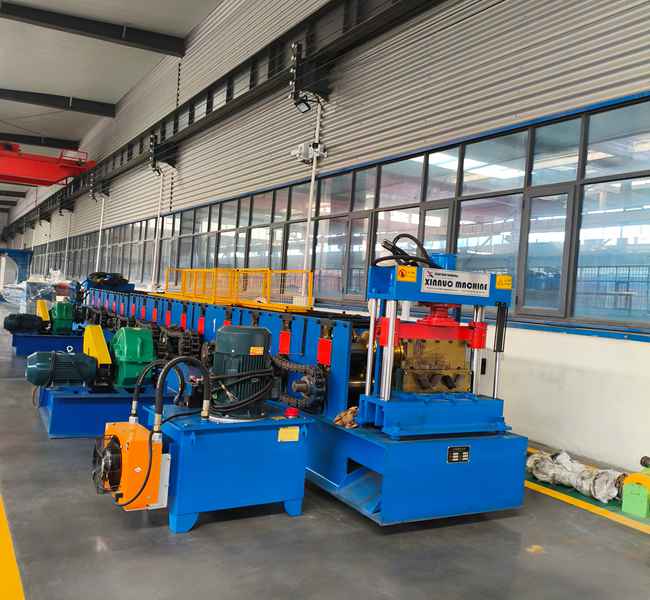

W-beam highway guardrail forming machine

A highway guardrail forming machine is a roll forming machine used to produce guardrails for the highway industry. The finished product is a guardrail. It is widely used for safety guardrails on motor vehicle lanes such as expressways, national highways, provincial roads, urban roads, and rural roads.

1. Material thickness: 2.7mm

2. Chain: 2.5 inches

3. Middle plate: 25mm

4. 15-row forming

5. 100 solid shafts

6. Dimensions: 15 meters long, 1.5 meters wide, 1.3 meters high

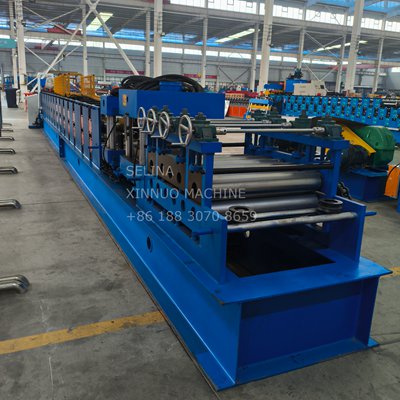

Roller Assembly

Main shaft diameter: φ105mm, 45# round steel.

Roller material: Heat treated, precision machined, hard chrome plated, mirror polished.

Roll forming: The process of forming the material coil through successive rolling stages.

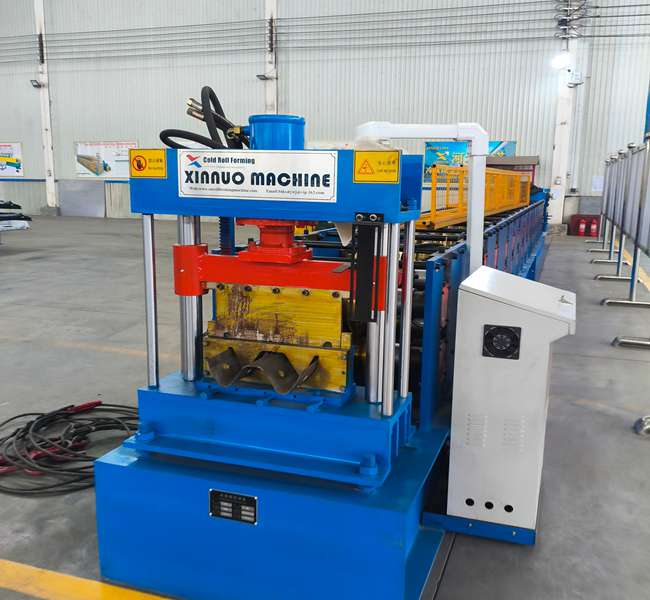

Guiding mechanism: Up and down movement for shearing, resulting in a smooth and deformation-free cut.

Cast iron blade holder: Excellent shock absorption and strong impact resistance.

Blade material: Cr12Mov, with a shearing lifespan exceeding 1 million cuts.

Rear shear frame: Q235 steel plate, rough milling and annealing treatment, followed by precision machining.

PLC: Uses Schneider high-precision PLC electronic devices.

Frequency converter: Schneider heavy-duty frequency converter, ensuring efficient and stable operation.

Control components: Schneider electronics, with long lifespan and low failure rate.

Touchscreen control: Input data to automatically complete production requirements.
