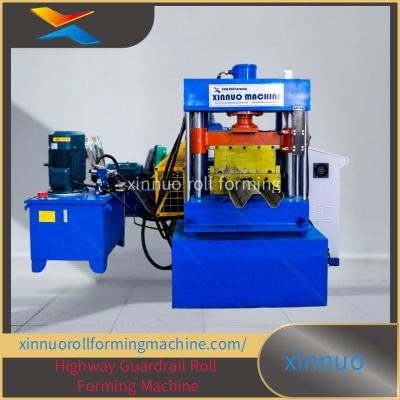

Highway Guardrail Roll Forming Machine

Xinnuo Highway Guardrail Roll Forming Machine – Reliable, Durable & High-Efficiency Solution

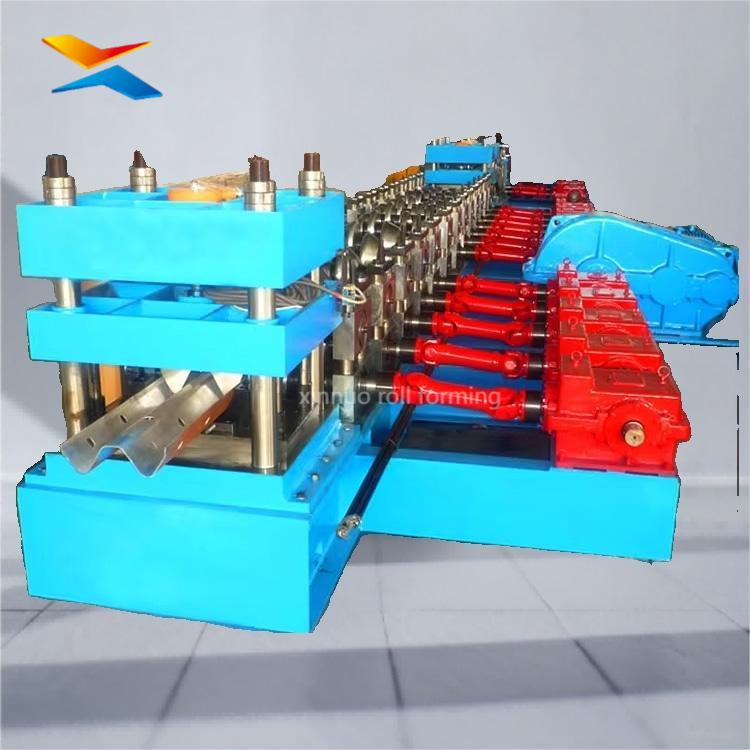

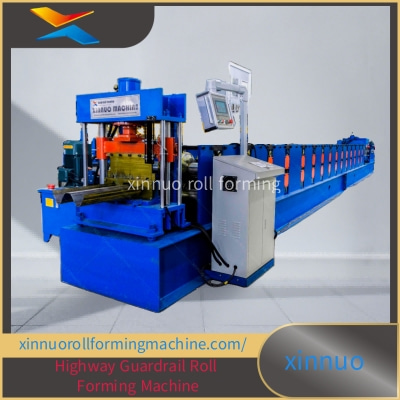

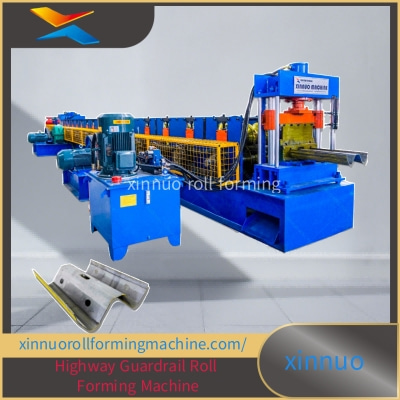

Xinnuo’s Highway Guardrail Roll Forming Machine is a robust and precision-engineered system designed for producing high-quality W-beam or thrie-beam highway barriers. Engineered to process a range of materials including color steel plate, galvanized sheet, and aluminum coils, this machine ensures versatility across various guardrail applications such as highways, bridges, and road safety systems.

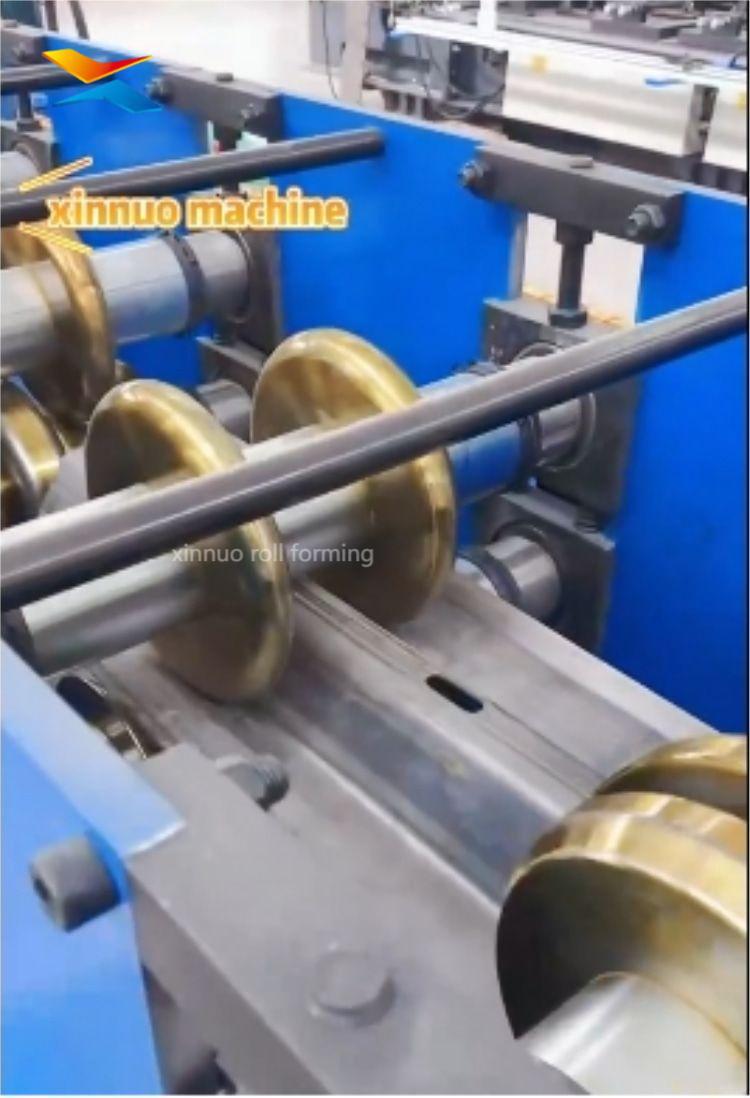

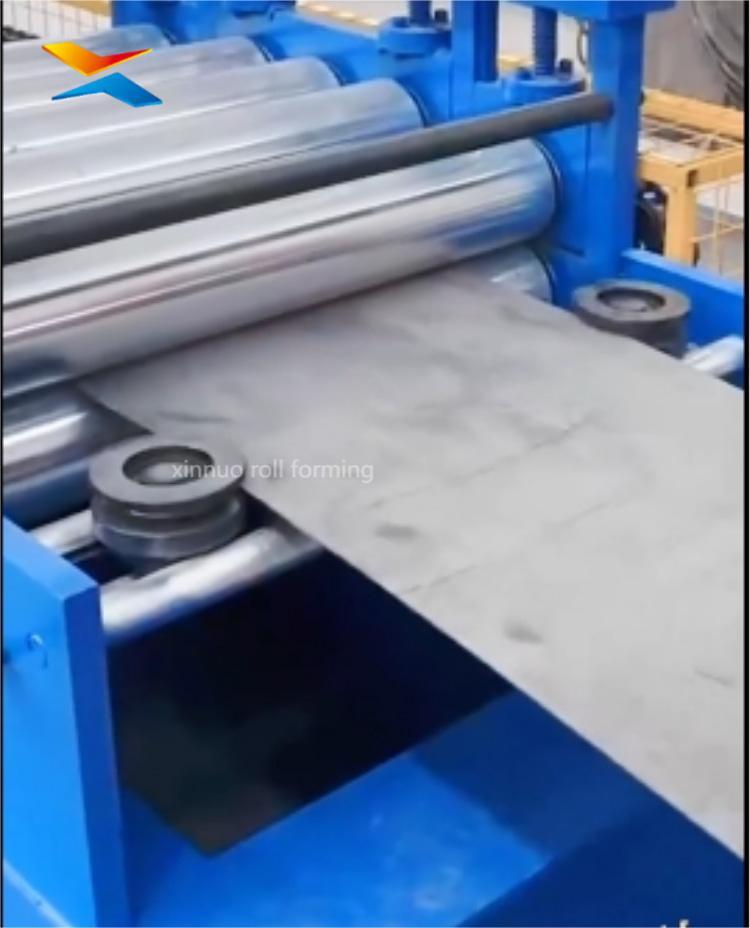

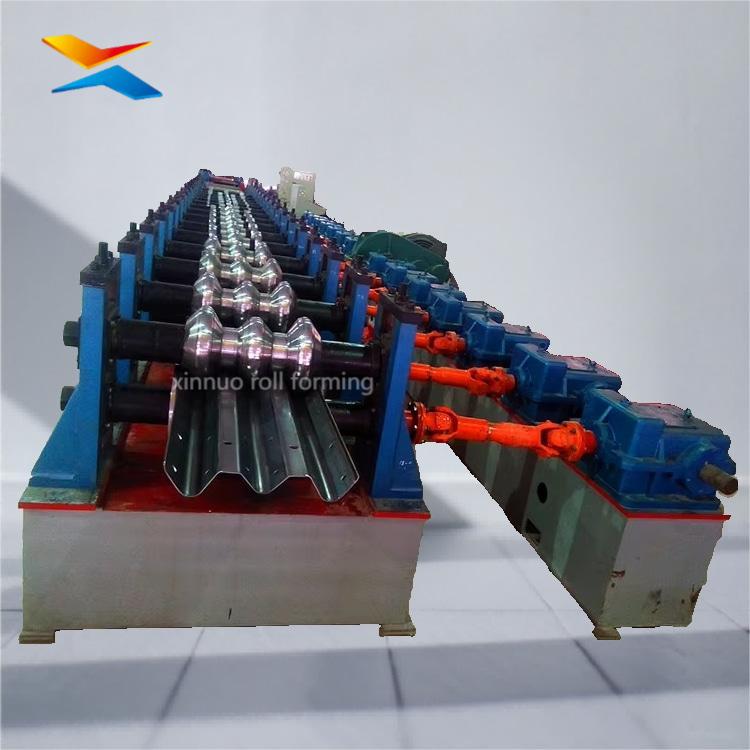

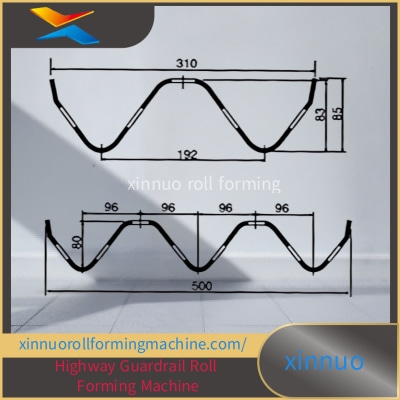

The machine features 15 forming roller stations and 7 roller leveling stations, enabling accurate shaping and straightening of metal sheets. With an effective forming width of 310 mm and the ability to process material thicknesses ranging from 1.5 to 3 mm, the equipment is highly adaptable to meet different project standards and safety regulations.

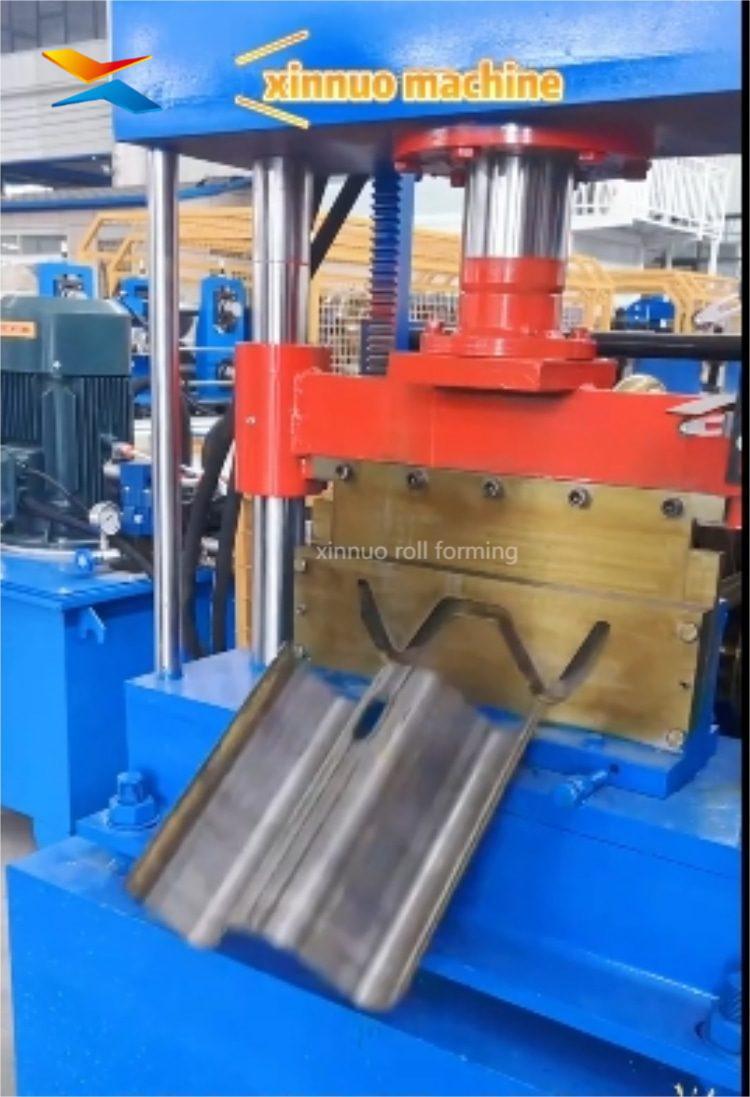

Constructed from 45# forged steel, the rollers ensure wear resistance and long service life. The 100 mm diameter shaft provides strong support and stability during high-speed operation. Cutting operations are powered by Cr12 cutting tools with a hardness treatment of 60–62°C, ensuring clean and burr-free cuts even on thicker materials.

The machine’s productivity ranges from 6 to 8 meters per minute, making it suitable for high-output production environments. It operates on a 380V, 50Hz, 3-phase electrical system, standard for industrial setups. The total power is 22 + 11 kW, divided between the main forming power and auxiliary systems such as the leveling unit (2.2 kW).

Xinnuo has reinforced the main frame using 14 mm thick steel plates and 300 mm H-beam steel for the machine body to ensure long-term structural rigidity under continuous load. With a total machine weight of approximately 6.9 tons, the unit delivers both durability and stability.

The machine's footprint is 13.5 m × 1.85 m × 1.6 m, compact for a system of its capabilities, and suitable for installation in most industrial workshops.

Why Choose Xinnuo’s Guardrail Forming Machine?

High-precision shaping and cutting

Strong frame and long lifespan components

Fast production speed with minimal waste

Compatible with multiple materials

Easy integration into existing guardrail production lines

Backed by Xinnuo’s global service and support network

If you are seeking a high-performance, reliable solution for highway safety barrier manufacturing, Xinnuo’s Highway Guardrail Roll Forming Machine offers the perfect balance of efficiency, strength, and adaptability.
