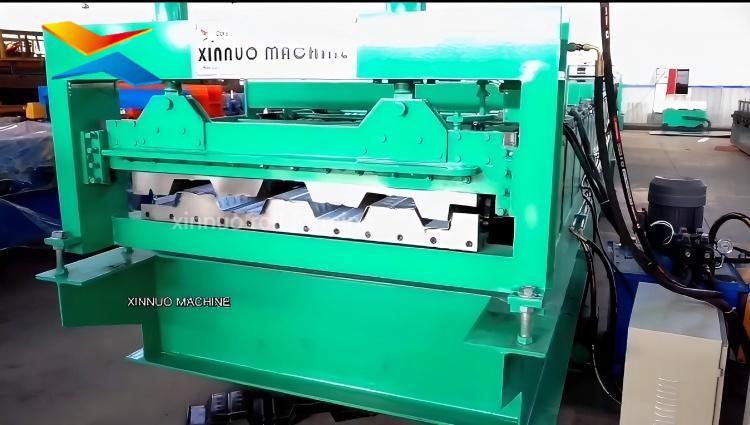

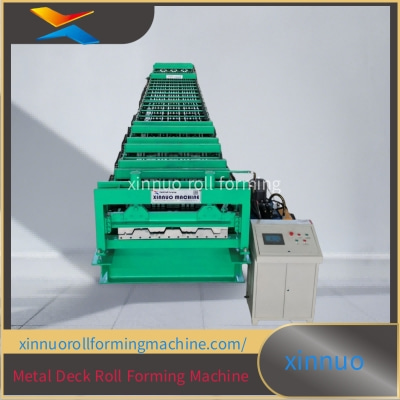

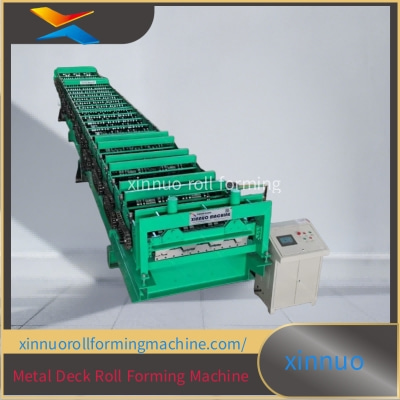

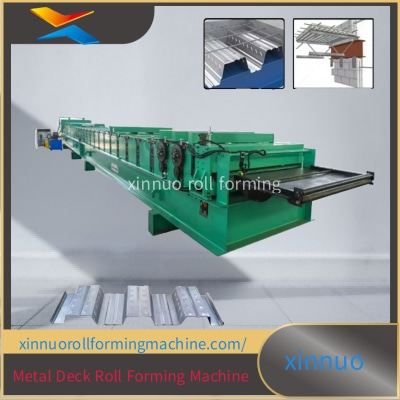

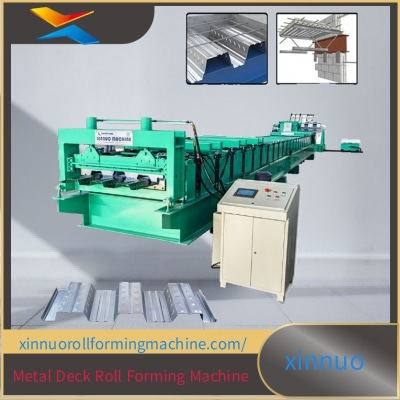

Metal Deck Roll Forming Machine

​​Xinnuo Metal Deck Roll Forming Machine – Precision Engineering for Modern Construction​​

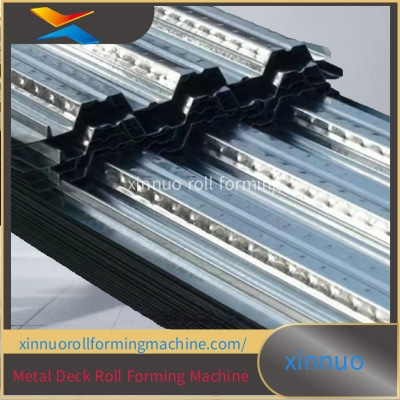

Xinnuo's ​​Metal Deck Roll Forming Machine​​ represents the pinnacle of automated roofing and wall panel production, combining industrial-grade durability with smart manufacturing efficiency. Designed for contractors and manufacturers seeking high-output solutions, this system transforms PPGI/GI cold steel coils into precision-profiled decking with exceptional consistency.

​​Technical Specifications & Industrial Advantages​​

1. ​​Multi-Industry Application​​

   • ​​Primary Sectors​​: Construction (commercial/residential roofing), prefabricated buildings, industrial facilities

   • ​​Secondary Markets​​: Machinery workshops, building material distributors, hotel renovation projects

2. ​​Advanced Material Processing​​

   • ​​Material Compatibility​​: Handles ​​PPGI (pre-painted galvanized iron)​​ and ​​cold-rolled steel coils​​

   • ​​Thickness Range​​: 0.5mm–1.2mm with ±0.03mm tolerance control

   • ​​Feeding Flexibility​​: Adjustable width from ​​914mm to 1450mm​​ (custom dies available)

3. ​​High-Velocity Production​​

   • ​​Throughput​​: 10–16 linear meters per minute (20% faster than industry average)

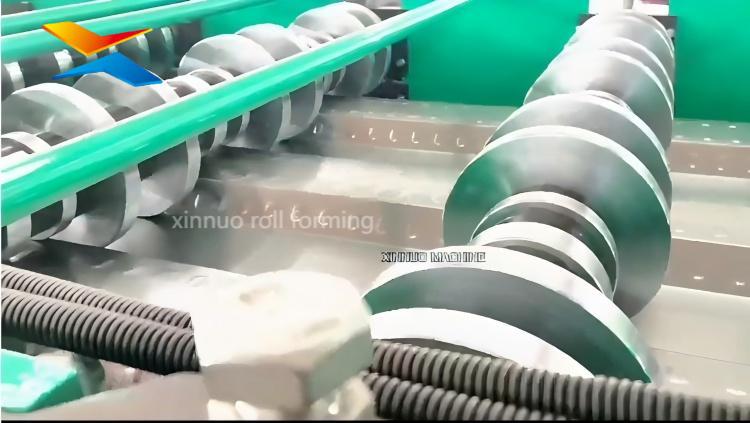

   • ​​Roll Former Configuration​​: 16mm thick reinforced side panels with 12-stage forming stations

4. ​​Smart Operational Features​​

   • ​​PLC Control System​​: Enables preset profile memory and fault diagnostics

   • ​​Automated Cutting​​: Synchronized hydraulic shear with ±1mm length accuracy

5. ​​Heavy-Duty Construction​​

   • ​​Frame Structure​​: Laser-cut 450MPa high-tensile steel

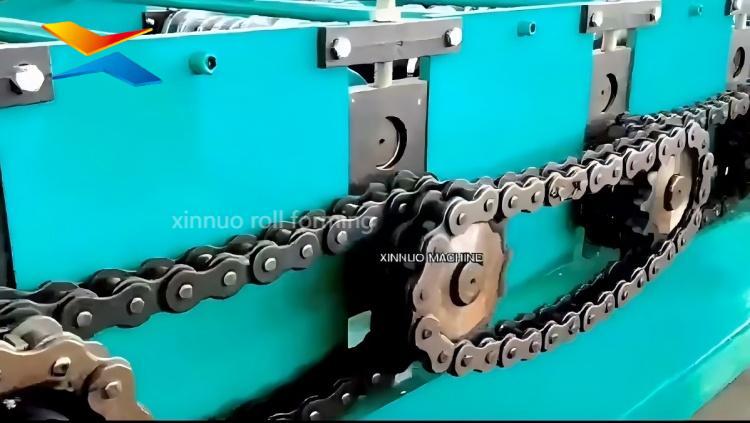

   • ​​Drive System​​: 7.5kW servo motor with helical gear reducer (60dB noise max)

6. ​​Quality Assurance​​

   • ​​In-Process Monitoring​​: Real-time thickness gauging sensors

   • ​​Post-Production Verification​​: Includes test reports + HD video documentation

​​Why This Machine Outperforms Competitors?​​

• ​​Dual Warranty Protection​​: 12-month coverage on both machine and core components (motor, PLC, hydraulic pump)

• ​​Energy-Efficient Design​​: 380V/50Hz operation with 15% lower power consumption vs conventional models

• ​​Future-Ready Customization​​: Retrofit options for IoT connectivity and production data tracking

​​End-to-End Production Support​​

Xinnuo provides:

• ​​On-Site Training​​: 3-day operator certification program

• ​​Digital Resources​​: 3D assembly animations + multilingual operation manuals

• ​​Just-in-Time Spares​​: Gearbox/punch tool inventories at regional hubs

Technical Service Highlights​​

1. ​​Pre-Shipment Verification​​

   • Material sample testing with client-specified coatings

   • Factory Acceptance Test (FAT) with witnessed trial runs

2. ​​Post-Installation Support​​

   • Remote troubleshooting via augmented reality (AR) glasses

   • Predictive maintenance scheduling through cloud platform

Project Case Studies​​

• ​​Saudi Arabia​​: Installed 3 units for modular hospital roofing (2023)

• ​​Vietnam​​: High-volume production of 1.0mm corrugated wall panels

• ​​Germany​​: CE-certified system for energy-efficient building envelopes

Conclusion​​

More than just a roll former, Xinnuo's solution is a ​​complete metal deck manufacturing ecosystem​​. Its combination of ​​German-engineered precision​​ and ​​Chinese manufacturing scalability​​ makes it the optimal choice for global contractors. Request your personalized configuration proposal today.
