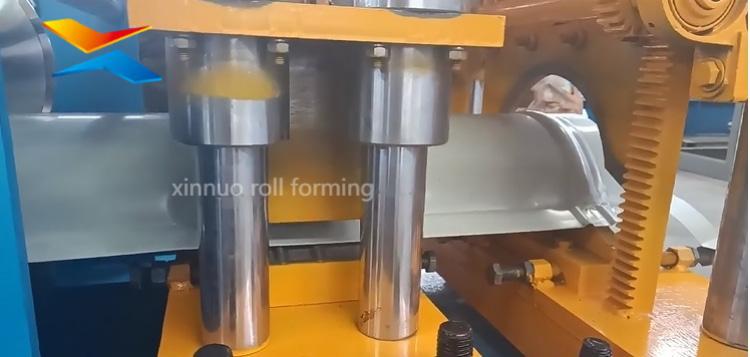

Ridge Cap Roll Forming Machine

Ridge Cap Roll Forming Machine — Tailored Precision for Roof Ridge Finishing

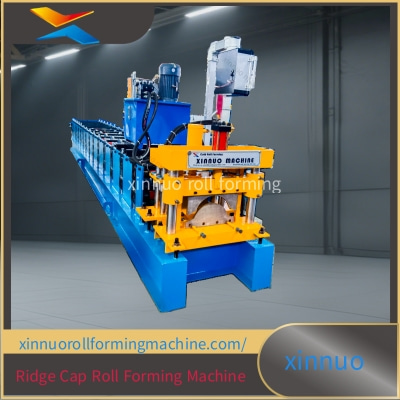

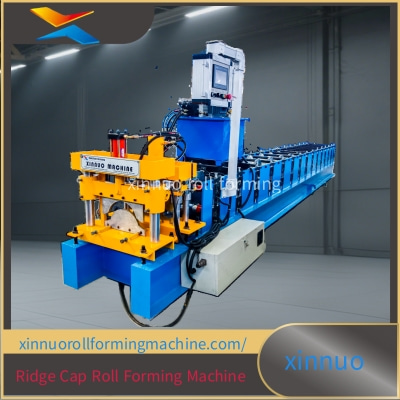

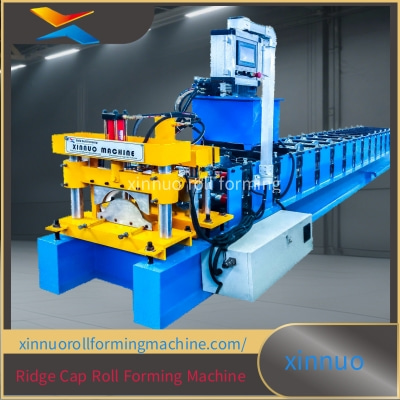

The Ridge Cap Roll Forming Machine is purpose-built for producing high-quality metal ridge caps, the essential finishing components used at the apex of pitched roofs. Designed with a specialized roll forming system, this machine ensures smooth bends, consistent angles, and perfect alignment to match various roofing sheet profiles like trapezoidal, corrugated, or tile designs.

Whether for residential, commercial, or industrial roofing, the ridge cap plays a crucial role in sealing roof joints and enhancing structural aesthetics. Our machine enables mass production of ridge covers that are not only dimensionally precise but also weather-resistant and visually appealing.

Specialized Design for a Specialized Purpose

Unlike flat panel roll forming machines, the ridge cap machine incorporates a unique forming structure to handle angular profiles with a peak in the center. The forming system is pre-configured based on your ridge angle (commonly 90°, 105°, 120°, or custom), ensuring compatibility with your main roofing panels.

The standard production line includes:

• Manual or hydraulic decoiler (3–5 tons)

• Feeding and guiding unit

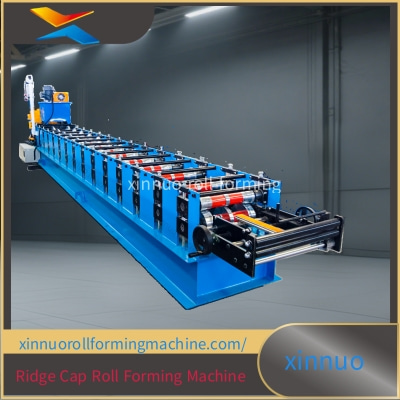

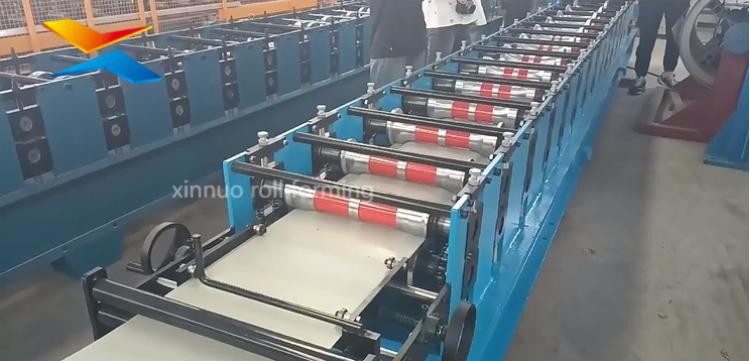

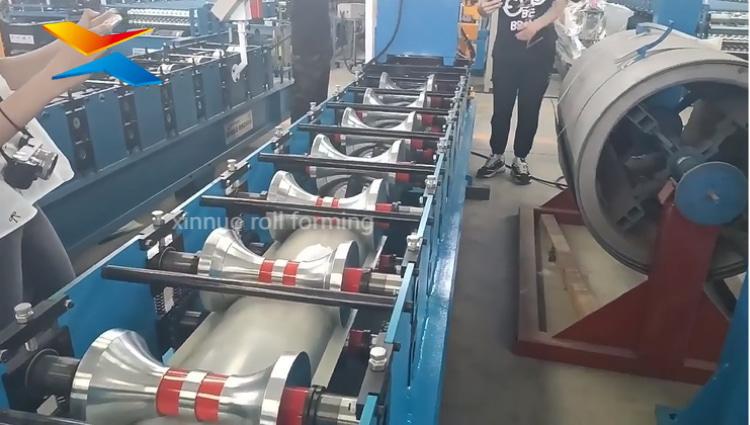

• Roll forming station with 12–18 forming steps

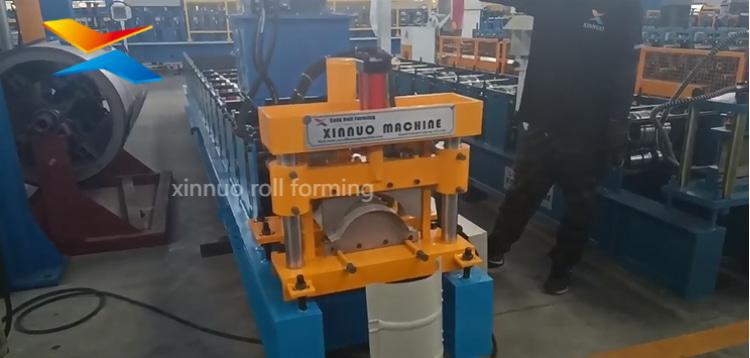

• Hydraulic cutting system (custom die set for ridge shape)

• Run-out table or optional stacker

Why Choose Our Ridge Cap Machine?

• Precision Forming for Critical Fit
  Ridge caps must align seamlessly with roofing panels — our roll forming dies are custom-designed based on your profile drawings to ensure a snug, wind-resistant fit.

• Flexible Profile Customization
  We support a variety of ridge styles, including plain, vented, crimped, or tile-shaped ridge caps, with adjustable width and pitch.

• Robust Frame & Durable Rollers
  Built with a heavy-duty welded base and high-strength forming rollers (45# steel, hard chrome coated), the machine is ideal for long-term, high-volume production.

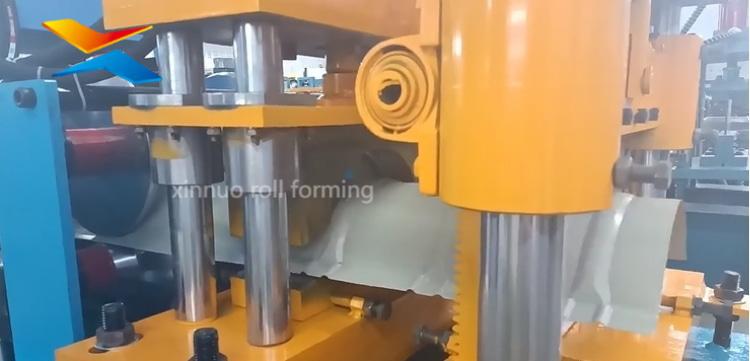

• Efficient & Clean Hydraulic Cutting
  The post-cutting system is synchronized with encoder control, allowing length tolerance within ±1mm, and producing burr-free ends for clean installation.

• Smart Control System
  Equipped with a PLC + HMI interface, operators can easily set length, batch quantity, and profile parameters. Auto-stop and emergency safety features are standard.

Applications & End Use

The ridge caps produced by this machine are ideal for:

• Corrugated sheet roofing systems

• Trapezoidal panel systems

• Color steel tile roofing

• Prefab housing and steel structure projects

They provide both weather sealing and decorative finishing, making them a critical component in any roofing solution.

Optional Upgrades

• Pneumatic or servo punching for vent holes

• Crimping device for curved ridge caps

• Automatic stacker

• Fast-change roll set for multiple profiles

The Ridge Cap Roll Forming Machine is not just an accessory production unit—it’s a value-adding system that completes your roofing line with aesthetic and structural precision. If you're looking to streamline your ridge cover production with speed, consistency, and customizability, this machine is your ideal choice.
