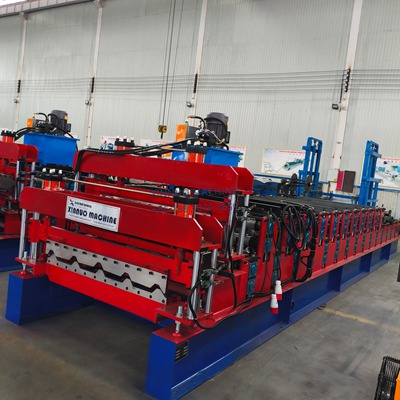

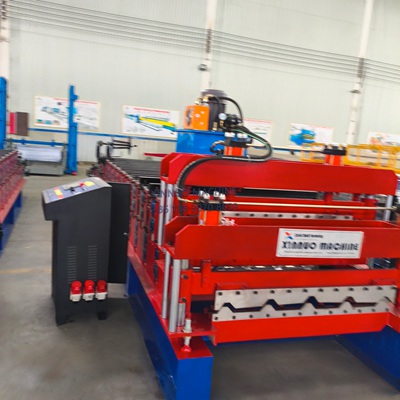

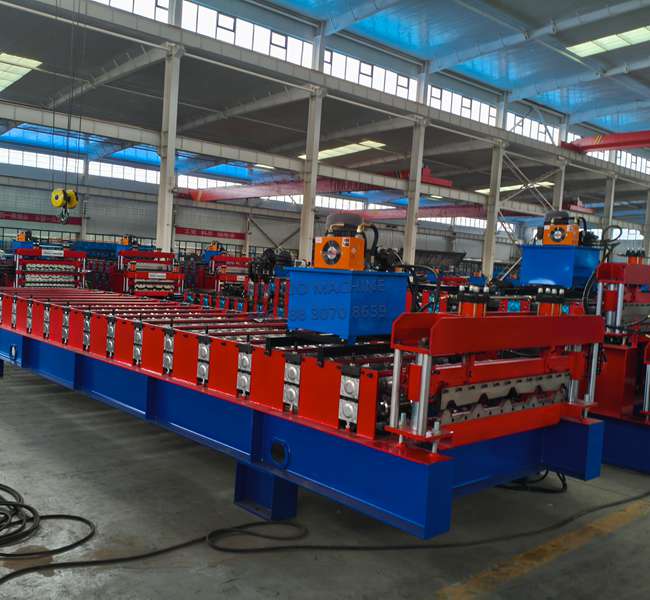

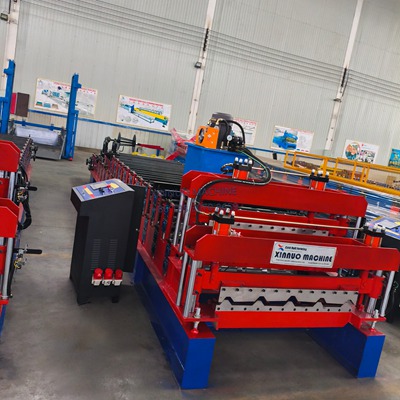

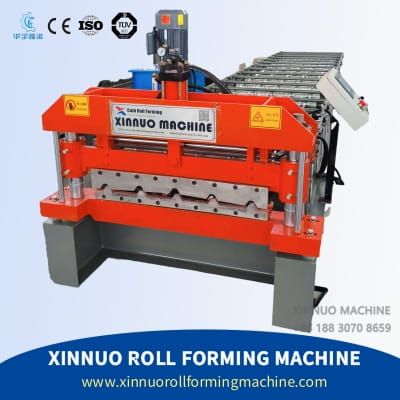

AG Roof Panel Production Machine

1. Our professional team designed an for AG panel forming machine client. This machine has become very popular in the market!

2. Roof panels are widely used in various industrial facilities, residential buildings, and utility structures, offering an attractive appearance and durability.

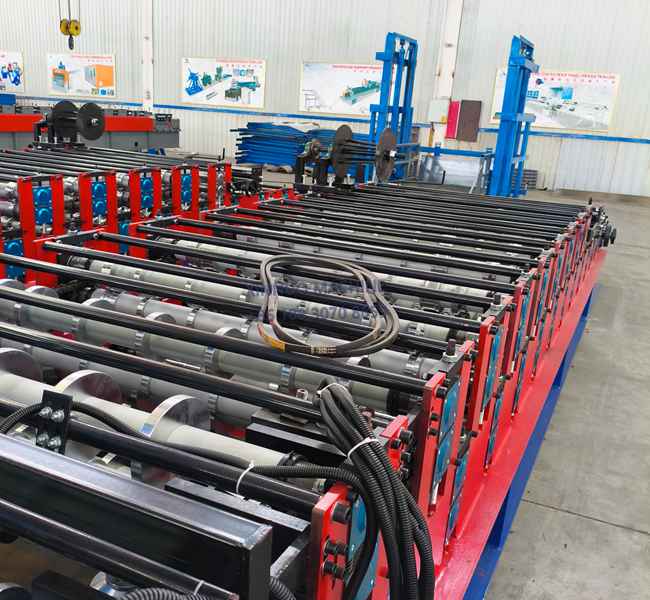

Cylinder: 18 rows

Dimensions: 9.0 x 1.7 x 1.8 meters

Motor power: 5.5 kW

Pump station motor: 4 kW, Lichao brand

Sheet thickness: 0.3-0.8 mm

Production speed: 10-15 m/min

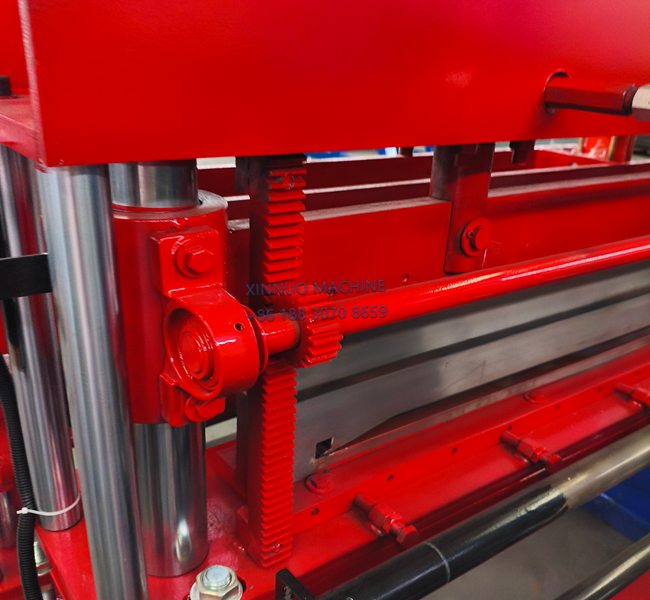

Cutting blade: Chrome-nickel steel, hardened at 58°C-60°C

Cylinder diameter: 70 mm

Weight: Approx. 4,800 kg

Machine structure: 350H beam

Machining accuracy: Within 1.0 mm

Machine side plates: 16 mm

Sprocket and endless chain: 1 inch

Voltage: 380 V, 50 Hz, three-phase or according to customer specifications

Control system: PLC (Delta)

Frequency system: Delta

Touch screen, motor Drive

Rolled material: Chrome-plated 45# carburized steel

Length tolerance: ±2 mm

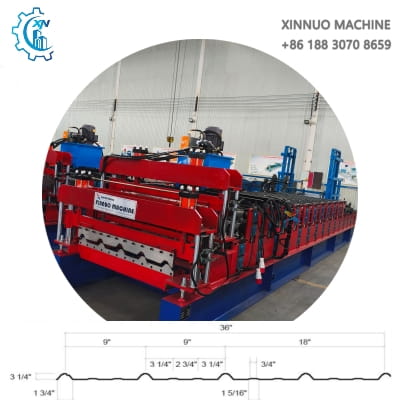

Trapezoidal AG panel metal roof forming machines can be used with corrugated sheets, IBR sheets, or glazed tiles. Roof tiles are aesthetically pleasing and durable, and are widely used in various industrial facilities, civil buildings, and auxiliary roofing products.

The Xinnuo AG PANEL forming machine is advanced equipment that has earned a high reputation in the industry for its excellent performance and wide range of applications.

Our equipment is meticulously designed, with all key components, such as motors, reducers, and bearings, sourced from reputable brands. This ensures stable operation and significantly reduces equipment failure rates. Equipped with an advanced PLC control system, the machine precisely controls the forming process, ensuring high dimensional accuracy and consistent shape for trapezoidal panels. The machine's intuitive operator panel layout and clear button layout create a user-friendly design, allowing the operator to easily access various operations and settings.

After-Sales Service

1. Warranty: Two years with lifetime technical support.

2. Delivery: Within 25 days of receiving the deposit.

3. Warranty: 24 months free repair/lifetime paid repair.

4. Installation and Training

If you visit our factory and inspect the machine, we will guide you through installation and use and provide face-to-face training for your employees/technicians.
