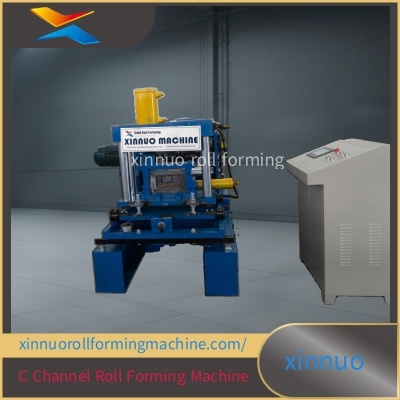

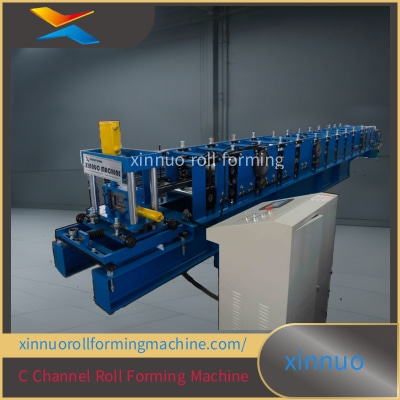

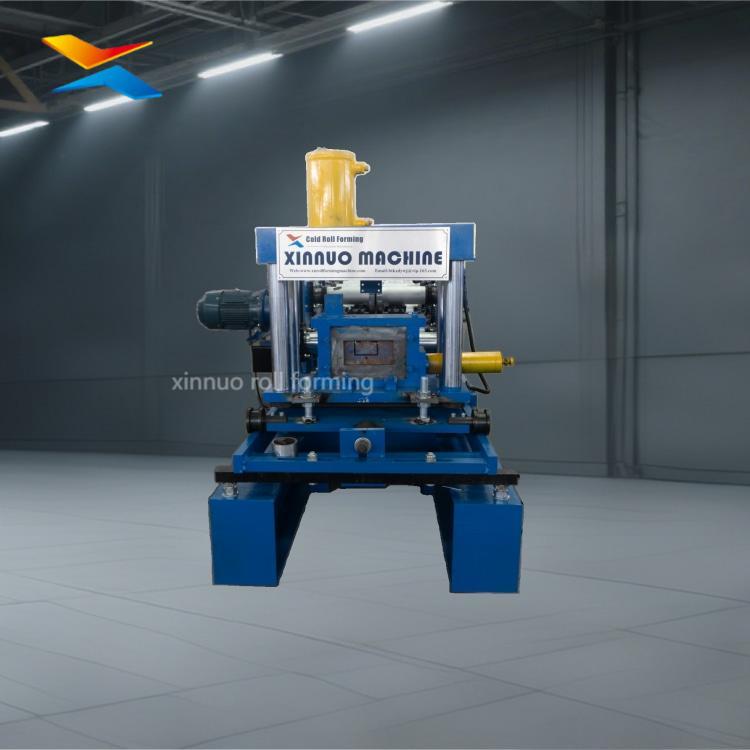

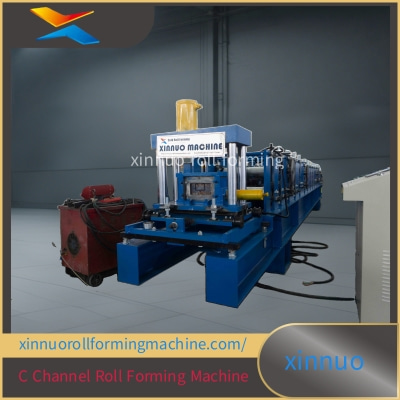

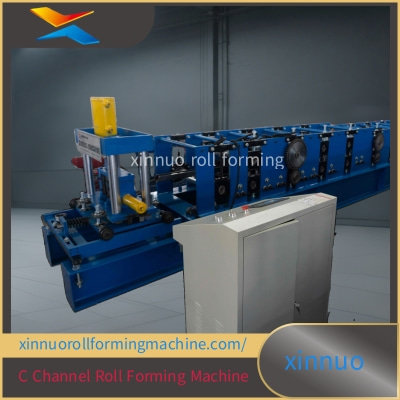

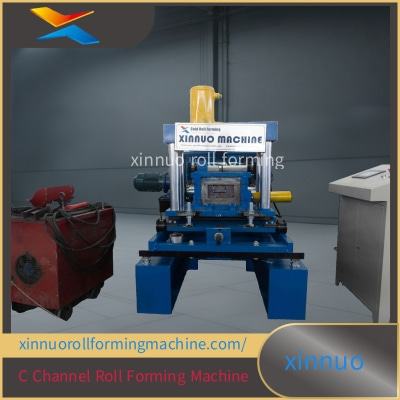

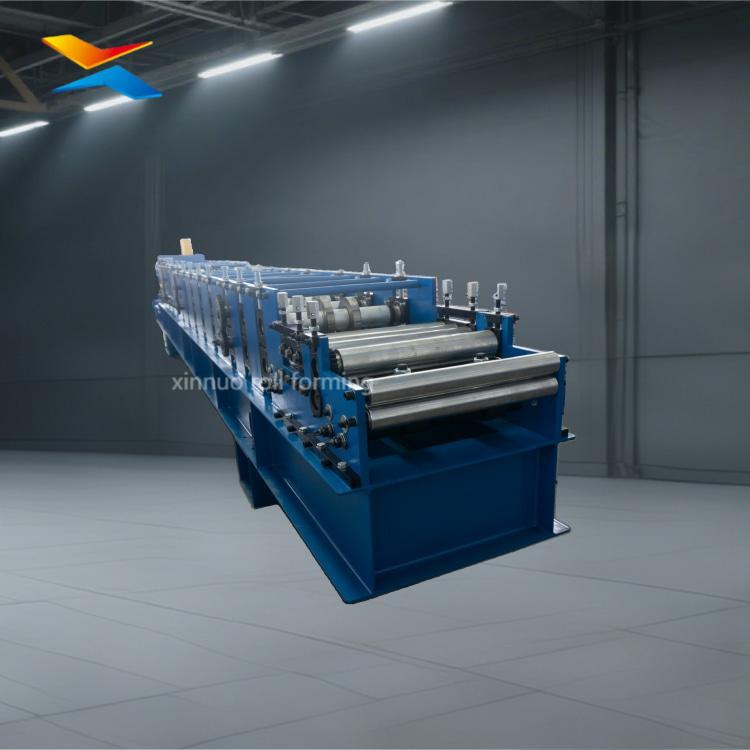

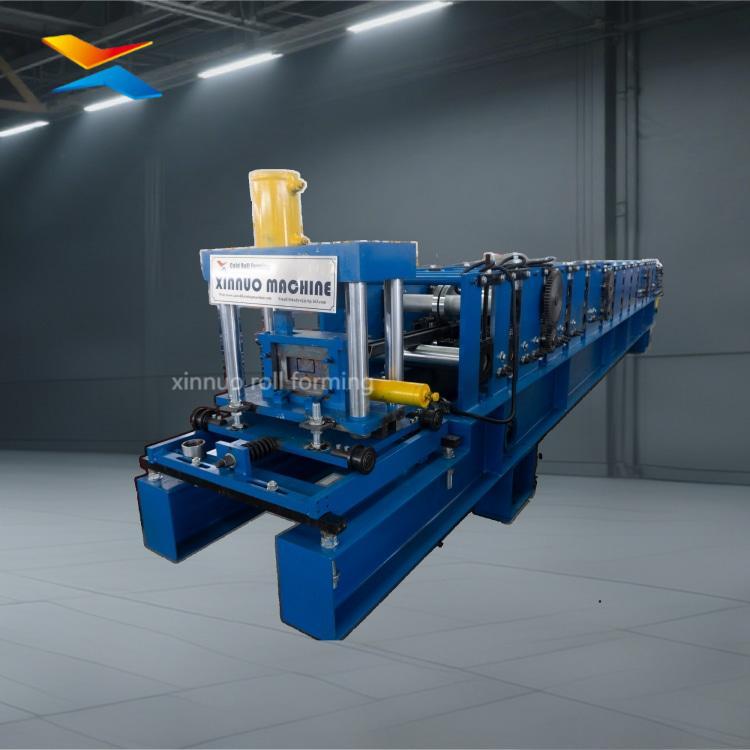

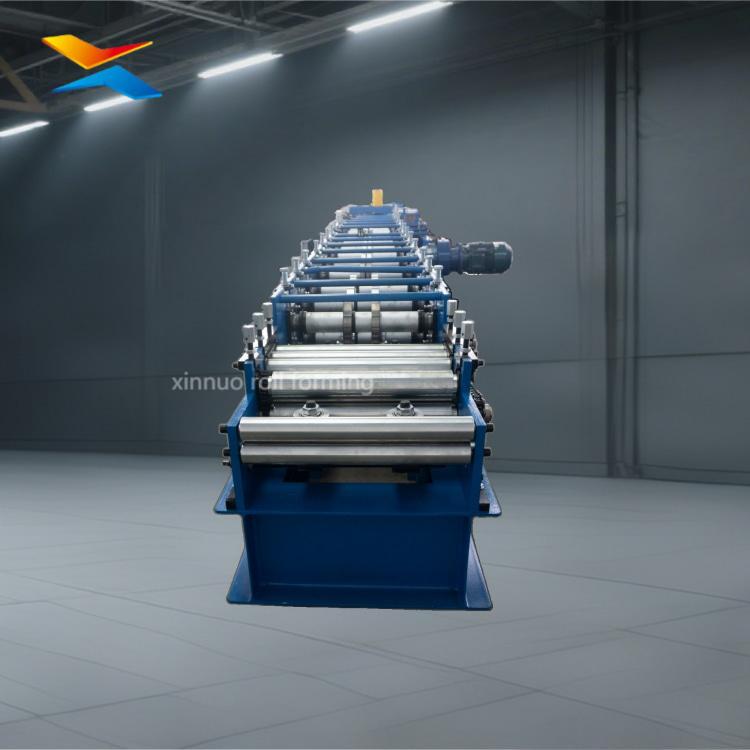

C Channel Roll Forming Machine

C Channel Roll Forming Machine — Precision Cold Forming for Structural Excellence

The C Channel Roll Forming Machine is a dedicated solution for producing high-strength, dimensionally accurate C-shaped steel profiles, widely used in modern construction frameworks, support systems, and industrial shelving. Designed with robust engineering and CNC-integrated controls, this machine offers unmatched stability, consistency, and production speed in the cold roll forming segment.

Whether you are manufacturing ceiling channels, cable trays, light steel frames, or solar structure components, this machine delivers straight and clean C-sections with optimized throughput and minimal material waste.

Streamlined Engineering, Robust Output

The forming line consists of a decoiler, leveling unit, precision roll forming station, hydraulic cutting system, and an output table. The roll forming station is equipped with a gearbox drive or chain transmission, depending on required strength and customization needs. High-grade steel rollers are hardened and polished to ensure precise profiling without surface damage.

Thanks to its modular configuration, the machine allows for size adjustment through spacer changes or automatic width control, depending on the selected design.

Highlighted Features:

• Accurate Forming, Clean Bends
  With a carefully calculated roller pass design and CNC-machined shafts, the system guarantees exact shaping with no edge cracking or deformation.

• Adjustable Sizes for Versatile Applications
  Supports a wide range of C profile dimensions, typically from C41 to C200, with thickness ranging from 1.0mm to 2.5mm, suitable for various structural needs.

• Efficient Cutting System
  The hydraulic post-cutting unit ensures burr-free edges and eliminates the need for additional trimming. Lengths are measured with an encoder control system, allowing accurate repeat lengths during high-speed operation.

• Durable and Low-Maintenance Design
  Built with a solid steel frame, industrial-grade bearings, and automatic lubrication options, the machine is designed for extended, low-maintenance service life.

• User-Friendly Operation
  Operated through a PLC + HMI system (commonly Siemens or Delta), allowing users to set length, quantity, and profile adjustments with a few simple taps. Alarm systems and counters are also integrated for safer, smarter production.

Industrial Applications:

The C channel profiles made by this roll forming machine are widely used in:

• Drywall and partition structures

• Electrical conduit supports

• Solar panel mounting systems

• Light steel frame buildings

• Cable tray and racking systems

Optional Extensions:

• Manual or automatic decoiler (3T–5T)

• Servo feeding and punching systems

• Flying cut or rotary cut systems for high-speed lines

• Hydraulic stacker or automatic output conveyors

Your Reliable Partner in Structural Profiling

The C Channel Roll Forming Machine combines mechanical precision with smart automation, offering a cost-effective yet powerful solution for C profile production. Whether you operate a metal fabrication shop or a large-scale construction component line, this machine will boost your productivity with consistent output and minimal downtime.
